12.1" Dual-Ethernet HMI with CODESYS
$1,495.00
Experience seamless multitasking with the cMT2128X, and activated CODESYS license, as it effortlessly handles multiple tasks. Unlock the power of remote access, IIoT functionality, and an advanced feature set for your application. Enhance its capabilities by pairing with our remote IO for soft PLC functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT2128X-CODESYS and other models.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- Connect to +400 PLCs and Controllers.
- US-based technical support.
Share the product:
cMT2128X-CODESYS Highlights
- Activated CODESYS license included
- WVA LCD with 1024 x 768 Resolution
- Quad-Core RISC, 4 GB Flash Memory, 1 GB RAM
- 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT, Sparkplug B, WebView, VNC
- Add an EasyAccess 2.0 license for remote access
- Pair with our remote IO for soft PLC functionality
- UNBRANDED
System
| CPU | Quad-Core RISC |
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |
I/O Ports
| Ethernet/LAN | 1 x 10/100 Base-T RJ-45, 1 x GbE RJ-45 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | 1 x Micro SD |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| COM Port | 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 |
| HDMI Port | N/A |
| Video Input | N/A |
| Serial Ports | 2 |
Display
| Display Size | 12.1" WVA LCD |
| Resolution | 1024 X 768 |
| Luminance (cd/m^2) | 600 |
| Contrast Ratio | 1000:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.7 M |
| Display Type | 12.1” WVA LCD |
| Viewing Angle (H°/V°) | 178/178 |
| Size (W x H) | 9.70 x 7.30 inches [246.5 x 185.3. mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
Electrical
| Input Power | 28.8 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1.2 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey/silver |
| PCB Coating | Yes |
| Dimensions WxHxD | 12.49 x 9.57 x 1.62 inches [317 x 243 x 41 mm] |
| Panel Cutout (inches) [mm] | 12.01 x 9.09 [305 x 231] |
| Weight | Approx. 3.75 lbs. [1.7 kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Operating Temperature | 32° ~ 131°F (0° ~ 55°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
Unboxing a cMT2128X2
Watch as we unbox, show accessories & I/O ports on the HMI, then load a demo project.
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- EasyWeb 2.0 Operations Manual
- cMT Quick Start Guide
- CMT2128X Installation Guide
- CODESYS Quick-Start Guide
- Activate CODESYS on cMT Models
Certifications
- UL-cMT Series
- CE-cMT2128X
- RoHS all series
- EU Declaration of Conformity (Battery Regulations)
- REACH Certification
- Russian Iron and Steel Declaration
- Trade Agreement Act
- Country of Origin Certification
CAD Files

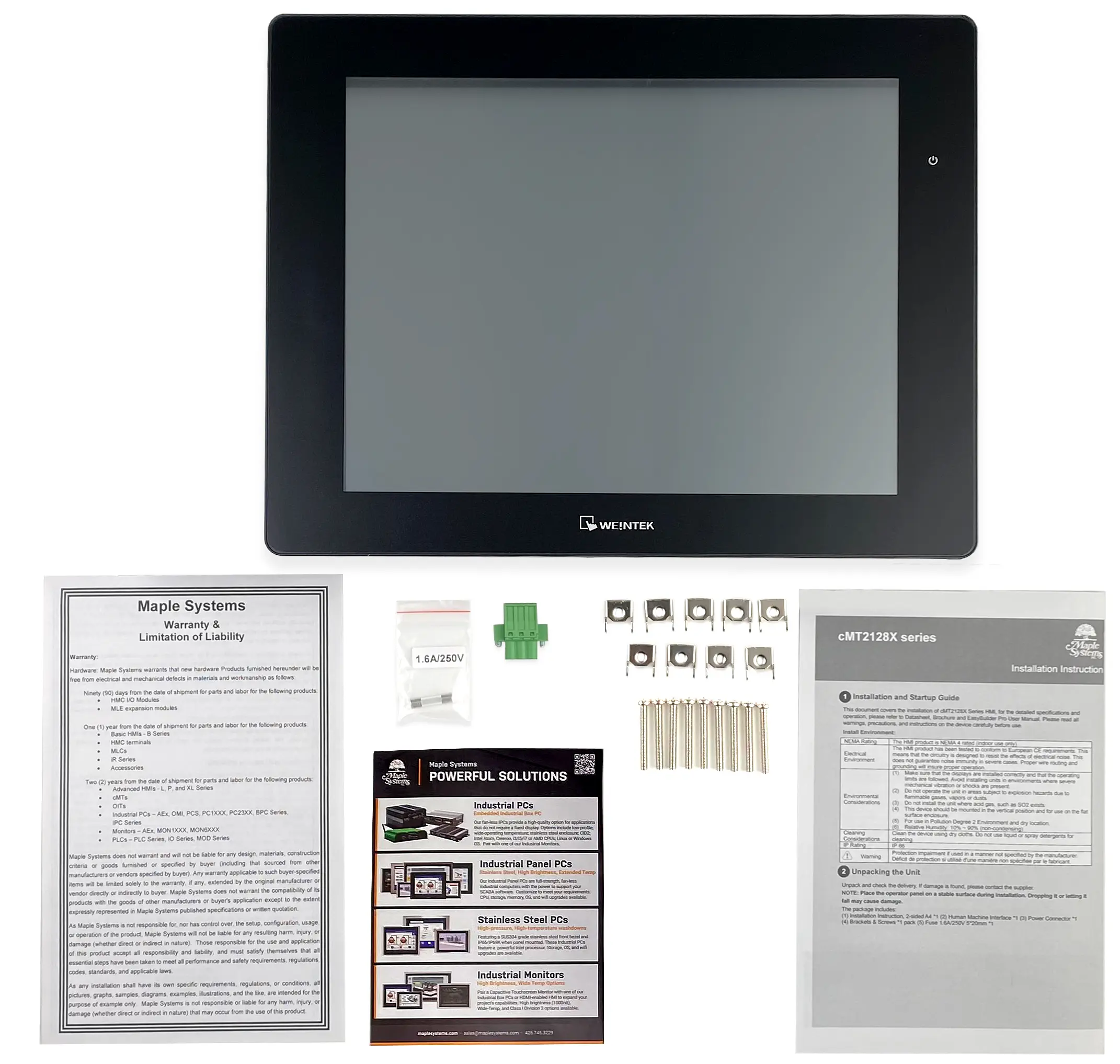

When you order the cMT2128X-CODESYS the following items are included in the box:
- 1 x cMT2128X with activated CODESYS license
- 1 x Warranty Statement
- 1 x Installation Instruction
- 1 x Product Brochure
- 1 x Power Connector
- 8 x Panel Mounting Clips
- 1 x Spare Fuse
