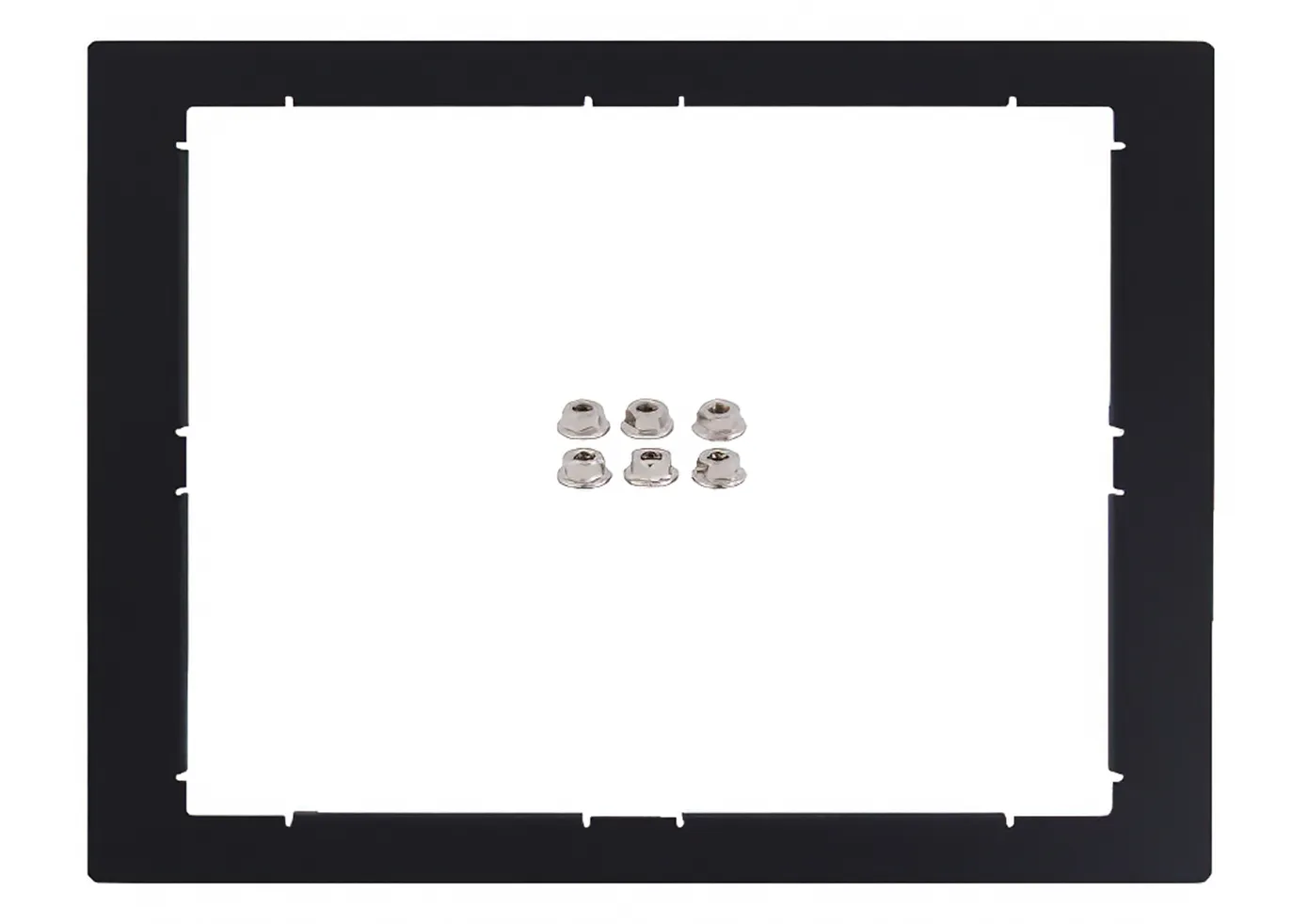

Panel Cutout Adapter Plate [10.4″ to 10″].

1420-5002
— Leave a Review
$50.00

This HMI adapter plate allows for users of first-generation HMI550 units to use their existing panel cutout and upgrade to a current generation 10-inch HMI or cMT unit.
Used to fit a 10.1-inch HMI into an existing 10.4-inch cutout (cMT3108XH & cMT3108XP excluded).

1420-5002 Data Sheet

Share the product:
Control Panel Components
Browse Pushbuttons & Switches, 10-20% Off at Volume Indicator lights, momentary and latching pushbuttons, 2 and 3-position selector switches and E-stops. Select from over 250 variations.

For HMI550 to any current 10″ HMI/cMT .

Part Number 1420-5002
Dimensions (Internal Cutout)
Height 7.91” [ 201 mm ]
Width 10.20” [ 259 mm ]
Corner Radius 0.08” [ 2 mm ]
Dimensions (Outer)
Height 9.38” [ 238.25 mm ]
Width 12.40” [ 314.95 mm ]
Corner Radius 0.12” [ 3 mm ]
Standoff Threading M4 ( nuts included )
Material Black Powder-Coated Steel
