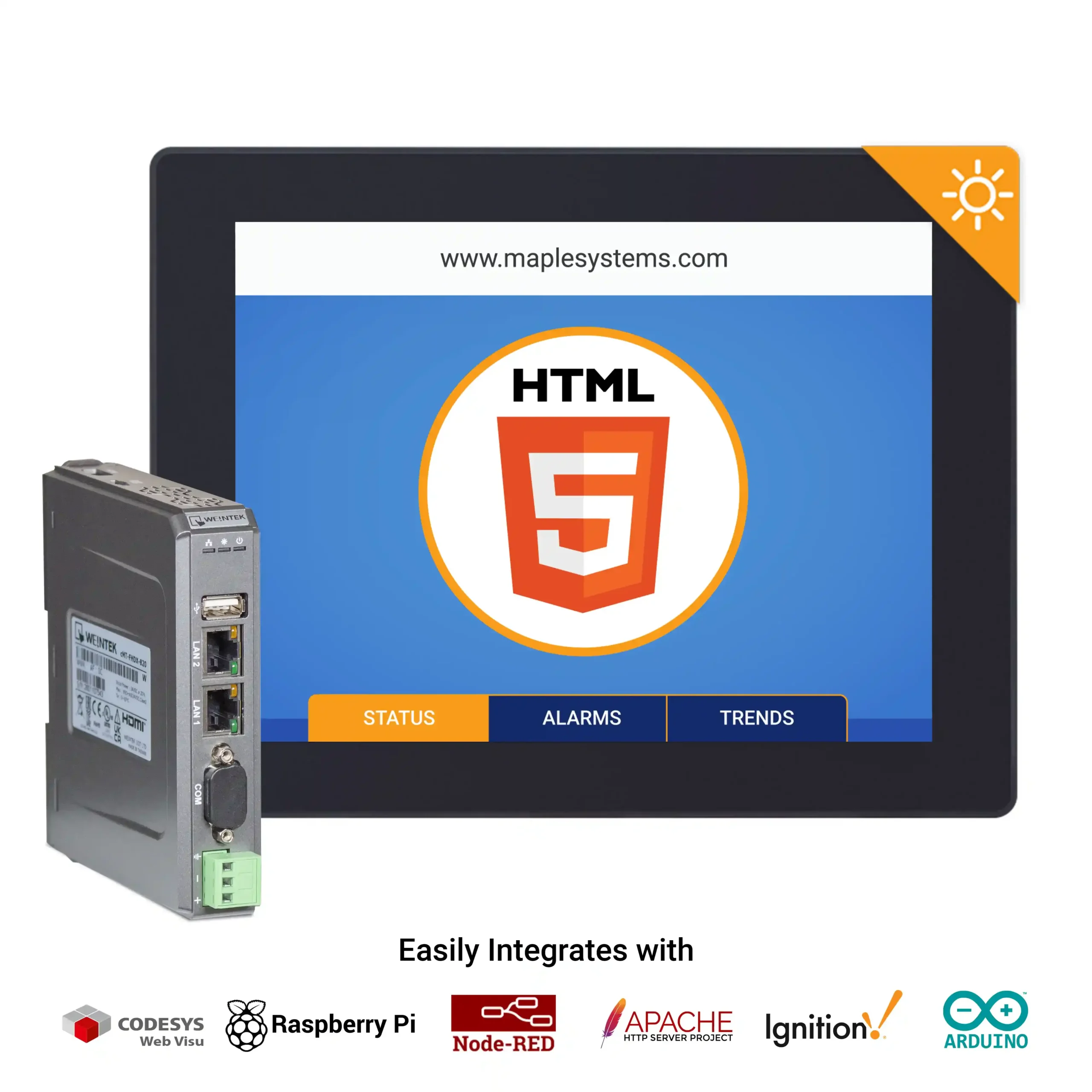

12.1" Sunlight Readable Web HMI Display Kit
Deploy bright, web browser based HMI systems anywhere, no PC required! Our cMT-FHDX-820W device provides the visualization engine to view any web based dashboard and display it on our high brightness, sunlight readable, HDMI compatible MON1012APHV2.
- This bundle provides everything needed to efficiently operate your Web HMI and High Brightness 1000 nit Monitor combo unit.
- Our Headless Web HMI can be din rail mounted inside your control panel, connected to our High Brightness 1000 nit Monitor.
- High Brightness Monitor mounted to the outside of the panel door.
Included with this kit at the time of purchase:
- Input Power Connector for the cMT-FHDX-820W
- Panel Mounting Kit for the Monitor
- HDMI Cable for viewing what the Web HMI is serving
- USB Cable allowing for touch functions on the Monitor when paired with Web HMI
- Input Power Cable for Monitor to connect to existing power supply
See more recommended items at bottom of page.
Use Cases
Outdoor Pump & Utility Monitoring
Ideal for water, wastewater, and pump stations where operators need to see system status in direct sunlight.
Displays:
- Pump status
- Tank levels
- Flow rates
- Alarm notifications
The MON1012APHv2 ensures visibility outdoors while the cMT-FHDX-820W allows remote monitoring and updates.
Smart Agriculture & Irrigation Control
Perfect for farms, greenhouses or irrigation systems.
Displays:
- Soil moisture levels
- Irrigation schedules
- Weather sensor data
- Pump control status
The sunlight readable display allows operators to quickly check system status outdoors.
Industrial Equipment Monitoring
Retrofit older machines with a modern web-based dashboard.
Displays:
- Machine status
- Cycle count
- Maintenance alerts
- Alarm messages
No industrial PC required, just HDMI and browser based HMI.
Building & Energy Monitoring
Deploy dashboards in maintenance rooms or facilities.
Displays:
- HVAC system status
- Energy consumption
- Temperature zones
- Alarm notifications
Remote updates make it easy to modify dashboards without physical access.
- US-based technical support.
Share the product:
High Brightness Monitor
Our 1000 nit monitors are perfect for heavy ambient light, outdoor environments, and bright indoor settings. Also great for industrial application: Healthcare, Banking, Retail, pharmaceutical indoor settings, Outdoor Oil and Gas settings, HVAC, Carwash, Water/Waste Water, Golf Courses and Weigh Stations.
- Projected Capacitive Touchscreen
- 1024 x 768 Resolution, 1000 nits High Brightness
- VGA, DVI-D, Display Port, HDMI Inputs
- Fanless, IP65, Panel or VESA mount
- High Brightness 12.1″ Monitor Datasheet
Headless Web HMI
The cMT-FHDX-820W headless, HDMI enabled Web HMI delivers powerful visualization through a browser based interface, enabling flexible dashboard displays on external monitors without the need for a traditional HMI panel. An ideal solution for factory dashboards, equipment monitoring, and outdoor industrial visualization.
- Full HD 1080P High Resolution Video Output
- Plug-and-Play
- Built-in Chromium Browser Version 132
- UL Listed, IP20
- Create an Andon or Status Display Station, or pair with other Industrial Monitors
- DIN Rail Mount
- Headless cMT-FHDX-820W Datasheet
