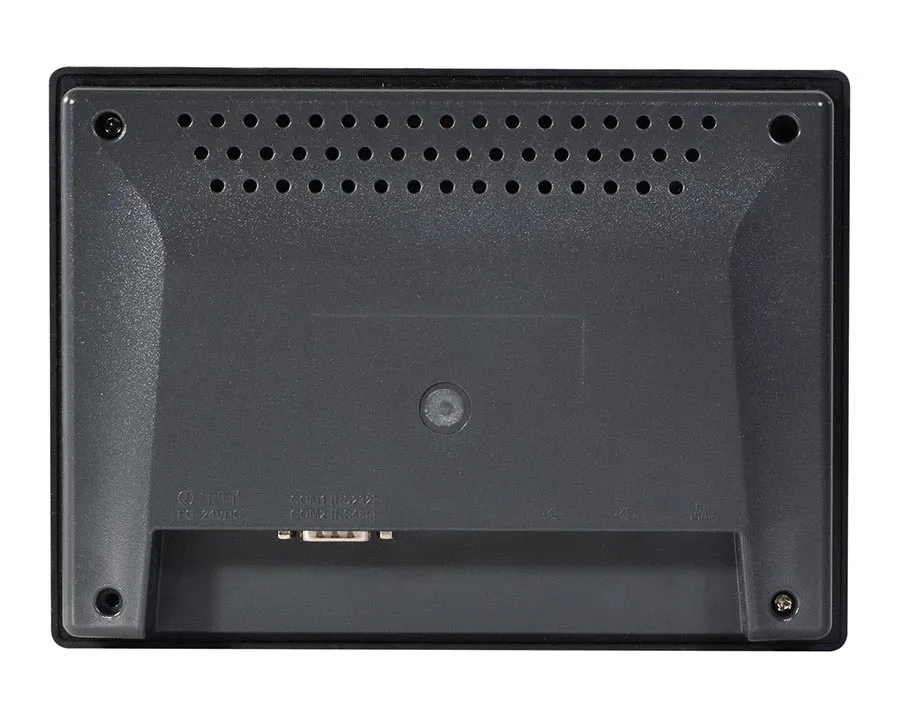

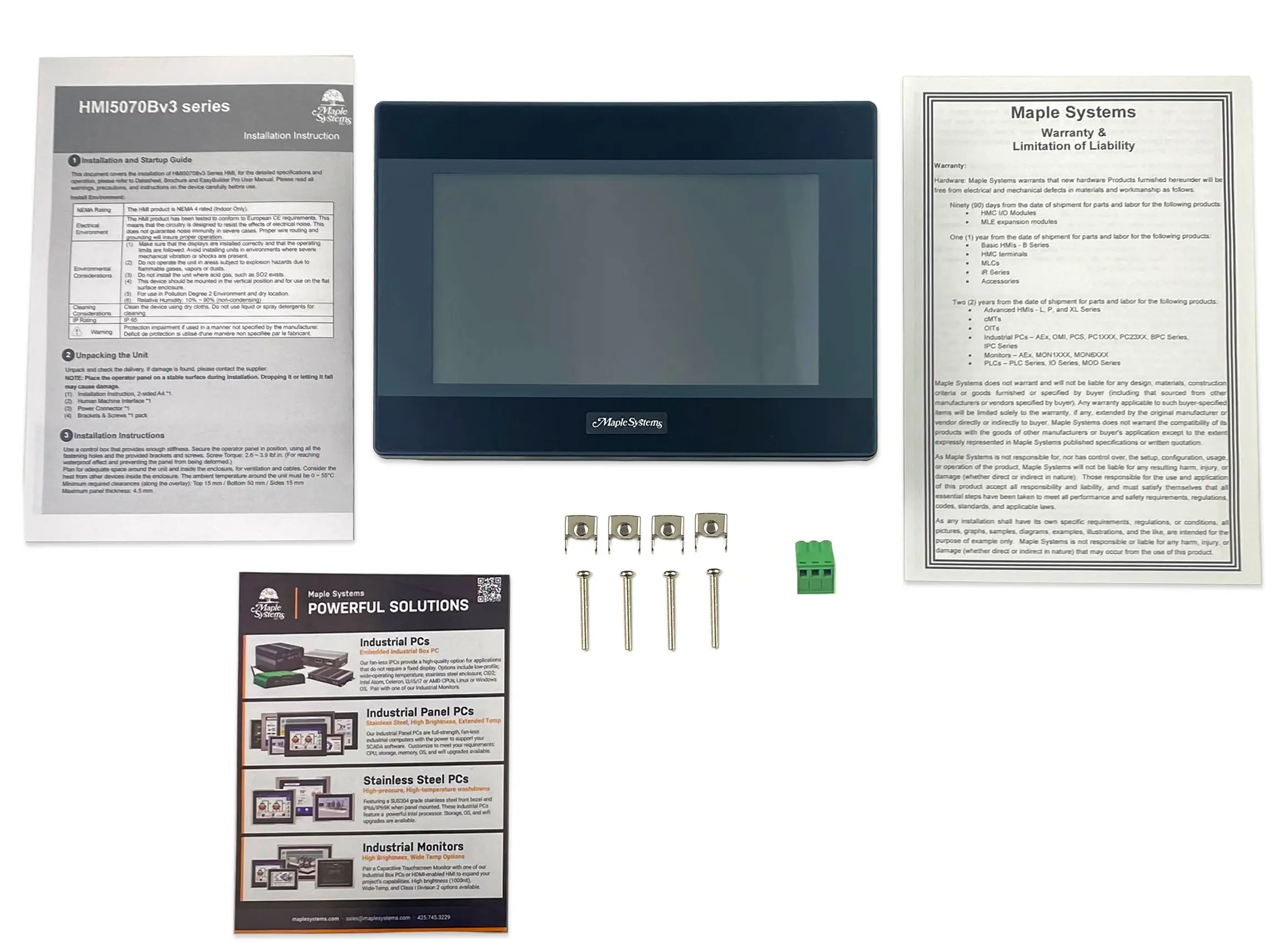

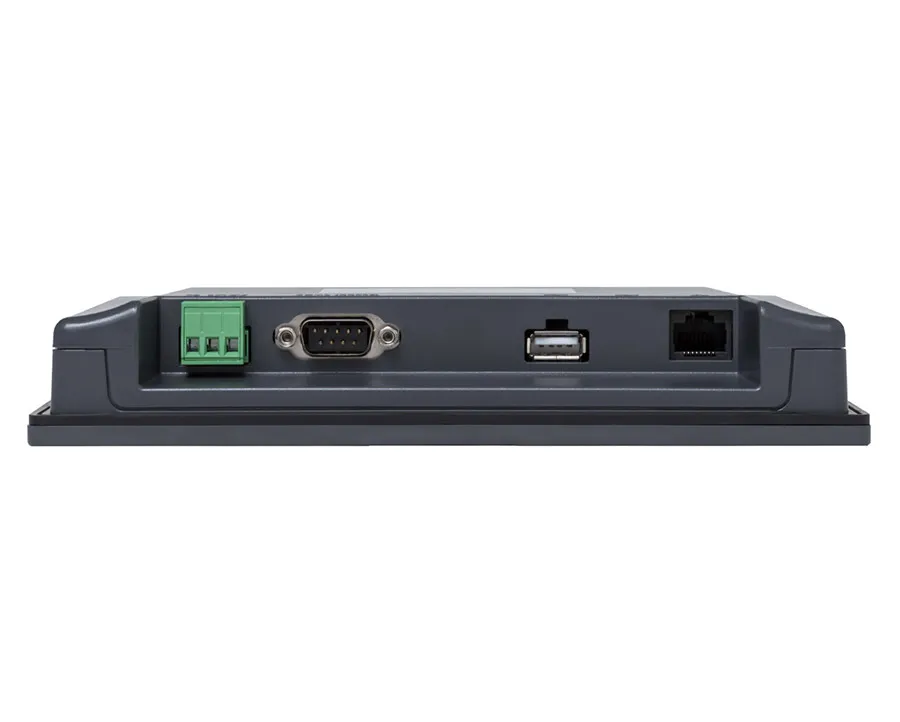

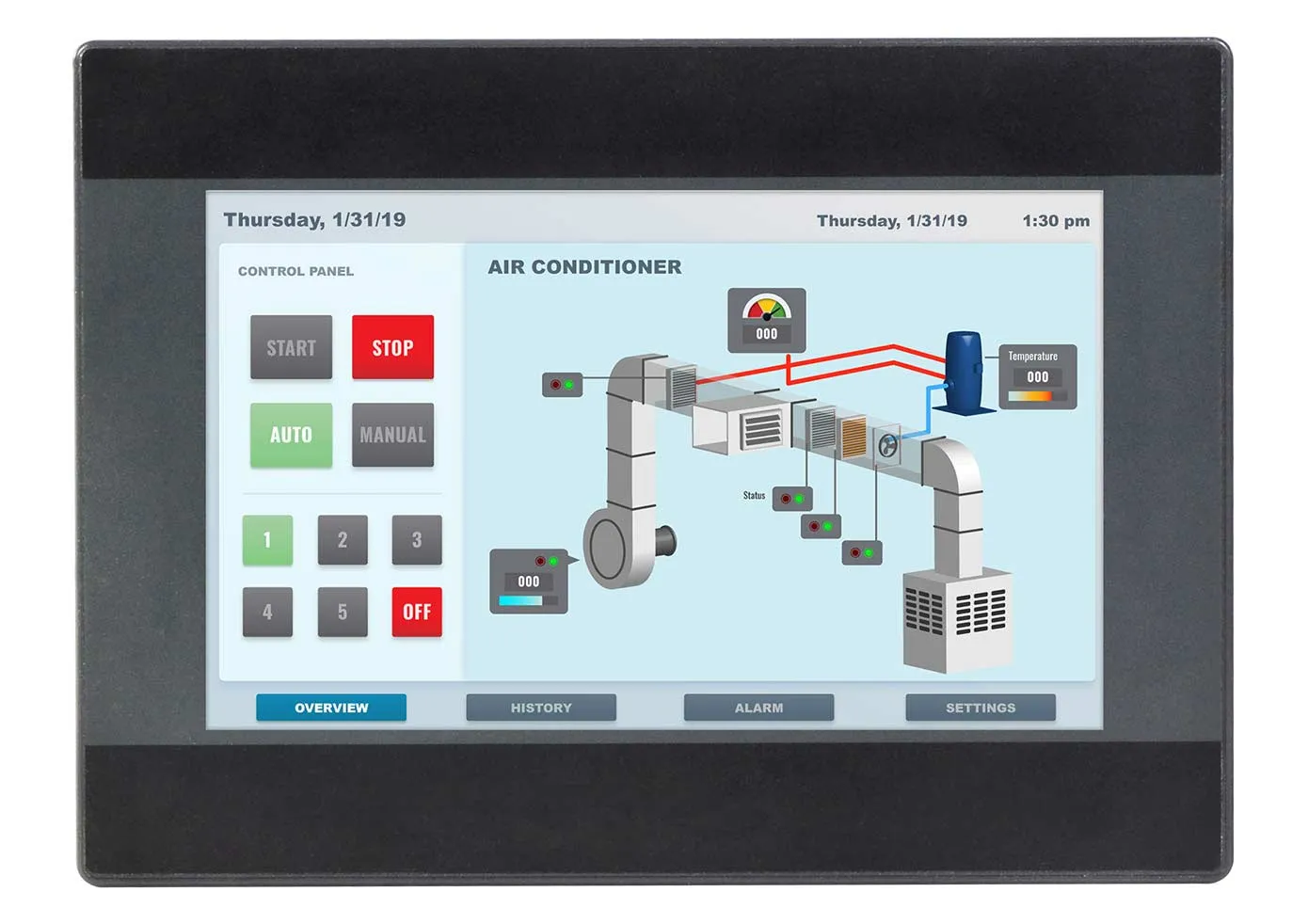

7.0" Cost-Effective HMI

Maple Systems cMT HMIs support over +400 PLC and controller communication protocols, allowing our HMIs to communicate with most common devices. Our cMT HMIs also support protocols such as Modbus TCP/IP or Modbus RTU, opening them up for use with a wide range of devices.

If you want to see the protocols that EBPro supports, visit our Controller Information Sheets page for more information. You can also download the EBPro software from our website for free, which includes simulation features. You can use these to test connections to your other devices before buying any hardware from Maple Systems.

Yes. EBPro makes it easy to import your device tags, with the entire process requiring only a few clicks in most cases. Device tags can be imported into EBPro through the System Parameters, or through the Address Tag Library using formats such as CSV or XLS.

FREE User Friendly HMI Software

Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.

Download EBPro for Free

Software Tutorials, Sample Projects and More

Yes. Maple HMIs support storage expansion through external HDD, USB flash drive, or SD card, depending on the HMI model.

External HDD: Maple Systems products support USB 2.0 external hard disk drives, so long as the HDD is powered with its own power supply.

USB Flash Drive: Maple Systems products support a maximum capacity of 32GB. USB drives must be formatted as FAT32.

SD Card: Maple Systems products support a maximum SD card capacity of 4GB (32GB capacity with SDHC card). SD and SDHC Cards must be formatted as FAT32. SDXC cards are not supported.

The free EBPro software design maximizes functionality while maintaining user-friendliness. In many cases our customers are able to get up to speed and create their first project within 24 hours.

For new users who want to accelerate their learning process, our EBPro HMI Software Training Series has you covered. This series breaks down multiple topics into small, easy-to-understand sections so you can learn at your own pace. You can view individual videos based on the topic, or view the entire series in a YouTube playlist.

The EBPro Programming Manual provides full descriptions of the software’s features, and is an excellent resource for users of all skill levels. We also offer the EBPro Quick Start Guide, which contains information for new users when getting started with Maple Systems devices.

Yes. To turn automatic backup on in EBPro, click on the File menu and select Preferences. On the Project tab, check the “Generate backup of project file before save” option. This will create a backup of your project any time you save it with a *.bak1 extension.

Subsequent saves will rename the backup file with a *.bak2 and finally *.bak3 extension, so there will always be three backup files saved with *.bak1 the most recent and *.bak3 the oldest.

Yes. Our HMIs support remote access features via the EasyAccess 2.0 application. EasyAccess provides a simple built-in solution for creating a secure VPN connection to a remote network, which will allow you to monitor and control your HMI from anywhere in the world.

Once the VPN tunnel has been established, the HMI can be accessed using the cMT Viewer application included with EBPro, or through VNC client software.

Using the EasyAccess 2.0 application does require a one-time license activation fee, which allows for 3 GB of monthly high-speed data at no additional cost. Our HMIs can also be purchased with a pre-activated license for EasyAccess 2.0 already installed.

An HMI must belong to a domain in order to use EasyAccess 2.0. Anyone can create a new domain for free, all you need is a valid e-mail address. The Domain Management System is the basic system used to organize and handle HMI’s under a particular domain.

When you create a domain account, you become the domain’s administrator. It’s the administrator’s responsibility to create new user accounts and to assign HMIs to specific users and HMI groups. Your domain can contain multiple HMIs, groups, and users.

In order to use EasyAccess 2.0, you must activate the HMI in the domain. Some HMIs have EasyAccess 2.0 pre-installed and some require purchasing an activation card.

Download the EasyAccess 2.0 app on your PC/ iPad/ iPhone/ Android Tablet, Launch EasyAccess 2.0, enter the User ID and password. Once logged in, the program will list all HMIs assigned to this ID including all HMIs under an HMI group. Select an HMI and establish a remote connection. You can now monitor any HMI in your HMI list.

Maple Systems PLCs are compatible with any HMI that supports the industry-standard Modbus TCP/IP or Modbus RTU protocols. This includes every Maple Systems HMI that we sell, as well as hundreds of other third-party devices.

1. Using a cleaning solution of 75% alcohol or 1:100 diluted bleach, spray the solution on a dry cloth.
2. Gently wipe the HMI’s screen.

Yes. Maple Systems provides 100% free, US-based technical support for all customers. Our Support Center includes extensive documentation, tutorials, and resources. However, if you’re unable to find what you need, our technical support team is ready to assist. You can reach our technicians by phone at (425) 745-3229 or by email at [email protected].

Yes! Maple Systems programming software is completely free of charge. This includes EBPro, MAPware-7000, and MapleLogic—our flagship software tools for HMI, HMI + PLC combo, or PLC programming and configuration. There are no licensing fees, subscriptions, or activation codes required to download, install, or use these programs. Creating a free account on the Maple Systems website is all that is required.

Whether you’re developing your first HMI project or configuring a complex control system, you can access the full functionality of our software without any cost.

Maple Systems is committed to providing cost-effective solutions for our customers, and offering free software is a core part of that mission. Updates are also free, and support resources—including user manuals, video tutorials, and US-based technical support—are available at no additional cost. This makes it easy for engineers, integrators, and OEMs to start building and maintaining projects right away, without worrying about hidden expenses or recurring fees.
