Introduction

All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with Siemens S7-200. Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.

Supported Series: Siemens S7-200 series PLC

Website: http://www.siemens.com/entry/cc/en/

HMI Settings

Parameters	Recommended	Options	Notes
PLC type	SIEMENS S7-200
PLC I/F	RS485 2W	RS485 2W
Baud rate	9600	9600, 19200, 187.5K	The HMI which has a sticker “MPI187.5” on the rear cover supports 187.5K
Data bits	8	7, 8
Parity	Even	Even, Odd, None
Stop bits	1	1, 2
PLC sta. no.	2	1 ~ 126
Turn around delay	5
Send ACK delay (ms)	30
Online simulator	YES
Extend address mode	NO
Broadcast command	NO

PLC Settings

Communication — Set station number to 2.

Device Address

Bit/Word	Device Type	Format	Range	Memo
B	`I`	`DDDDo`	0 ~ 40957	Input (I)
B	`Q`	`DDDDo`	0 ~ 40957	Output (O)
B	`M`	`DDDDo`	0 ~ 40957	Bit Memory
B	`VW_Bit`	`DDDDDo`	0 ~ 102397	V Memory Bit Address
B	`S`	`DDDDo`	0 ~ 40957	SCR
B	`SM`	`DDDDo`	0 ~ 40957	Special Memory
B	`T_Bit`	`DDD`	0 ~ 255	Timer
B	`C_Bit`	`DDD`	0 ~ 255	Counter
Byte	`VB`	`DDDDD`	0 ~ 10239	V Memory
W	`VW`	`DDDDD`	0 ~ 10239	V Memory
W	`VW_Odd`	`DDDDD`	0 ~ 10239	V Memory Odd
DW	`VD`	`DDDDD`	0 ~ 10239	V Memory Double Word
DW	`VD_Odd`	`DDDDD`	0 ~ 10239	V Memory Double Word
W	`VW_String`	`DDDDD`	0 ~ 10239	String
W	`VW_String_Odd`	`DDDDD`	0 ~ 10239	String
DW	`VD_String`	`DDDDD`	0 ~ 10239	String
DW	`VD_String_Odd`	`DDDDD`	0 ~ 10239	String
Byte	`MB`	`DDDDD`	0 ~ 10239	Byte Memory
W	`MW`	`DDDDD`	0 ~ 10239	Word Memory
W	`MW_Odd`	`DDDDD`	0 ~ 10239	Word Memory
DW	`MD`	`DDDDD`	0 ~ 10239	Word Memory
Byte	`SB`	`DDDDD`	0 ~ 10239	SCR
W	`SW`	`DDDDD`	0 ~ 10239	SCR
DW	`SD`	`DDDDD`	0 ~ 10239	SCR
Byte	`SMB`	`DDDDD`	0 ~ 10239	Special Memory
W	`SMW`	`DDDDD`	0 ~ 10239	Special Memory
DW	`SMD`	`DDDDD`	0 ~ 10239	Special Memory
W	`T`	`DDD`	0 ~ 255	Timer
W	`C`	`DDD`	0 ~ 255	Counter

NOTE: Double word and floating point values must use VD device type.

How to Import Tag

The tags created in the Symbol Table in Step7-MicroWIN software can be imported to EasyBuilder (EBPro).

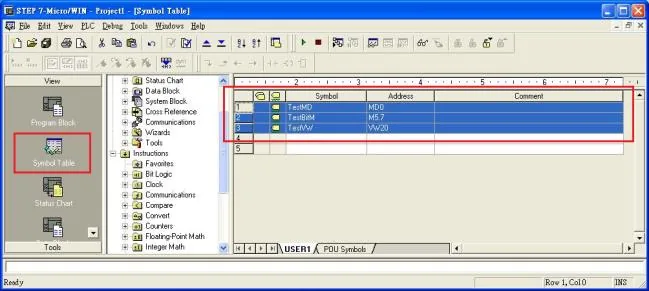

Create Tags in Symbol Table
In Step7-MicroWIN, open the Symbol Table and create the tags. Select all the tags, right-click, and copy them.

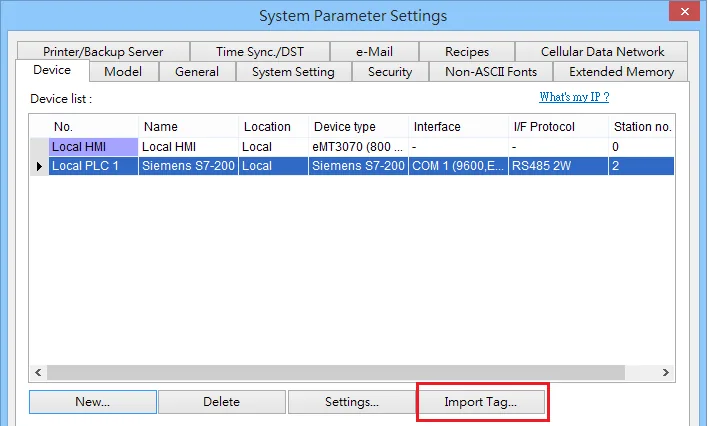

Add Driver in EasyBuilder (EBPro)
Launch EasyBuilder, add the Siemens S7-200 driver in the device list under System Parameter Settings, then click the Import Tag button.
Paste Copied Tags
Paste the tags copied in step 1 into the Paste dialog and click OK.
Select All Tags and Confirm
Select all the tags in the Add Tags dialog and click OK.
Verify Import Success
If the import succeeds, a confirmation message window appears.
