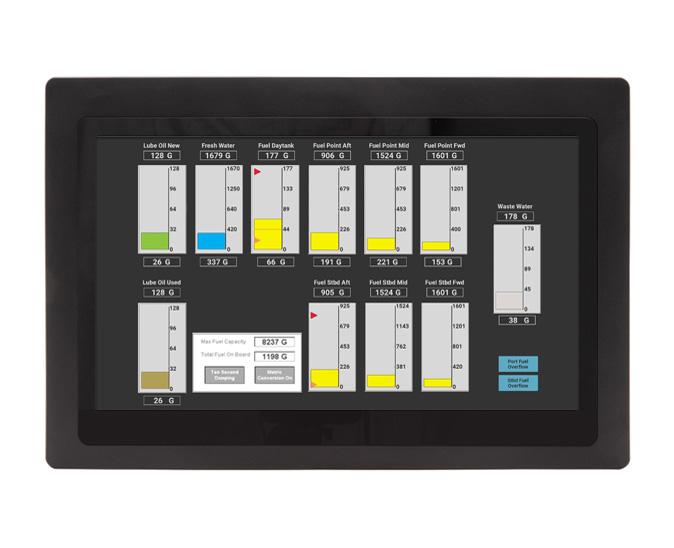

15.6" High Brightness, Intel® Pentium® Panel PC with Windows® or Linux OS®
$2,350.00
As part of our high brightness/sunlight readable IPC series, this fanless, wide screen, 1000-nit , 15.6” capacitive touchscreen industrial computer comes with either a Linux® or a Windows® OS which supports most 3rd party SCADA software like SIMATIC WinCC, Ignition, FactoryTalk®, & Aveva Edge®. High-quality construction and industrial grade components makes the PC1216APH a powerful solution for your industrial application. VESA or panel mount.
- Intel® Certified Gold Partner.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- Typically ships in 2 days.
- US-based technical support.
Share the product:
The base options are selected by default. Select the options to get the desired configuration.
System
| CPU | Intel® Pentium™ Apollo Lake™ N4200 Quad-Core™ 1.1GHz CPU |
| Memory (RAM) | 1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB) |
| System Chipset | SoC |
| Solid State Drive Type | 1 x 2.5” SATA III, MLC |
| Solid State Drive Capacity | 64, 128, 256, 512 GB, 1TB SSD |
I/O Ports
| Power | DC power input jack, thumbscrew secured. |
| Ethernet/LAN | 2 x GbE RJ-45 |
| Audio Output | 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in |
| SD Card Slot | N/A |
| HDMI Port | Yes |
| Remote Power Switch | 1 x Momentary Pushbutton with Integrated LED |
| Display Output | 1 x HDMI® 1.4a |
| USB 2.0 Type A | 2 |
| USB 3.0 Type A | 4 |
| Serial Ports | 3 |
| Serial Options | 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 2 x RS-232 DE-9P, COM2/COM3 |
| Expansion Option | Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support |
Display
| Display Size | 15.6” Widescreen TFT FHD LCD |
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 500:1 |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.2 M |
| View Angle (H° V°) | 170/170 |
Touch Screen
| Touch Interface | USB |
| Light Transmission | N/A |
| Optical Bonding | No |
| Digital I/O Port | N/A |
| Touch Screen Type | Projected Capacitive |
Electrical
| Input Power | 33 W |
| Input Voltage | 12~24 VDC |
| Input Current | 3.38 A Max |
Mechanical
| Enclosure Material | Black Steel Chassis, Aluminum Heatsink |
| Dimensions WxHxD | 15.75 x 9.84 x 2.56” [400 x 250 x 65 mm] |
| Panel Cutout (inches) [mm] | 14.57 x 8.90 [370 x 226 ] |
| Weight | ~ 9.70 lbs [4.4 kg] |
| Mounting | Panel mounting, VESA 100 x 100 mm |
Environmental
| Operating Temperature | 32~140°F [0~60°C] |
| Storage Temperature | -22~175°F [-30~80°C] |
| Relative Humidity | 10 to 90% @ 40°C, non-condensing |
Certification
| NEMA Rating | NEMA 4 when panel mounted |
| IP Rating | IP65 |
| CE | Yes |
| UL | No |
| ATEX | No |
| RoHS | Yes |
| FCC | FCC Class B |
PC1200 Series Unboxing
We'll review what comes with the PC, the I/O ports and some features, and other sizes we offer.
Capacitive/Glove Friendly
Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.
- Linux
- Windows
- SCADA – AVEVA
When you order the PC1216APH the following items are included in the box:
- PC1215APH Industrial Panel PC
- Warranty Statement
- Installation Instruction
- Product Flyer
- Input Power Cable
- Mounting Kit (one set shown, 3 sets included)
- 4 x VESA Mounting Screws
