PCS6821AP

  • 304 Stainless Steel Front Bezel, IP69K Rating
  • High-Resolution Capacitive Touch Screen
  • Intel® Celeron N2930 Quad-Core 1.83 GHz Processor
  • Multiple Storage Options Available
  • Windows® or Linux® Operating System
  • Optional Wi-Fi Upgrade
  • Integrate with Aveva Edge

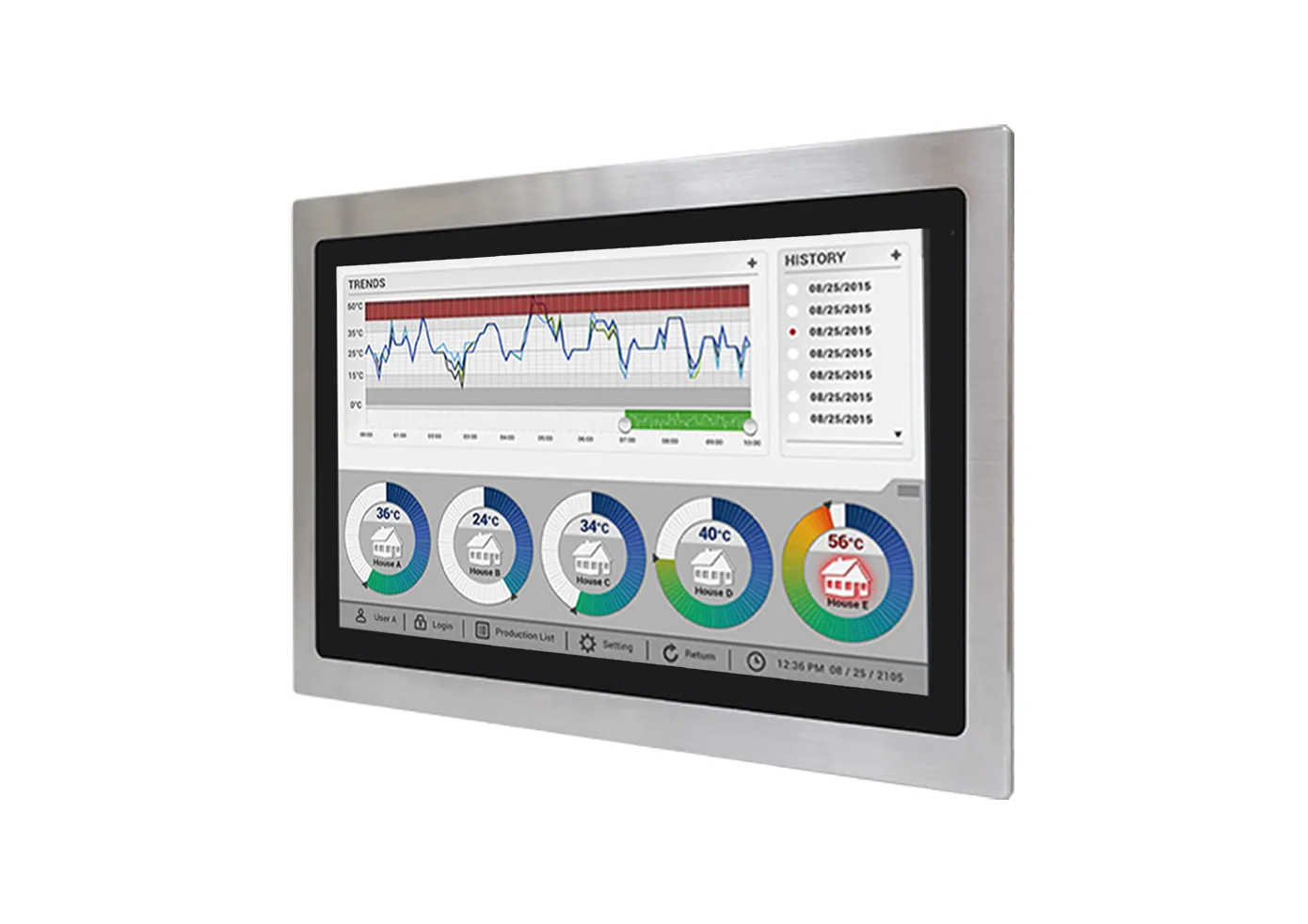

21.5" Intel® Celeron® Stainless Steel Industrial Panel PC

PCS6821AP

$3,025

Configure your PC

The base options are selected by default. Select the options to get the desired configuration.

Reset Configuration
Current Configuration
Base Price
PCS6821AP
$3025.00
Display
Included
Processor
Included
System Memory
Included
Storage
Included
Operating System
Included
Expansion Kit
Included

Part Number:

Buy Now

Our PCS6821AP 21.5” Industrial Panel PC features a capacitive touchscreen and a 304 stainless steel enclosure. This industrial computer offers power, performance and functionality in one package. The stainless steel housing offers a great level of resistance to corrosion and the IP66/IP69K rating offers protection against dust and water. This IPC is ready for high-pressure, high-temperature washdowns. Designed for industries that require stringent disinfection processes and splashing cleanup routines found in Food, Beverage, Pharmaceutical and Chemical applications. VESA or Panel Mount
Because it runs any 3rd party software including FactoryTalk®, it is extremely flexible. Need SCADA software? Take a look at our AvevaTM Edge software options.

Specifications

System

Memory (RAM)

Onboard DDR3L 4 GB 1600 MHz

System Chipset

SoC

Solid State Drive Type

1 x 2.5” SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

Input Current

1.11-4.44 A

Capacity (Screens)

500

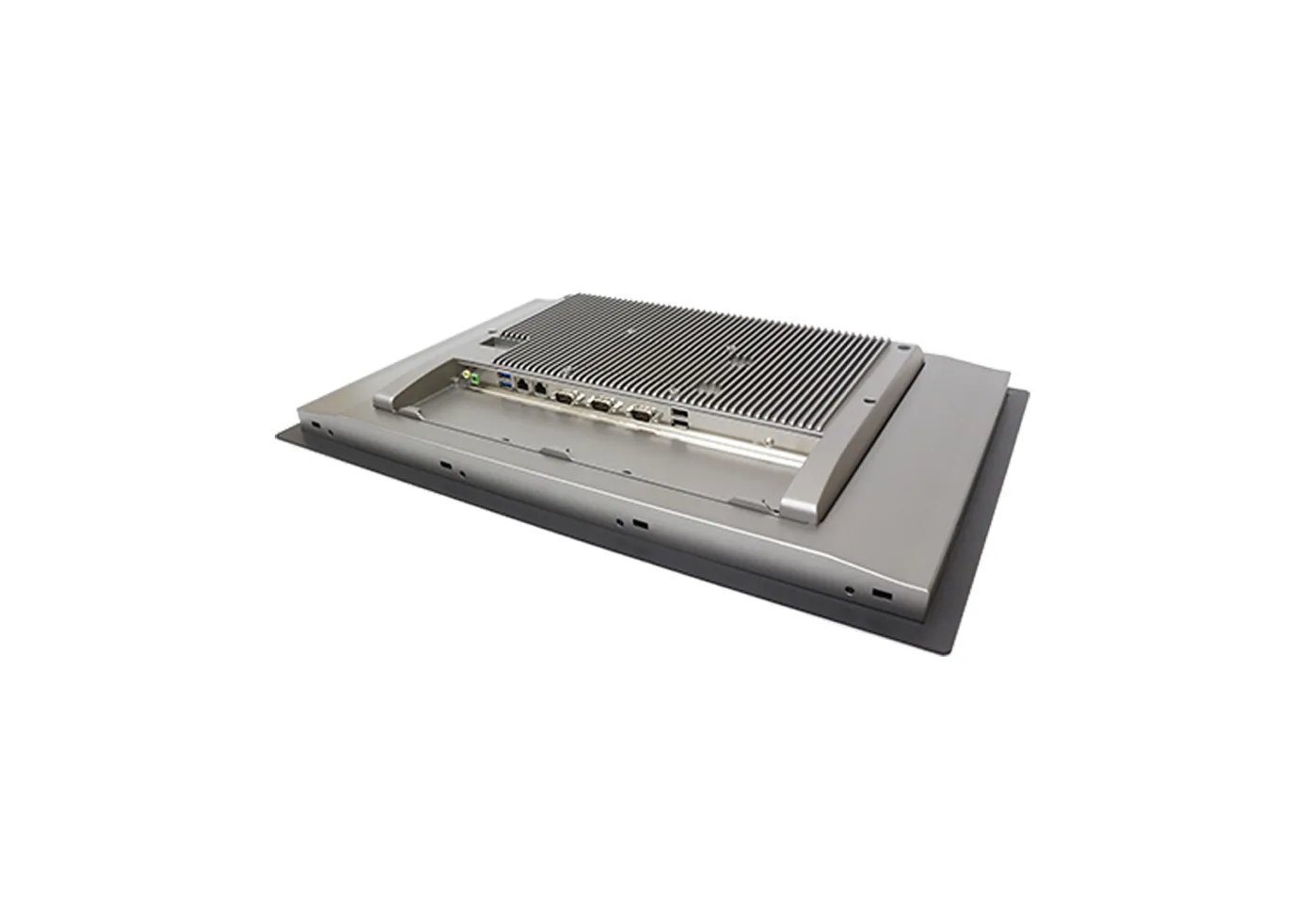

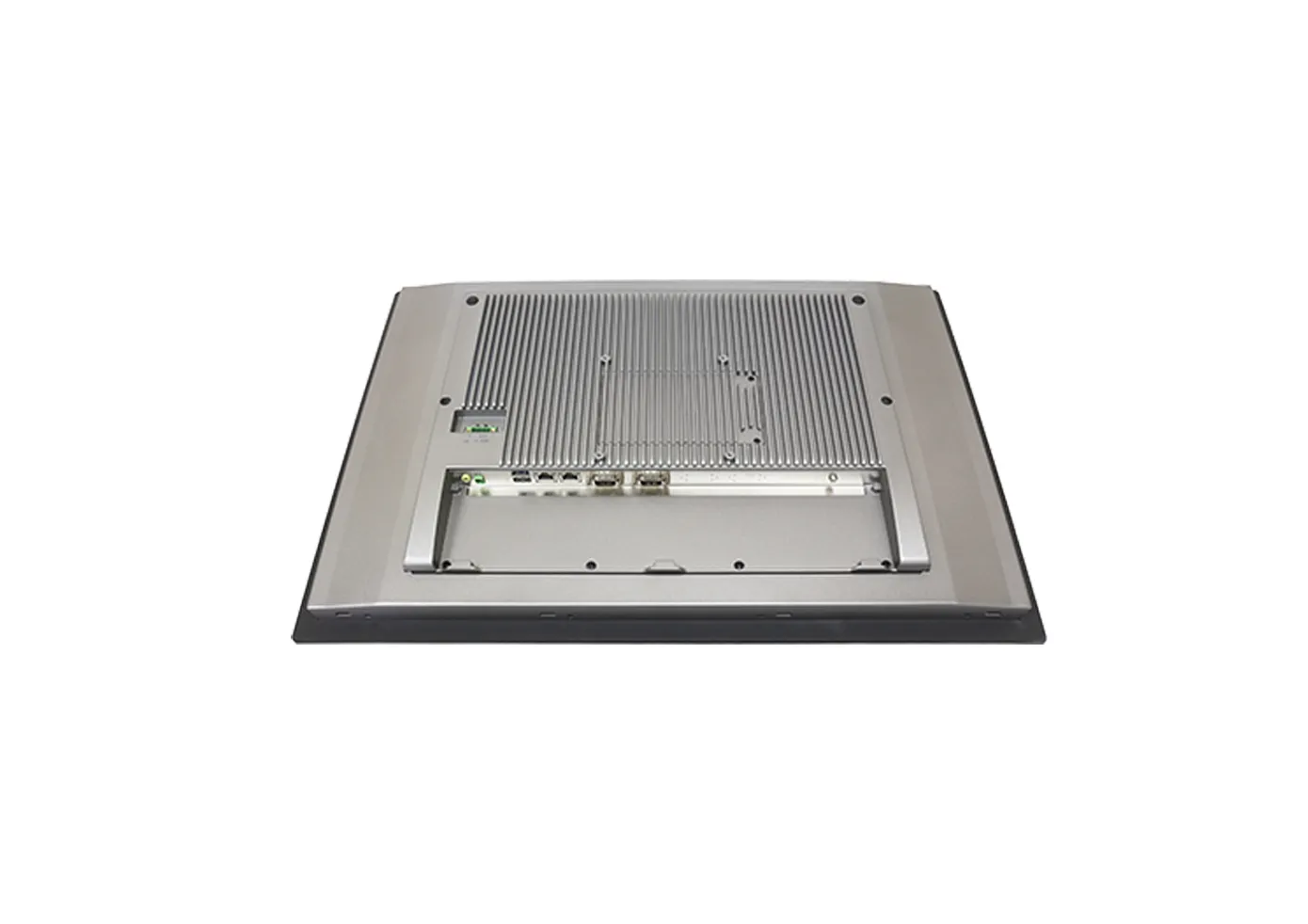

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

Remote Power Switch

2-pin connector header

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

21.5” FHD TFT LCD

Resolution

1920 x 1080

Luminance (cd/m^2)

250

Contrast Ratio

3000:1

Backlight Lifetime (hrs)

30000

Colors

16.7 M

View Angle (H° V°)

178/178

Touch Screen

Touch Interface

USB

Light Transmission

90+%

Optical Bonding

No

Digital I/O Port

N/A

Touch Screen Type

Projected Capacitive Touch

Electrical

Input Power

40 W

Input Voltage

9-36 VDC

Mechanical

Enclosure Material

304 Stainless Steel Front Bezel and Aluminum Chassis

Dimensions WxHxD

22.59 x 14.91 x 2.35” [573.8 x 378.8 x 59.8 mm]

Panel Cutout (inches) [mm]

21.22 x 13.54 [539 x 344 ]

Weight

~ 17.64 lbs [8 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158°F [-30~70°C]

Operating Temperature

32~122°F [0~50°C]

Relative Humidity

10 to 95% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP69 K

CE

Yes

UL

No

ATEX

No

RoHS

Yes

FCC

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the PCS6821AP the following items are included in the box:

  • PCS6821AP Industrial Panel PC
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • 2-Pin Remote Power Switch connector
  • Mounting Kit (Quantity determined by screen size)
