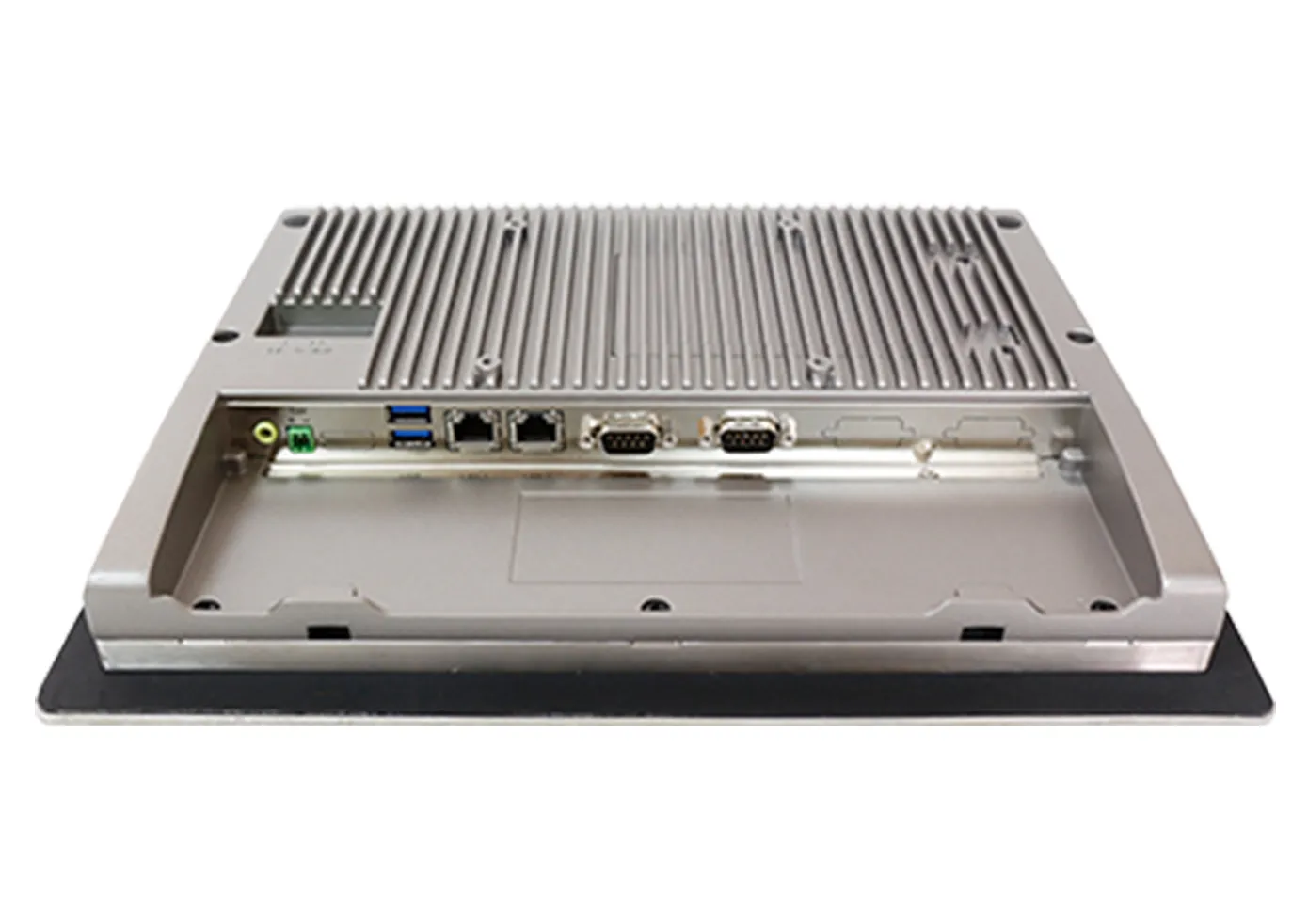

PCS6812APHEB Bottom View

PCS6812APHEB

12.1" Intel Celeron Stainless Steel, Wide-Temp, 1000nit Panel PC

  • pcs6812apheb Front View
  • Touch Screen Industrial PC | OMI6812APHEB
  • PCS6812APHEB Bottom View
  • PCS6812APHEB Cross View
  • PCS6812APHEB Side1 View
pcs6812apheb Front View
Touch Screen Industrial PC | OMI6812APHEB
PCS6812APHEB Bottom View

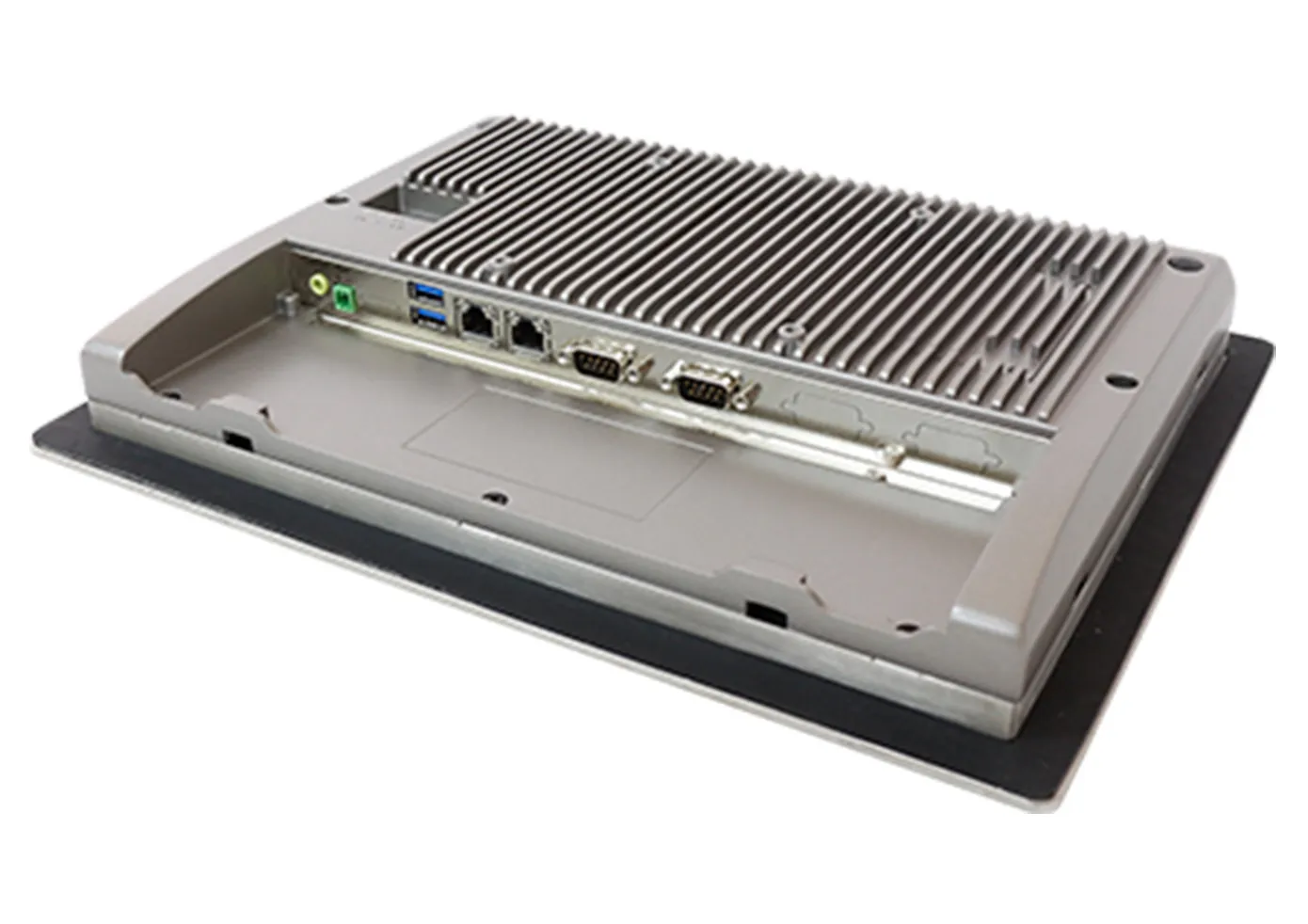

PCS6812APHEB Cross View

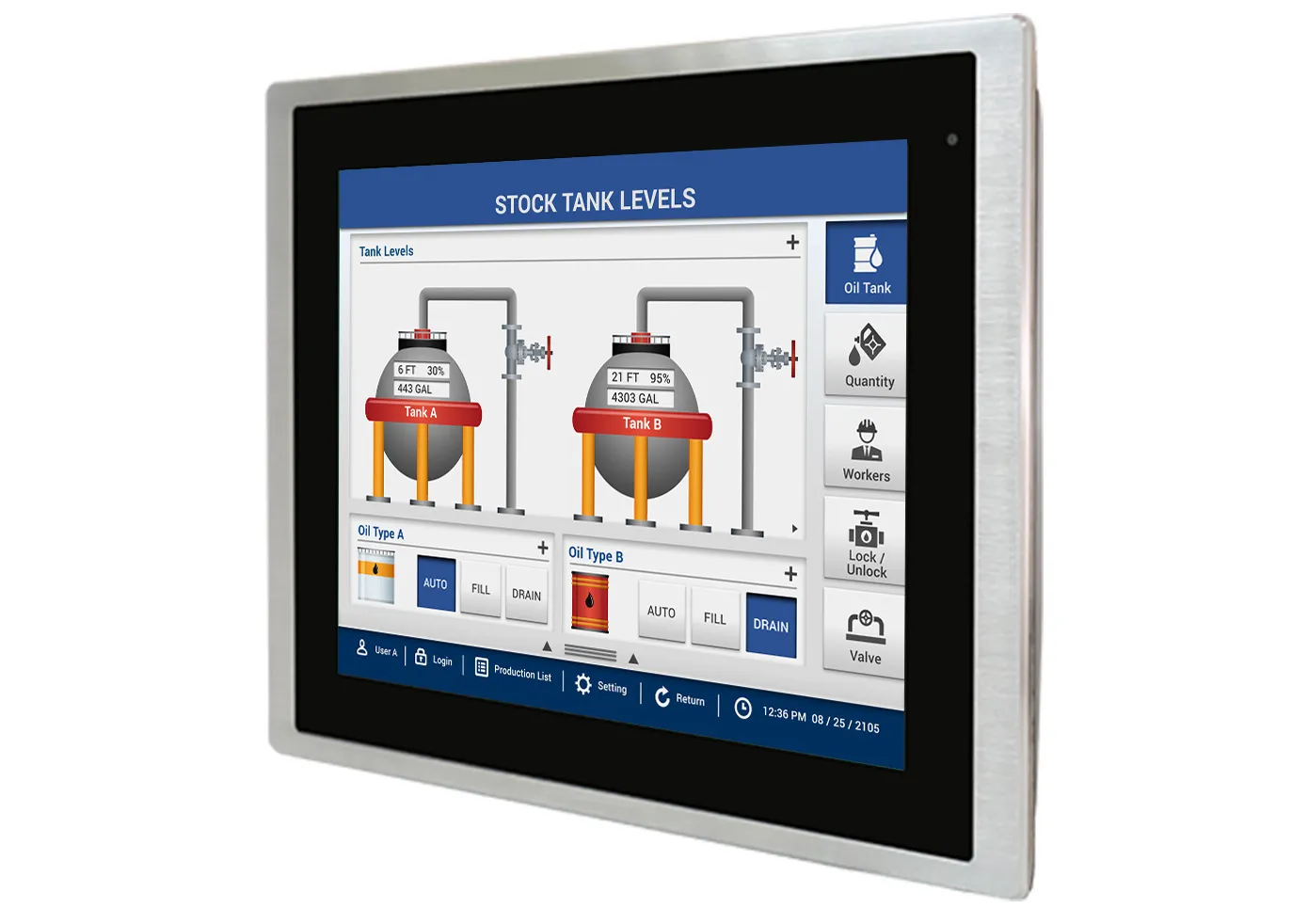

PCS6812APHEB Side1 View

PCS6812APHEB

  • 800 x 600 Resolution
  • 1000 nits High Brightness
  • Intelยฎ Celeron N2930 Quad-Core 1.83 GHz Processor
  • Windowsยฎ or Linuxยฎ Operating System
  • -20 ~ 60 C Operating Temperature
  • IP66K/IP69K Rating
  • Optional Wi-Fi Upgrade
  • Integrate with Avevaโ„ข Edge
View Datasheet

12.1" Intel Celeron Stainless Steel, Wide-Temp, 1000nit Panel PC

PCS6812APHEB

$2,460.00
Configure Your PC

With a 1000 nit, high bright 12.1″ capacitive display, extended operating temperature range (-20~60ยฐC), 304 stainless steel housing, and IP66/IP69K protection for dust and water resistance, the PCS6812APHEB is ready for high-pressure, high-temperature washdowns. Designed for extreme work environments that require stringent disinfection processes and splashing cleanup routines. VESA or Panel Mount. As part of our powerful Industrial Panel PC Series, this ย industrial computer comes with either a Linuxยฎย or a Windowsยฎย OS whichย supportsย mostย 3rd partyย SCADAย softwareย likeย SIMATIC WinCC, Ignition,ย &ย FactoryTalkยฎย , or ourย Aveva Edgeยฎ.

Share the product:

Review this product

Share your thoughts with other customers about this product

Write a Customer Review

The base options are selected by default. Select the options to get the desired configuration.

Compare “Intelยฎย Celeronยฎย Quad Core N2930, 1.83 GHz” performance with other processors

Relative CPU performance scores provided by PassMark
+$45
+$155
+$300
+$650
-$50

Ubuntuยฎ Linuxยฎ Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, and PCS6800APHEB Series.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoftยฎ Windowsยฎ 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windowsยฎ 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoftยฎ Windowsยฎ 10 IoT Enterprise Embedded LTSC is a full Professional version of Windowsยฎ 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoftยฎ Windowsยฎ 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windowsยฎ 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windowsยฎ before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoftยฎ Windowsยฎ 10 IoT Enterprise LTSC is a full Professional version of Windowsยฎ 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoftยฎ Edge Web Browser
  • Libre Office
  • Media Player
Reset Configuration

Current Configuration

Base Price

PCS6812APHEB

 $2460.00

Display

 Included

Processor

 Included

System Memory

 Included

Storage

 Included

Operating System

 Included

Expansion Kit

 Included

Part Number:

Datasheet2D CAD File3D CAD File

System

Memory (RAM)

Onboard DDR3L 4 GB 1600 MHz

System Chipset

SoC

Solid State Drive Type

1 x 2.5โ€ SATA III, MLC

Solid State Drive Capacity

64, 128, 256, 512 GB, 1TB SSD

I/O Ports

Serial Ports

2

Ethernet/LAN

2 x GbE RJ-45

Audio Output

1 x 3.5 mm line out

SD Card Slot

1 x internal micro Secure Digital memory card socket, up to 32 GB

Remote Power Switch

2-pin connector header

Power

3-pin connector header, DC power input

USB 3.0 Type A

2

Serial Options

1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2

Expansion Option

Optional Wi-Fi kit (IEEE 802.11a/b/g/n/ac card and antenna)

Display

Display Size

12.1โ€ SVGA TFT LCD

Resolution

800 x 600

Luminance (cd/m^2)

1000

Contrast Ratio

700:1

Backlight Lifetime (hrs)

50,000+

Colors

16.7 M

View Angle (Hยฐ Vยฐ)

176/176

Touch Screen

Touch Interface

USB

Light Transmission

90+%

Optical Bonding

Yes

Touch Screen Type

Projected Capacitive

Electrical

Input Power

34 W

Input Voltage

9~36 VDC

Input Current

3.77 A Max

Mechanical

Enclosure Material

304 Stainless Steel Front Bezel and Aluminum Chassis

Dimensions WxHxD

13.03 x 11.19 x 2.05โ€ [331 x 257 x 52 mm]

Panel Cutout (inches) [mm]

11.93 x 9.02 [303 x 229 ]

Weight

~ 7.50 lbs [3.4 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Environmental

Storage Temperature

-22~158ยฐF [-30~70ยฐC]

Operating Temperature

-4~140ยฐF [-20~60ยฐC]

Relative Humidity

10 to 90% @ 40ยฐC, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66/IP69K

CE

Yes

UL

No

ATEX

No

RoHS

Yes

FCC

FCC Class A
