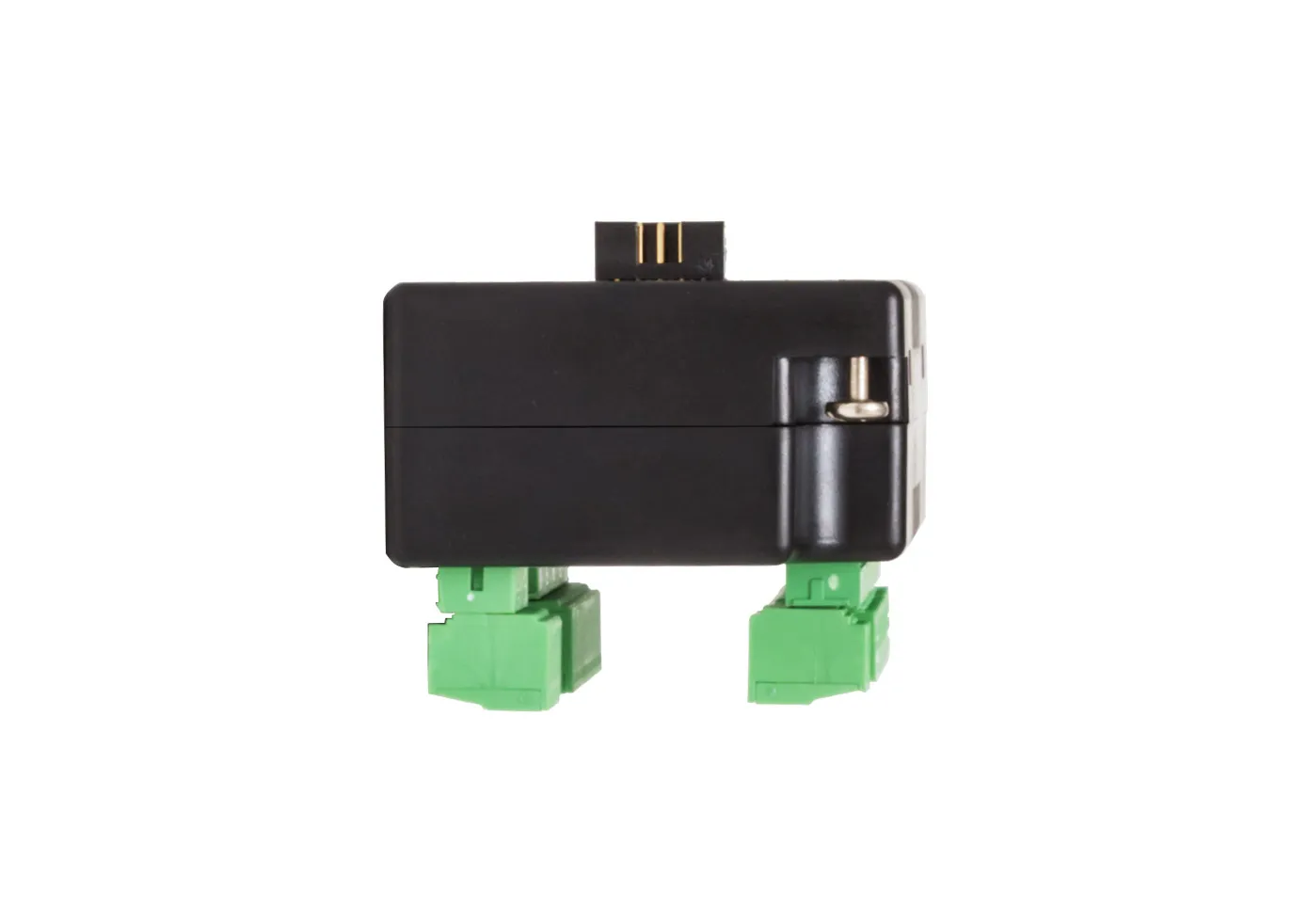

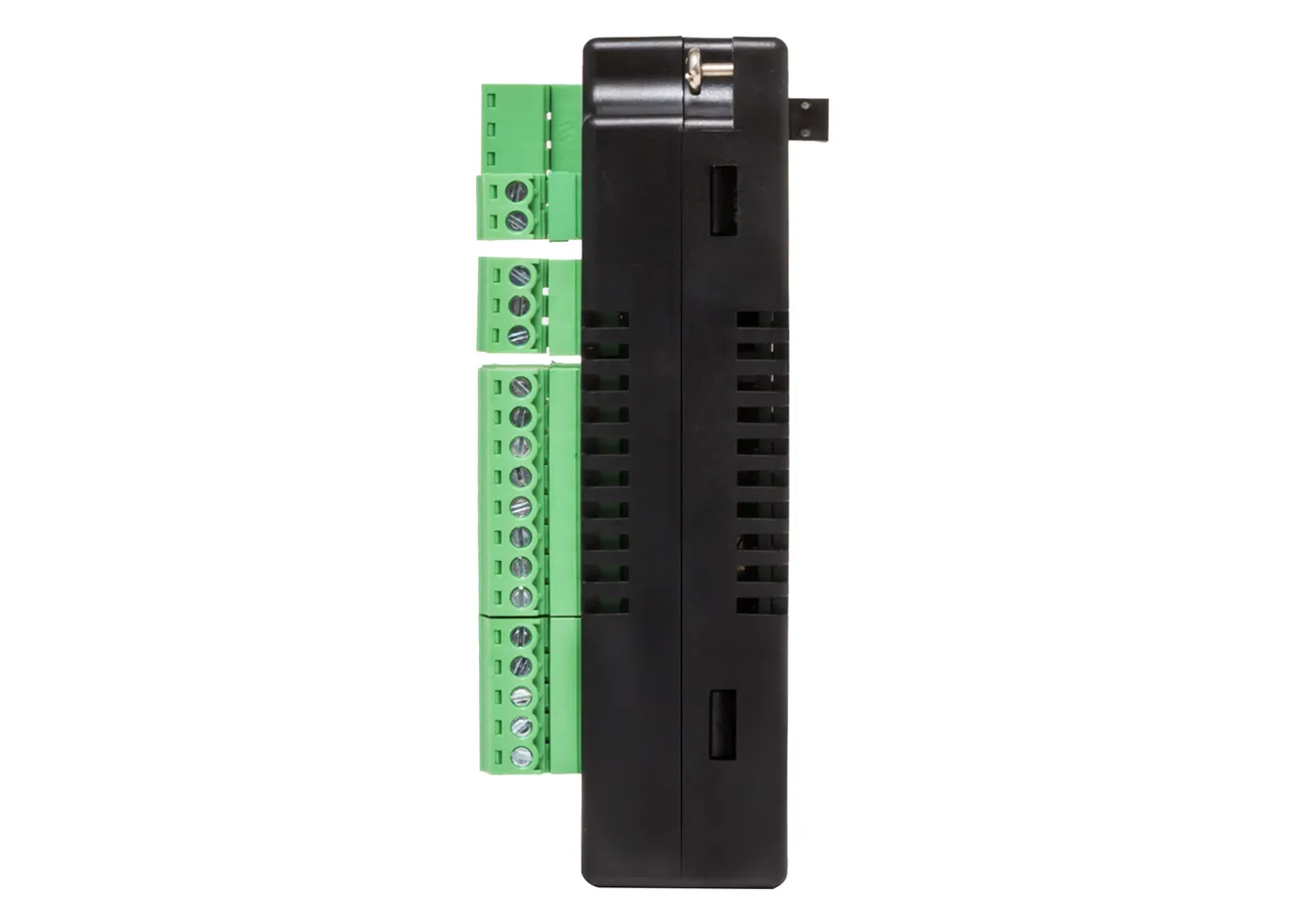

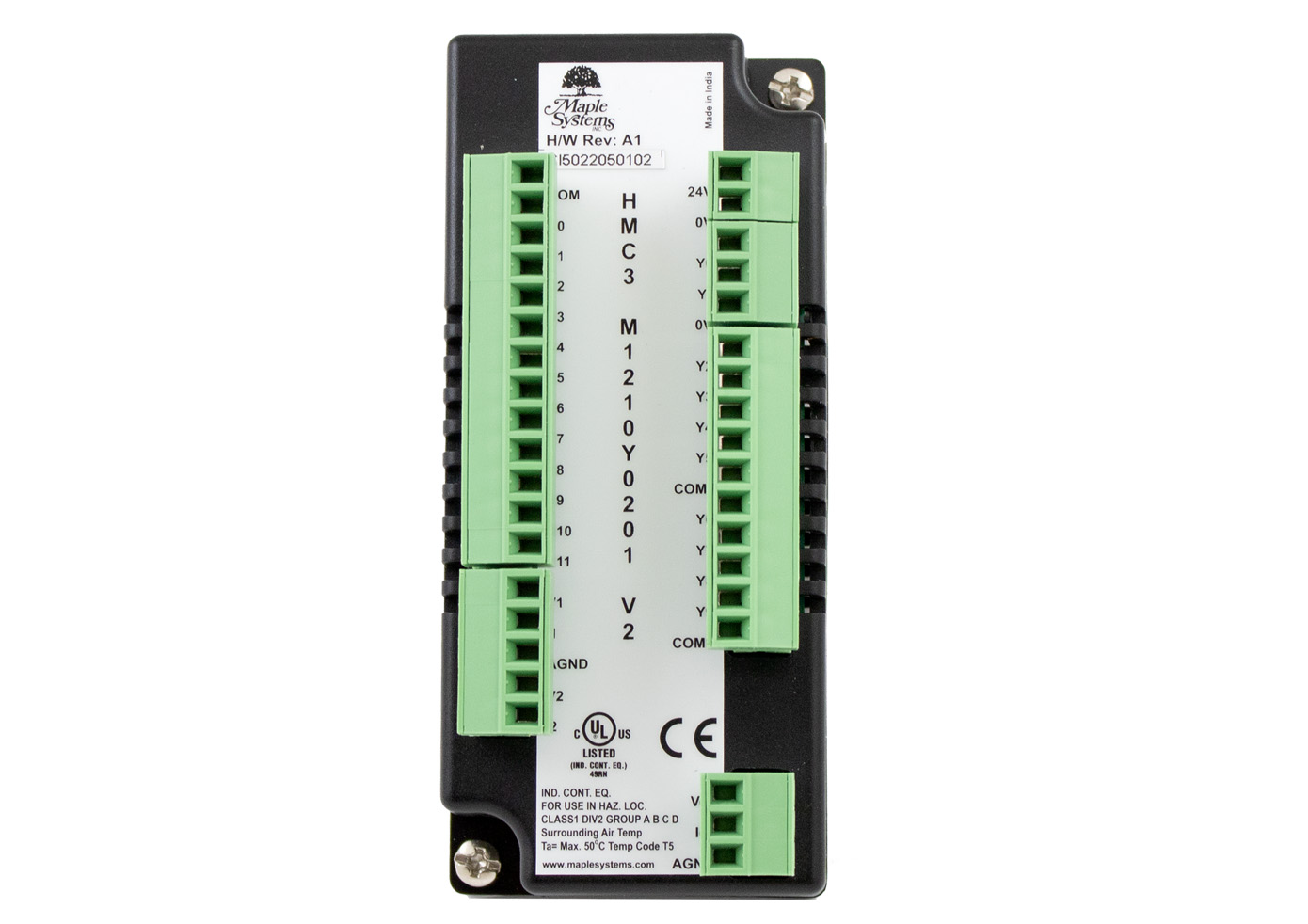

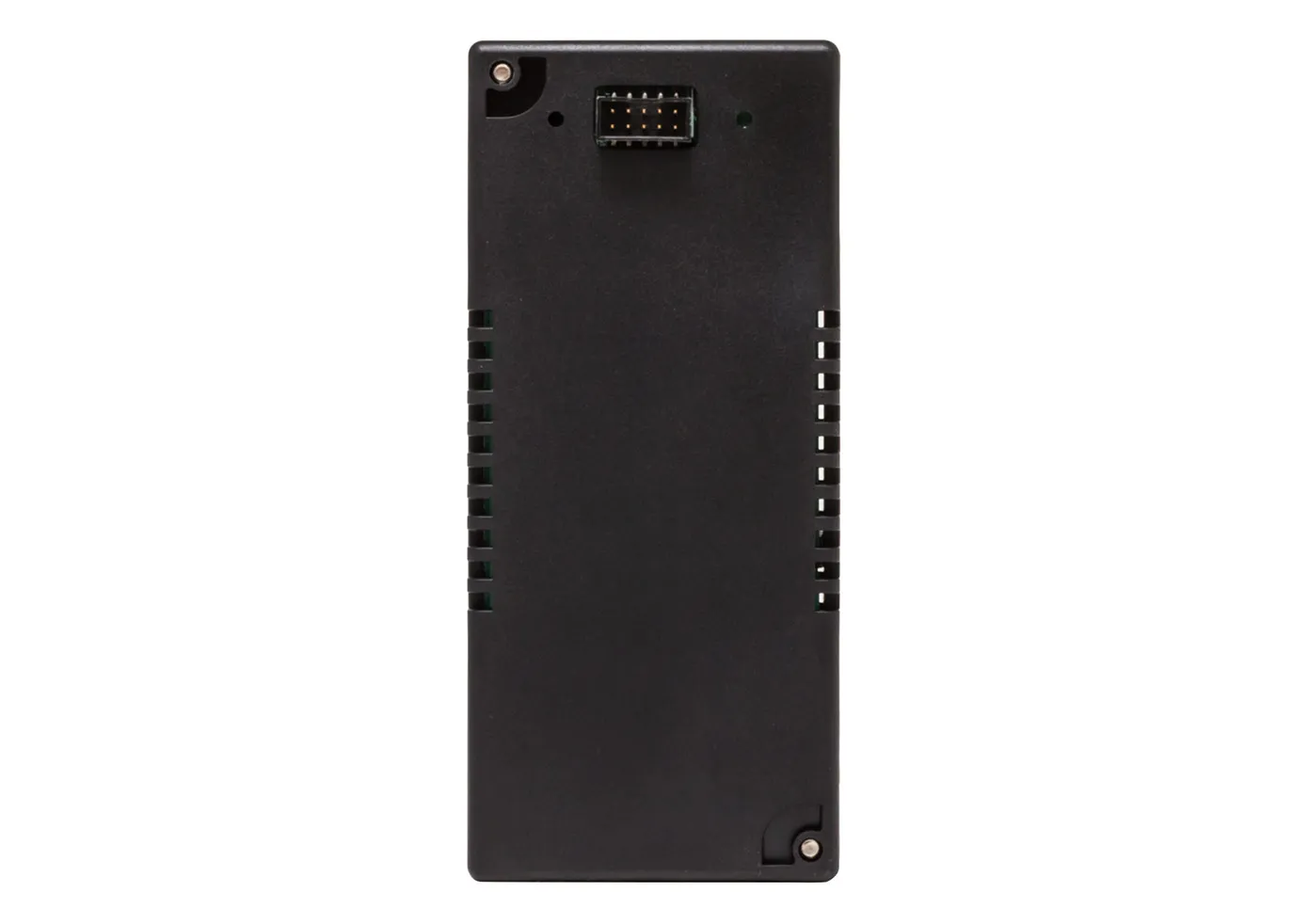

I/O Module | 12 Bi-Directional Digital Inputs, 10 Digital Outputs, 2 Analog Inputs, 1 Analog Output

$180.00

As part of the HMC2000 and HMC4000, this I/O module expands the capabilities of the HMI for increased PLC functionality. Mix and match additional I/O modules to meet your unique project needs. 12 DI, 10 DO, 2 AI, 1 AO

HMI+PLC Training videos offering step by step instructions.
HMI+PLC Sample projects to jumpstart your familiarity with Mapware7000.
US-based technical support.

HMC3-M1210Y0201-V2 Highlights

12 Bi-Directional Digital Inputs (2 High Speed (Quadrature, Standard))
10 Digital Outputs (8 Relay, 2 PNP, 1 PWM (Normal, CW/CCW, Pulse/Direction and Fixed Pulse))
2 Analog Inputs (Voltage/Current)
1 Analog Outputs (Voltage/Current)
Class I, Division 2 Rated

View Datasheet Download Software

Datasheet 3D CAD File

Power Supply

Voltage Rating	24VDC (±15%), 12V from base
Power Rating	Input/channel: 24VDC, 5mA typical Output/Channel: 250mA @ 24VDC
Isolation	Optical Isolation for all I/O points. High isolation voltage (BV= Greater than 1.5 KV)

Digital I/O

High Speed Inputs (HSC)	2 pairs
Max Input Frequency (HSC)	200kHz
High Speed Output (PWM)	1
Max Output Frequency (PWM)	1kHz
Number of Inputs	12 Inputs Bi-directional Type
Input Design	According to EN 61131-2 Type 1
ON Voltage	Min.: 15VDC, Max.: 30VDC
OFF Voltage	Min.: -3VDC, Max.: 5VDC
Nominal Input Voltage	24VDC
Nominal Input Current	5mA typical
Input Response Time	ON: 10msec, OFF: 10msec
Input Impedance	4.8 KΩ
Number of Outputs	2 PNP type transistor outputs and 8 Relay type outputs
ON Output Voltage	Min ON: 22VDC, Max. ON: 30VDC (Voltage across load)
Nominal Output Voltage	30VDC
Nominal Output Current	250mA type/channel
Output Response Time	ON: 10msec, OFF: 10msec

Analog I/O

Analog Input Total Channels	2 Input channels (16 bit resolution)
Input Type	0-20mA, 4-20mA & 0-10VDC, 0-5VDC
Analog Output Total Channels	1 Output channels (12 bit resolution)
Output Type	0-20mA, 4-20mA and 0-10VDC, 0-5VDC
Accuracy	± 0.2% of full scale @ 25°

Environmental

Operating Temperature	0 to 60°C
Storage Temperature	-20 to 85°C
Humidity	10 to 90% (Non-Condensing)
Short Circuit Protection	Yes
Product Dimensions	48mm x 108mm x 35.7mm (W x H x D)

Certification

Class 1 Div 2	Yes
Approvals	CE, UL
