7.0" Dual-Ethernet Advanced HMI with CODESYS
cMT2078Xv2-CODESYS
$665.00
The cMT2078Xv2 with an activated CODESYS license is a powerful HMI that provides high performance for applications requiring a more advanced feature set, remote access, and IIoT functionality. Pair this operator interface with our remote IO for soft PLC functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT2078Xv2-CODESYS and other models.
- Volume discounts available. Contact sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Connect to +400 PLCs and Controllers.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
cMT2078Xv2-CODESYS Highlights
- TFT LCD with 800 x 480 Pixel Resolution
- Quad-Core 64-bit RISC, 1.5 GHz
- 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT, Sparkplug B, WebView, VNC
- Add an EasyAccess2.0 license for remote access
- Activated CODESYS License
- Pair with our remote IO for Soft PLC functionality
- UNBRANDED
System
| CPU | Quad-Core 64-bit RISC 1.5 GHz |
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |
I/O Ports
| Ethernet/LAN | 10/100 Base-T x 2 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| COM Port | 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-232/RS-485 2W*2 |
| RS-485 Dual Isolation | Yes |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
| Siemens MPI | N/A |
| Serial Ports | 2 |
Display
| Display Size | 7" TFT |
| Resolution | 800 x 480 |
| Luminance (cd/m^2) | 400 |
| Contrast Ratio | 800:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.7 M |
| Display Type | 7" TFT |
| Viewing Angle (H°/V°) | 160/140 |
| Size (W x H) | 6.02 x 3.39 inches [153 x 86 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
| Touch Panel Hardness Scale | N/A |
Electrical
| Input Power | 19.7 W |
| Power Isolation | Built-in |
| Power Dissipation | N/A |
| Current for Internal Bus | N/A |
| Current Consumption | N/A |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 820 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Black Plastic |
| PCB Coating | Yes |
| Dimensions WxHxD | 7.89 x 5.76 x 1.38 inches [200.3 x 146.3 x 35 mm] |
| Panel Cutout (inches) [mm] | 7.56 x 5.43 [192.0 x 138.0] |
| Weight | Approx. 1.32 lbs. [0.6 kg] |
| Mounting | Panel mount |
Environmental
| Operating Temperature | 32° ~ 131°F (0° ~ 55°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| CE UKCA | Yes |
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
Unboxing a cMT2078X
Watch as we unbox, show accessories & I/O ports on the HMI, then load a demo project.
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- cMT2078Xv2 Installation Guide
- EasyWeb 2.0 Operations Manual
- cMT Quick Start Guide
- CODESYS Quick-Start Guide
- Activate CODESYS on cMT Models
Certifications
- CE UK Declaration of Conformity – cMT2078X, cMT3072x2, cMT3072XH2
- UL-cMT Series
- RoHS all series
- REACH Certification
- Trade Agreement Act
- Russian Iron and Steel Declaration
- EU Declaration of Conformity (Battery Regulations)
- Country of Origin Certification
CAD Files

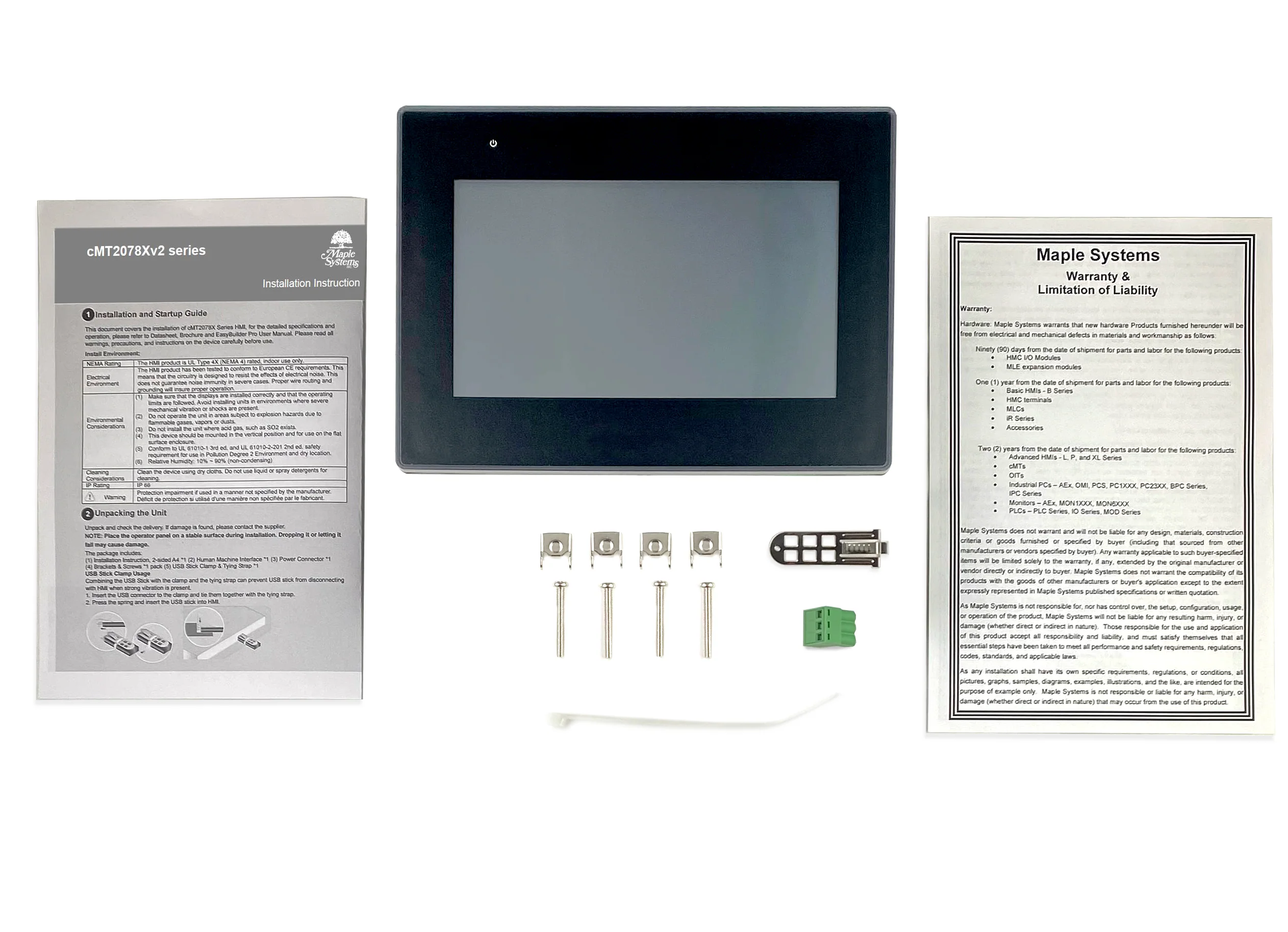

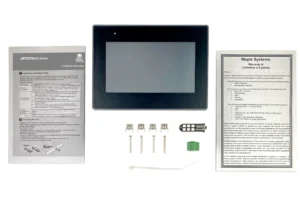

When you order the cMT2078Xv2-CODESYS the following items are included in the box:
- cMT2078Xv2 Touchscreen HMI with activated CODESYS license
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
- Mounting Clips
- USB Stick Clamp & Tying Strap
