10.1" WiFi Capable Advanced HMI
cMT2108X2v2
$925.00

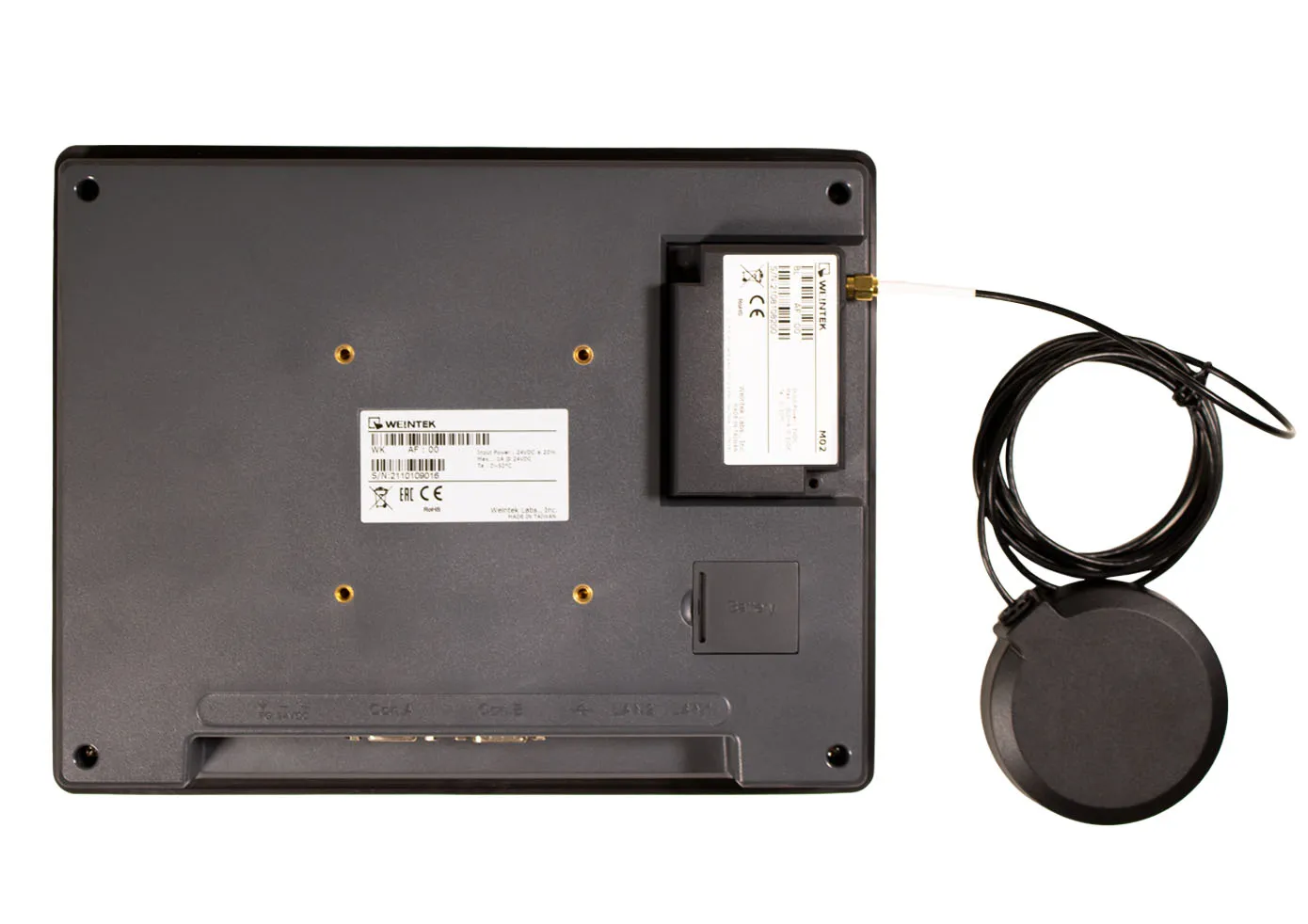

Our cMT2108X2v2 is an innovative, flexible, dual ethernet operator interface. When coupled with the M02 Wi-Fi Expansion Module, the result is a flexible connectivity solution consolidated into a single package. Pair this touch panel HMI with our remote IO and CODESYS license for soft PLC functionality. With a sleek blank overlay, integrating this HMI into your machine is easy.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT2108X2v2 and other models.
- Volume discounts available. Contact sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Connect to +400 PLCs and Controllers.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
cMT2108X2v2 Highlights
- 1024 x 600 Resolution
- Wifi Capable via Expansion Module*
- 32-bit RISC Quad-Core Cortex-A17, 1.6 GHz CPU

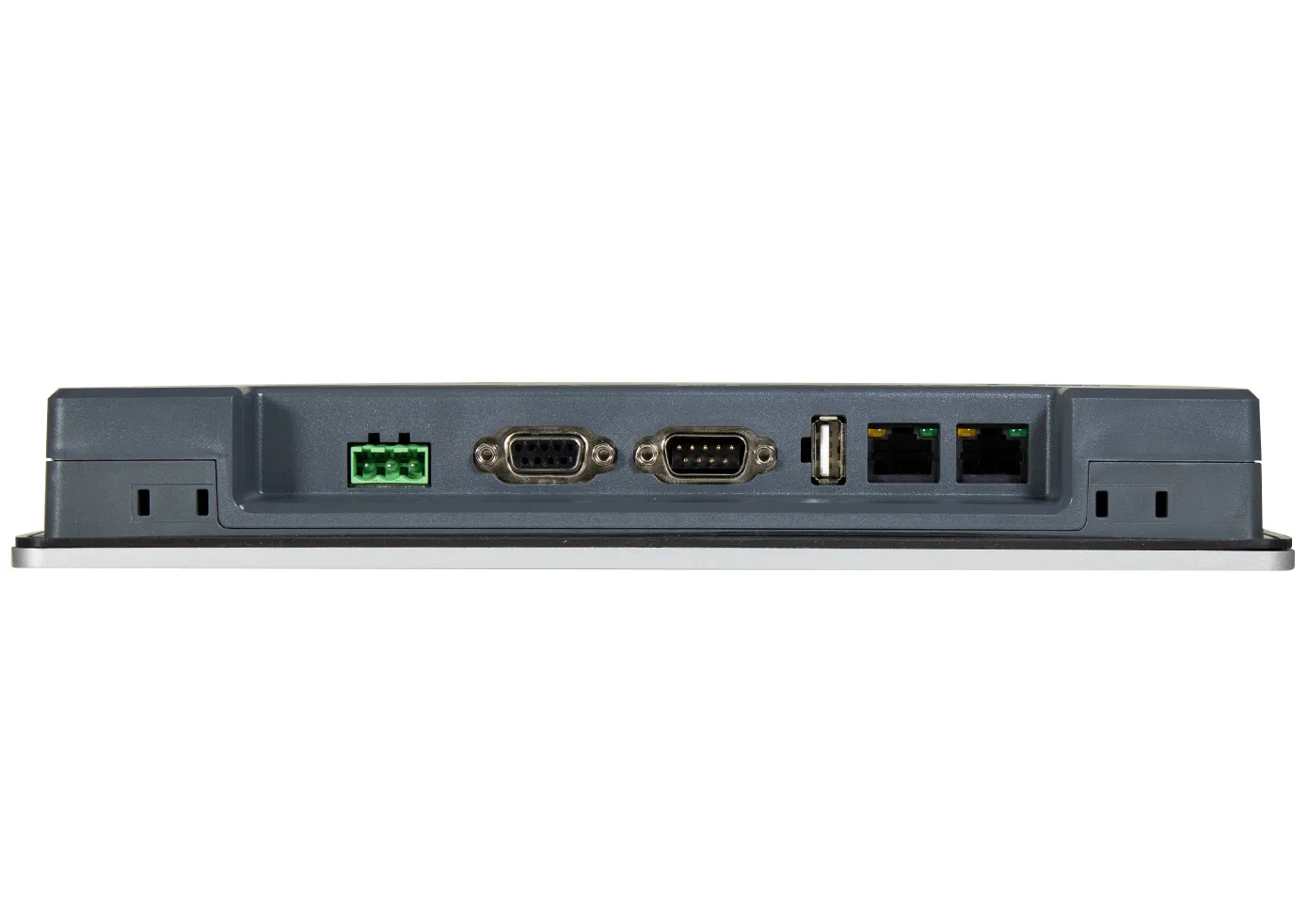

- 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT, Sparkplug B, WebView, VNC
- Add an EasyAccess 2.0 license for remote access
- Pair with our remote IO for CODESYS functionality
- UNBRANDED
System
| CPU | Quad-Core RISC |
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |
I/O Ports
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | MO2 Wifi – Expansion Module (Optional) |
| COM Port | 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 |
| HDMI Port | N/A |
| Video Input | N/A |
| Serial Ports | 2 |
Display
| Display Size | 10.1" TFT |
| Resolution | 1024 x 600 |
| Luminance (cd/m^2) | 350 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| View Angle (H° V°) | 160/140 |
| Display Type | 10.1" TFT |
| Viewing Angle (H°/V°) | 160/140 |
| Size (W x H) | 8.82 x 4.96 inches [224 x 126 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
| Touch Panel Hardness Scale | N/A |
Electrical
| Input Power | 24 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.67 x 8.39 x 1.50 inches [271 x 213 x 38 mm] |
| Panel Cutout (inches) [mm] | 10.24 x 7.95 [260 x 202] |
| Weight | Approx. 2.65 lbs. [1.2 Kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| CE UKCA | Yes |
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
Unboxing a cMT2108X2v2
We'll explore the main features of the 10.1-inch HMI, power it on, and upload a project.
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- cMT2000/3000X Series User Manual
- EasyWeb 2.0 Operations Manual
- cMT Quick Start Guide
- cMT2108X2v2 Installation Guide
- CODESYS Quick-Start Guide
- AWS IoT User Manual
- Azure IoT User Manual
Certifications
- UL-cMT Series
- CE UK Declaration of Conformity – cMT3102X, cMT2108X2, cMT3072XP, cMT3072XPW
- RoHS all series
- REACH Certification
- Trade Agreement Act
- EU Declaration of Conformity (Battery Regulations)
- Russian Iron and Steel Declaration
- Country of Origin Certification
CAD Files
When you order the cMT2108X2v2 the following items are included in the box:
- cMT2108X2v2 Touchscreen HMI
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
- Mounting Clips
- USB Stick Clamp & Tying Strap
