HMI functionality PLUS an Andon Message Board all-in-one unit

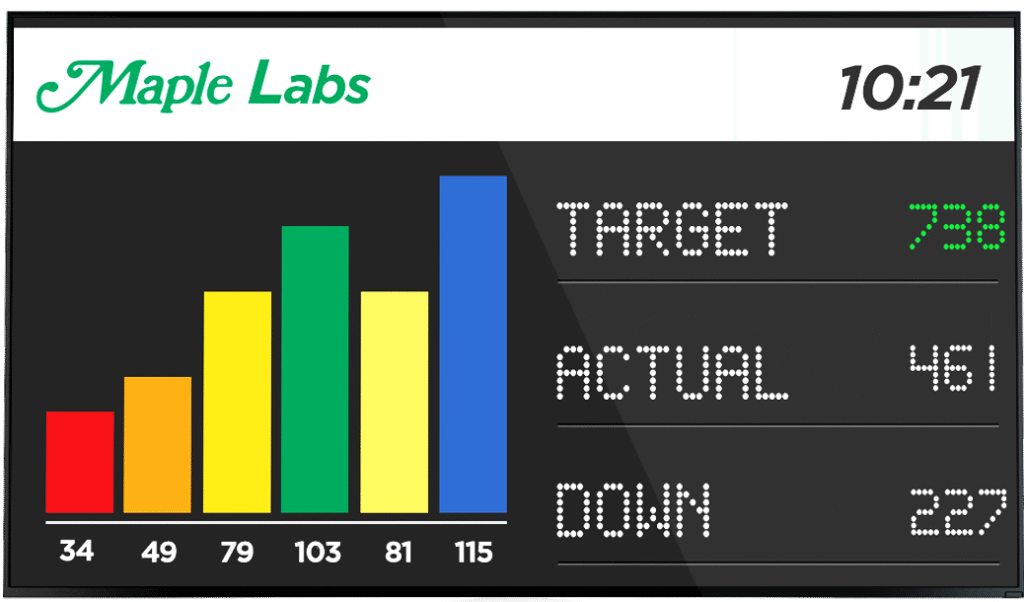

Andon or Annunciator System

The cMT-FHDX can be used as an Andon or Annunciator system, creating a Status Display Station. It can collect equipment and quality management data from the production line, process the data, and then send visualization and sound to a large screen monitor via HDMI, allowing real-time monitoring and control for onsite operators.

Andon systems are widely used in manufacturing plants for instant visual management. Alarm messages and key productivity indicators from production line can be collected, displayed and monitored in real-time. Overall Equipment Effectiveness (OEE) information can be displayed, and identifies the percentage of planned production time that is truly productive.

Pick your screen

Because the display is user selectable, you can choose the features you need in your display independent of the features you need in your HMI.

  • Choose a daylight readable display with an extended temperature range for outdoor applications.
  • Choose a less expensive but large display for indoor applications that just need to be viewable from far away.
  • Or choose to have no display at all for applications where you only need data logging or mobile access to the HMI through VNC.
  • You can even connect it to a projector for truly large display needs.

HMI Functionality

As a partner, we will be working towards the same goal. Communication is key!

A headless HMI is an HMI without a built-in touchscreen. Our Headless HMIs are controlled over the network and have a graphical interface that can be accessed from any PC or smartphone, or through a separate touch display or touch monitor.

The cMT-FHDX data processing unit is a fully functional Smart HMI and can be thought of as the “brain” data processing center which allows you to monitor and control your automation process.

By dividing the traditional all-in-one HMI into two parts: a data processing unit and a separate visual display. No longer is your screen size limited to the available HMIs on the market – you can now display your real-time production data on a large wall-mounted status display station, easily visible from any plant floor location.

The cMT-FHDX takes your process to the big screen with ease.

Powerful HMI Software

  • FREE full version software
  • Powerful out of the box IIoT features
  • Over 300 PLC & controller communication protocols
  • Over 40 quick start sample projects
  • Quick Start Guides and Video Training Center

Click here to learn more about our EBPro Configuration Software.

Easy Set-Up

Since designing the layout of screens and user-interface (UI) of the HMI is typically where most of the development time is spent, it is important to explore how EBPro makes this process easy.

Click here to learn more about the EBPro Programming Environment.

Software Feature

Incredible functionality right out of the box. Pick and place objects, pictures, and shapes; create trend display, graphs, XY plots, and pie charts; add passwords and security levels; assign communication (PLC) drivers easily; and more.

Click here to learn more about the software features in EBPro.

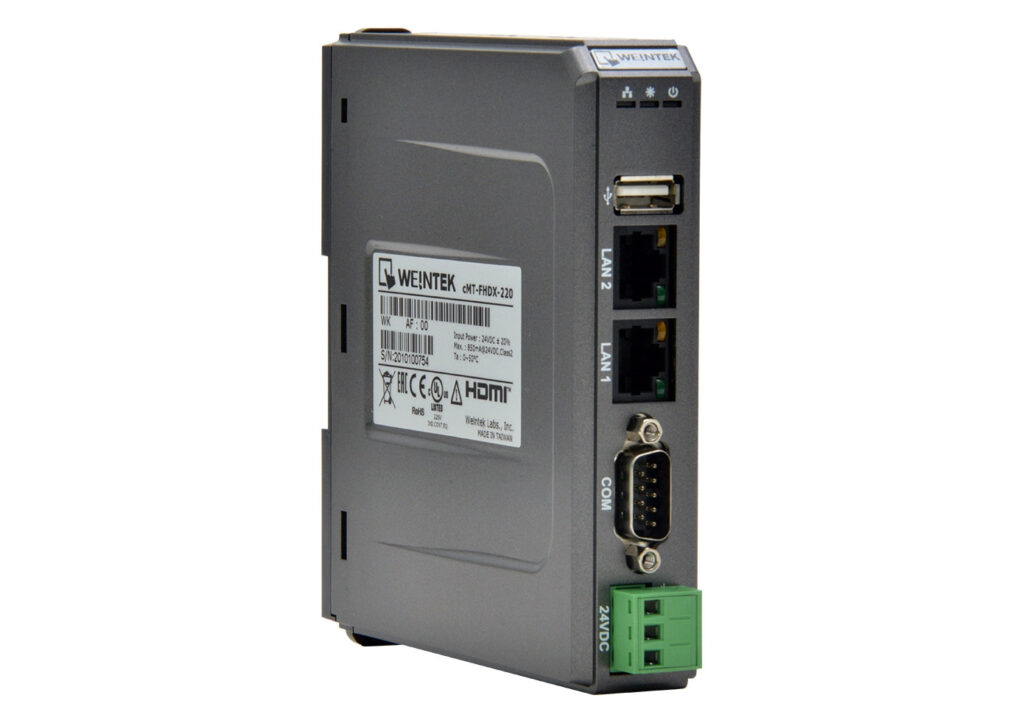

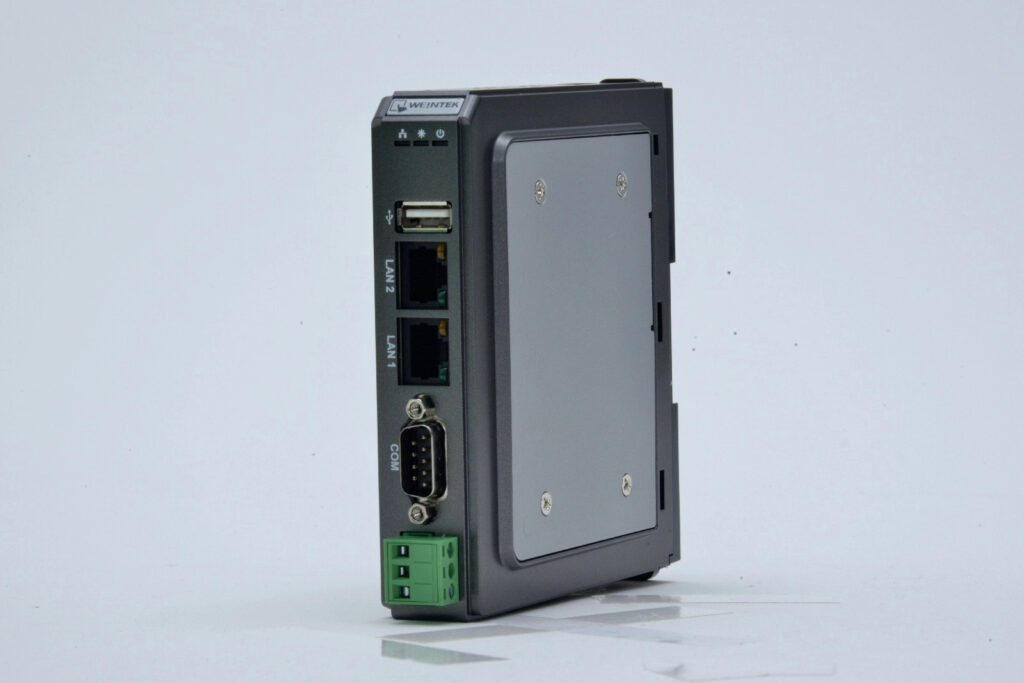

cMT-FHDX

This HDMI®-enabled unit works with screens of any size, making screen size no longer a limitation in your application. As part of the Smart Series, the cMT-FHDX has all the rich HMI functionality found in the Smart series without a the touchscreen display. Monitor PLC operations, gather data, and remotely access your control system via the cMT Viewer App on your Apple/Android smart phone, one of our smart displays, or your own tablet/laptop/PC.

Features

  • Full HD 1080P High Resolution Video Output
  • Control & Monitor from any Browser via Webview
  • MQTT, OPC-UA Client/Server, SQL Integration
  • EasyAccess 2.0 and CODESYS® Supported
  • Dual Ethernet Ports
  • DIN Rail Mount

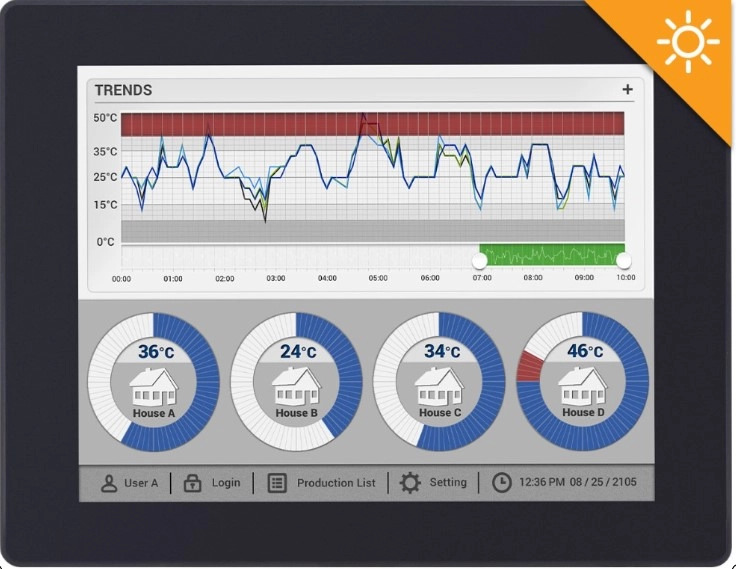

Touchscreen Monitors

Industrial touch screen monitors are designed and tested for harsher environments making them much more rugged, compared to typical “office” monitors. They are designed to withstand prolonged shock & vibration, a wide temperature range, and protection from water and dust. All of our monitors can be panel mount, or VESA mounted, depending on your application.

Our high brightness/sunlight readable monitors are ideal for applications in Industrial Automation, Healthcare, Finance/Banking, Education, Gaming/Entertainment, Home Automation, Retail, and Transportation, and pair easily with our Box PCs and Headless HMIs. All our monitors allow you to use gloves and act as touchscreens, reducing the need for a keyboard and mouse allowing for maximum freedom when designing a system.

Pick your screen

Because the display is user selectable, you can choose the features you need in your display independent of the features you need in your HMI.

  • Choose a daylight readable display with an extended temperature range for outdoor applications.
  • Choose a less expensive but large display for indoor applications that just need to be viewable from far away.
  • Or choose to have no display at all for applications where you only need data logging or mobile access to the HMI through VNC.
  • You can even connect it to a projector for truly large display needs.

PLC Support

With over 300 PLC & Controller communication protocols, our HMIs will easily integrate with your preferred PLC brand Including Allen-Bradley, Siemens, Omron, Emerson, GE, Panasonic, Mitsubishi and all the major protocols is a few clicks away. Creating a powerful edge gateway at a great price has never been easier.

See the full list of supported controller manufacturers

Upgrading from a RMI5001 to a cMT-FHDX

In 5 easy steps you can convert your existing RMI5001 project to the cMT-FHDX.

Refer to Tech Note 5142 for step-by-step instructions, located in our Support Center

The cMT-FHDX has all the same features and functionality as the RMI5001 PLUS MORE:

  • Higher HDMI Output, up to 1920 x 1080 resolution
  • Faster processor, more memory
  • 2 Ethernet ports
  • More Software features, including IIoT features

Are you upgrading? Contact our sales team for special pricing on the cMT-FHDX

For a complete list of comparable features, see our compare models table.
