HMC and Maple Systems PLC
Sample Project Description

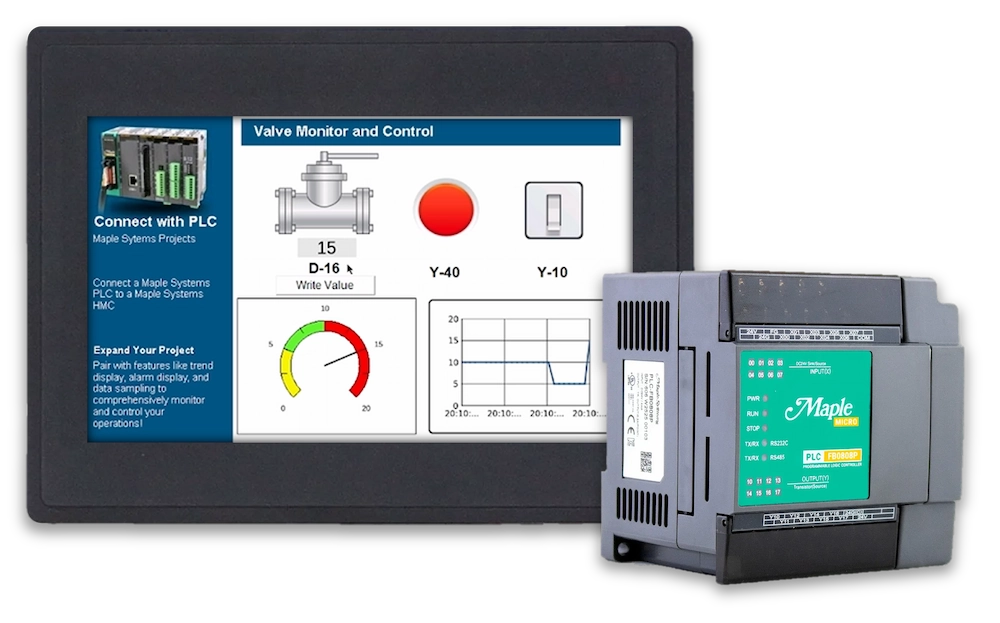

In this integration tutorial, you’ll learn how to connect a Maple Systems HMI + PLC unit to a Maple Systems PLC. We’ll cover all the configuration steps in MAPware-7000 and MapleLogic for both serial and Ethernet connections, as well as data manipulations you’ll need on the HMI + PLC side.
Required Software
Ensure you have the necessary software and version installed to use this sample project correctly.
- Software Name: MAPware-7000, MapleLogic
- Minimum Software Version: MAPware-7000 v2.36 July. 2024, MapleLogic v8.21.29
Sample Project File(s)
Download the project files in .zip format. Extract the contents before using them in the required software.
