8" Intel® Celeron® Fanless Panel PC with Capacitive Touch

OMI6808CP
— Leave a Review
$1,650.00
Configure PC

With a solid state platform and fanless cooling system, this 8″ capacitive touchscreen industrial computer is ideal for space-constrained applications. The OMI6808CP provides a high-quality, rugged, extended operating temperature (-20°~ 60°C) PC option for applications requiring a UL listing. With Windows® 10 & 11 options, this IPC supports 3rd party SCADA software like SIMATIC WinCC, Ignition, FactoryTalk®, & Aveva Edge®

Compare OMI6808CP to similar products

Share the product:
  • 8" Intel® Celeron® Fanless Panel PC with Capacitive Touch - Maple Systems - Front View
  • What's in the box, OMI6808

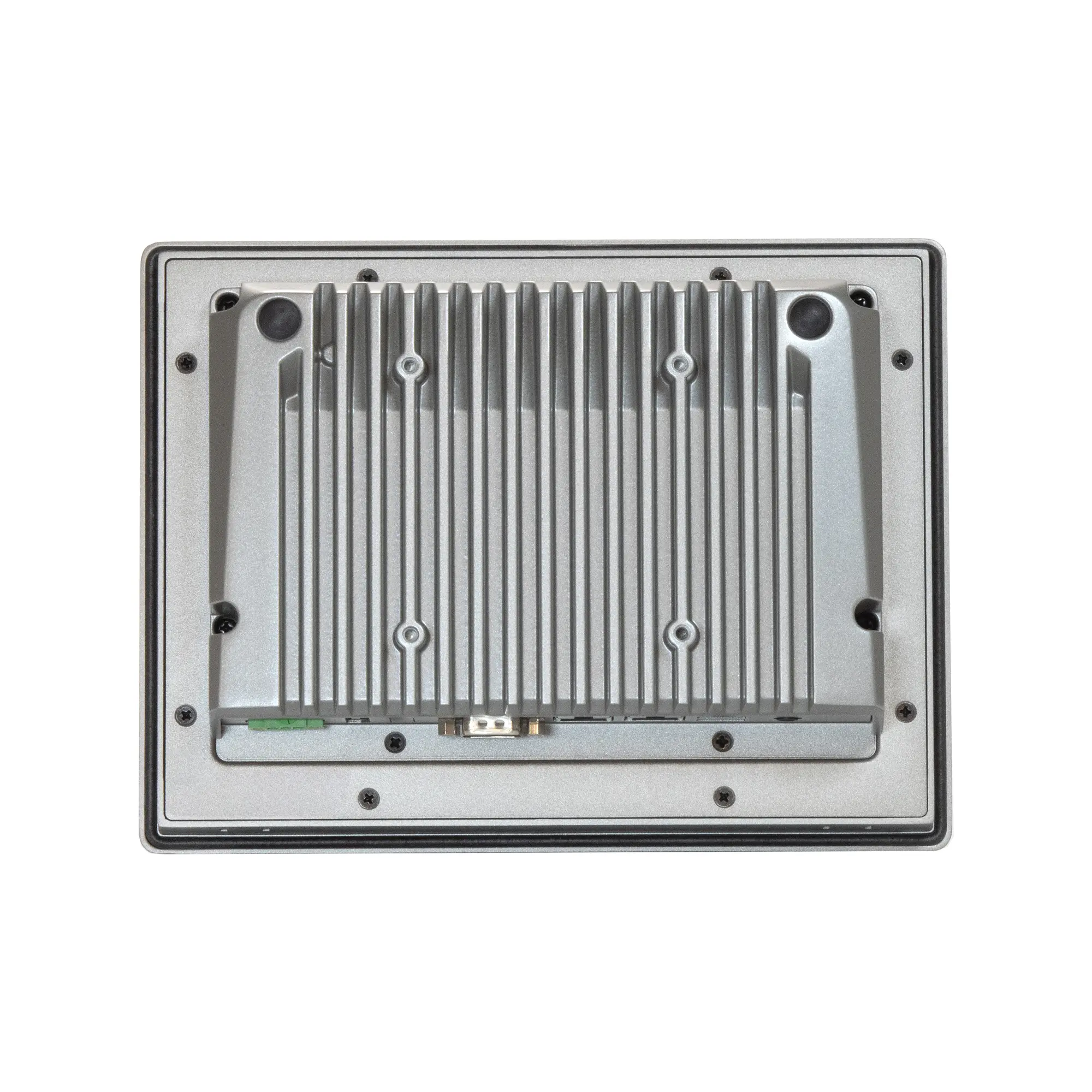

  • Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage rear view showing VESA mounting holes and heatsink

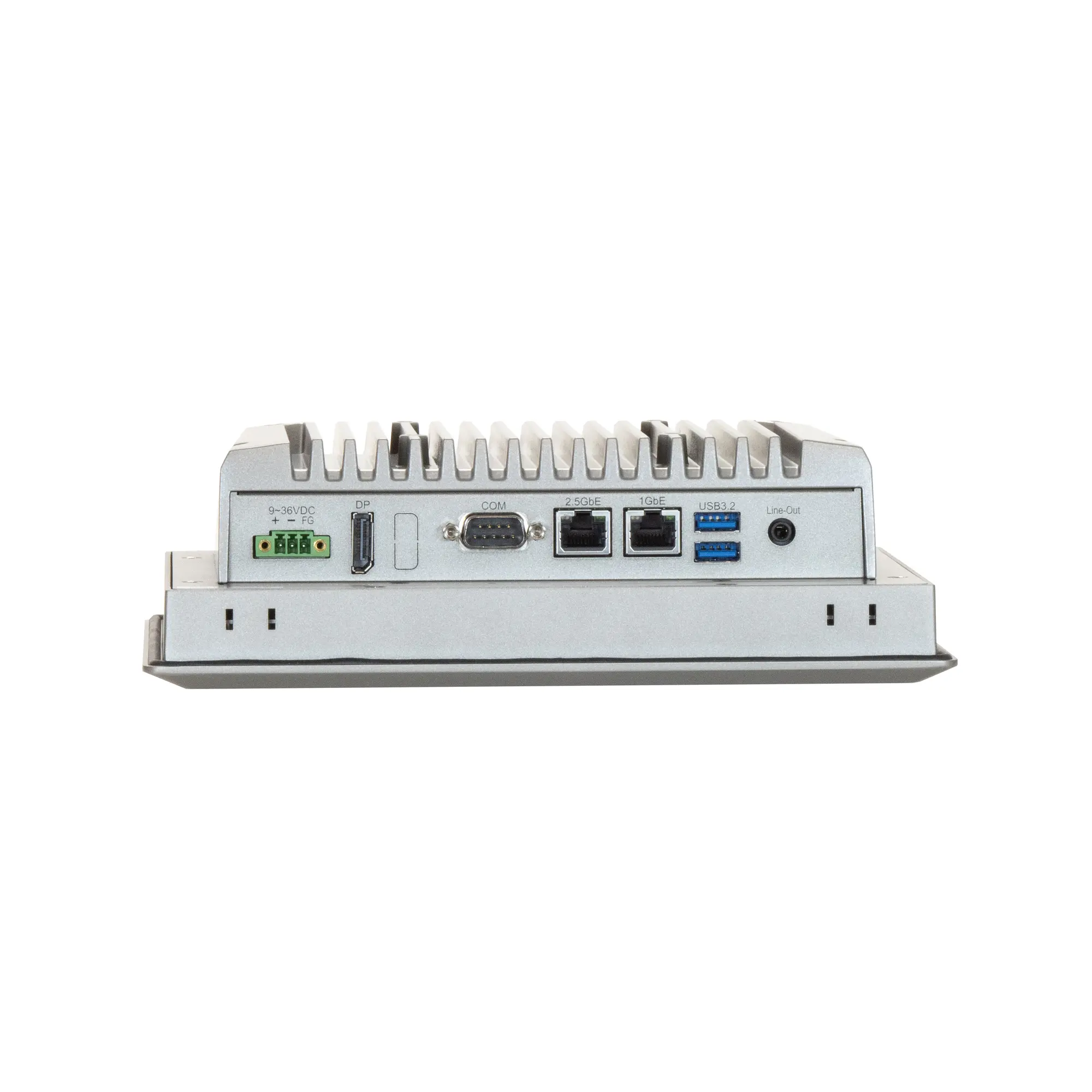

  • Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage bottom view showing available IO ports.
8" Intel® Celeron® Fanless Panel PC with Capacitive Touch - Maple Systems - Front View
What's in the box, OMI6808
Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage rear view showing VESA mounting holes and heatsink

Media Gallery

8" Intel® Celeron® Fanless Panel PC with Capacitive Touch

  • 8" Intel® Celeron® Fanless Panel PC with Capacitive Touch - Maple Systems - Front View
  • What's in the box, OMI6808
  • Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage rear view showing VESA mounting holes and heatsink
  • Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage bottom view showing available IO ports.

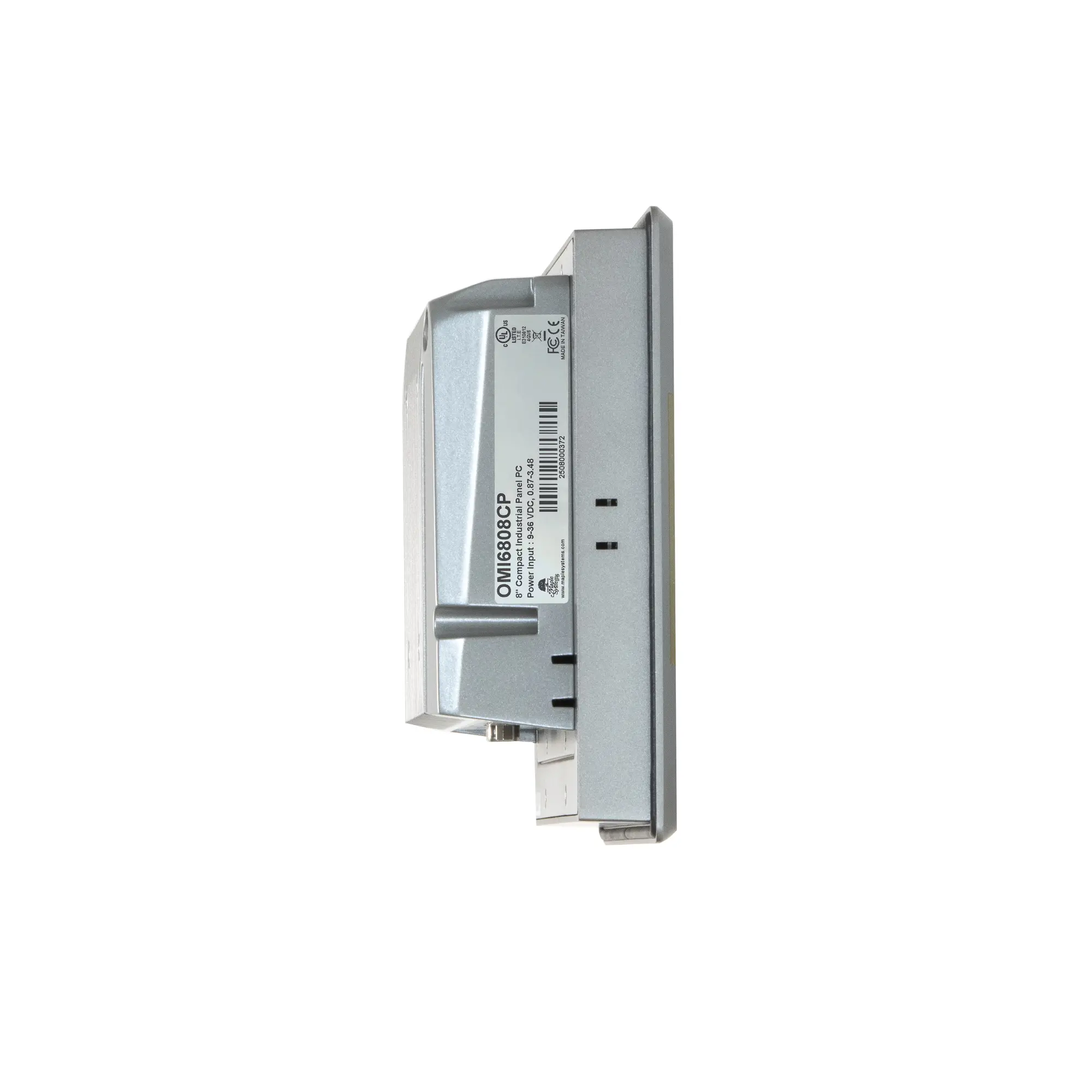

  • Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage side view showing mounting slots and product label placement
  • Video thumbnail
  • Video thumbnail
8" Intel® Celeron® Fanless Panel PC with Capacitive Touch - Maple Systems - Front View
What's in the box, OMI6808
Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage rear view showing VESA mounting holes and heatsink
Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage bottom view showing available IO ports.
Maple Systems OMI6808CP 8" Industrial Panel PC with Windows or Linux OS, up to 32GB RAM and up to 2TB Storage side view showing mounting slots and product label placement

Capacitive/Glove Friendly

Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.

Watch on YouTube

OMI6800CP Series Unboxing

We’ll review what comes in the box, all the other sizes available, the I/O ports and some of the available features.

Watch on YouTube

OMI6808CP Highlights

  • 800 x 600 Resolution
  • Intel® Celeron®  J6412 2.0GHz Quad Core Processor
  • 8GB up to 32GB RAM, 128GB up to 2TB SSD
  • Microsoft Windows® 10, 11, Linux® OS Options
  • Wi-Fi Kit upgrades available
  • Aluminum Enclosure, VESA or Panel Mount
View Datasheet

This product:
Total price: N/A

The base options are selected by default. Select the options to get the desired configuration.

Compare “Intel® Quad-Core Celeron® J6412 @ 2.0 GHz” performance with other processors

Relative CPU performance scores provided by PassMark

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, PCS6800APHEB, PC8100 Series and Windows Rugged Tablets.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise LTSC 64-bit (EPKEA)

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 11 IoT Enterprise Embedded LTSC 2024 is a targeted use version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cybersecurity, organizational deployment, and device management. Designed for environments requiring stability and reduced disruptions.

The Long-Term Servicing Channel (LTSC) version ensures stability and long-term consistency, differing from standard Windows 11 by offering security/quality updates without adding miscellaneous features and disruptions. With a 10-year support schedule to update the operating system components, LTSC is ideal for long-term controlled environments and fixed-function devices.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise LTSC 64-bit (PKEA)

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet.

For video instructions, click on the link to View License Activation Tutorial.

Microsoft® Windows® 11 IoT Enterprise Embedded LTSC 2024 is a targeted use version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cybersecurity, organizational deployment, and device management. Designed for environments requiring stability and reduced disruptions.

The Long-Term Servicing Channel (LTSC) version ensures stability and long-term consistency, differing from standard Windows 11 by offering security/quality updates without adding miscellaneous features and disruptions. With a 10-year support schedule to update the operating system components, LTSC is ideal for long-term controlled environments and fixed-function devices.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 11 Pro 64-bit

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet.

For video instructions click on the link to View License Activation Tutorial.

Windows® 11 Pro is Microsoft’s current gold standard for PC computing. All the features and functionality that customers expect to find on their desktop PC are available in this version as well as the addition of Copilot, the Windows® AI companion for users. Windows® 11 Pro also features a new enhanced hardware security standard to help protect your PC.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
Reset Configuration

Current Configuration

Base Price

OMI6808CP

 $1650.00

Display

 Included

Processor

 Included

System Memory

 Included

Storage

 Included

Operating System

 Included

Expansion Kit

 Included
Part Number

Datasheet2D CAD File3D CAD File

System

CPU
Intel® Quad-Core Celeron® J6412 @ 2.0 GHz
Memory (RAM)
1 x DDR4 260-pin SO-DIMM RAM (8, 16, 32 GB)
System Chipset
SoC
Solid State Drive Type
1 x M.2 2280 3D TLC SATA3
Solid State Drive Capacity
128, 256, 512 GB, 1TB, 2TB SSD
TPM Module
Yes (TPM 2.0)

I/O Ports

USB 3.2 Type A
2
Power
3 pins terminal block connector, DC power input
Ethernet/LAN
1 x GbE RJ-45
1 x 2.5 GbE RJ-45
Audio Output
1 x 3.5 mm line out
SD Card Slot
N/A
Remote Power Switch
N/A
Display Output
1 x DisplayPort 1.4 (max 4096 x 2160 pixels @ 60Hz)
Serial Ports
1
Serial Options
1 x RS-232/422/485 DE-9P, COM1 (default RS-232)
Expansion Option
Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support

Display

Display Size
8.0” SVGA TFT LCD
Resolution
800 x 600
Luminance (cd/m^2)
450
Contrast Ratio
500:1
Backlight Lifetime (hrs)
40,000+
Colors
262 K
View Angle (H° V°)
140/130

Touch Screen

Touch Interface
USB
Light Transmission
90+%
Optical Bonding
N/A
Touch Screen Type
Projected Capacitive

Electrical

Input Power
31.32 W
Input Voltage
9-36 VDC
Input Current
0.87 – 3.48 A

Mechanical

Enclosure Material
Silver aluminum front bezel and chassis
Dimensions WxHxD
9.09 x 6.93 x 2.72” [231 x 176 x 69 mm]
Panel Cutout (inches) [mm]
8.74 x 6.57” [222 x 167 mm]
Weight
~ 4.85 lbs [2.2 kg]
Mounting
Panel mount, VESA 75 x 75 mm

Environmental

Shock Resistance
Tested to IEC 60068-2-27 (2008): 15G acceleration peak to peak, XYZ axis, 11ms pulse duration
Vibration Resistance
Tested to IEC 60068-2-64 (2019): 5~500Hz, 1.0 Grms, XYZ axis, 30 mins duration
Altitude (Air Pressure)
Up to 2,000 Meters (~80 kPa)
Operating Temperature
-4~140°F [-20~60°C]
Storage Temperature
-22~158°F [-30~70°C]
Relative Humidity
10 to 95% @ 40°C, non-condensing

Certification

NEMA Rating
NEMA 4 when panel mounted
IP Rating
IP66
CE
Yes
UL
cULus Listed
ATEX
No
RoHS
Yes
FCC
FCC Class A

Capacitive/Glove Friendly

Our Rugged, Industrial Panel PCs with Capacitive Touchscreens are Glove Friendly, watch as we demonstrate with our OMI6900 Series Panel PC.

Watch on YouTube

Rugged Panel PC's

A glimpse at what our Panel PCs offer

Watch on YouTube

Customers who bought this product also bought:

When you order the OMI6808CP the following items are included in the box:

  • OMI6808CP Industrial Panel PC
  • Warranty Statement
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • Mounting Kit (Quantity determined by screen size)
http://What's%20in%20the%20box,%20OMI6808
