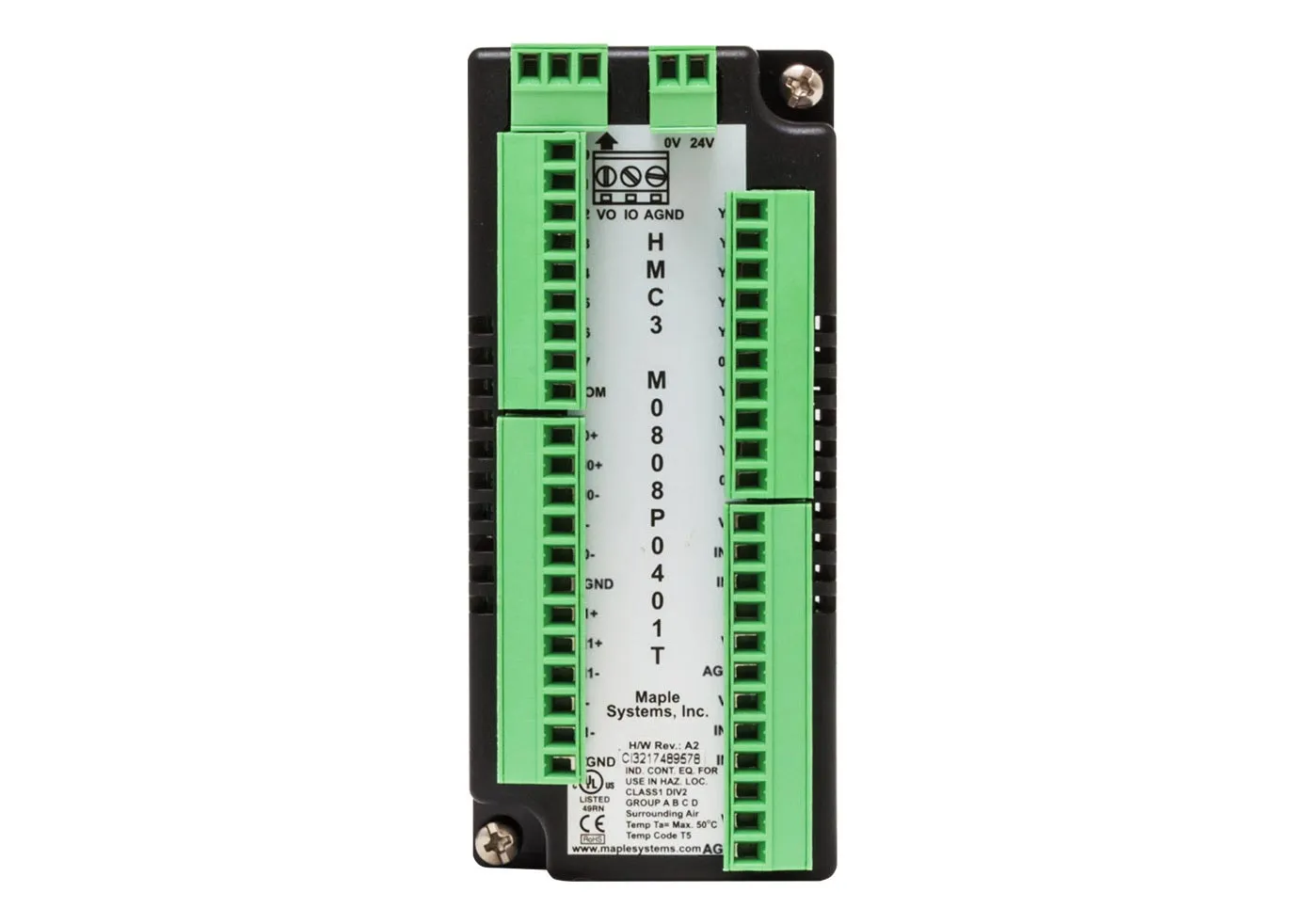

HMC3-M0808P0401T Front View

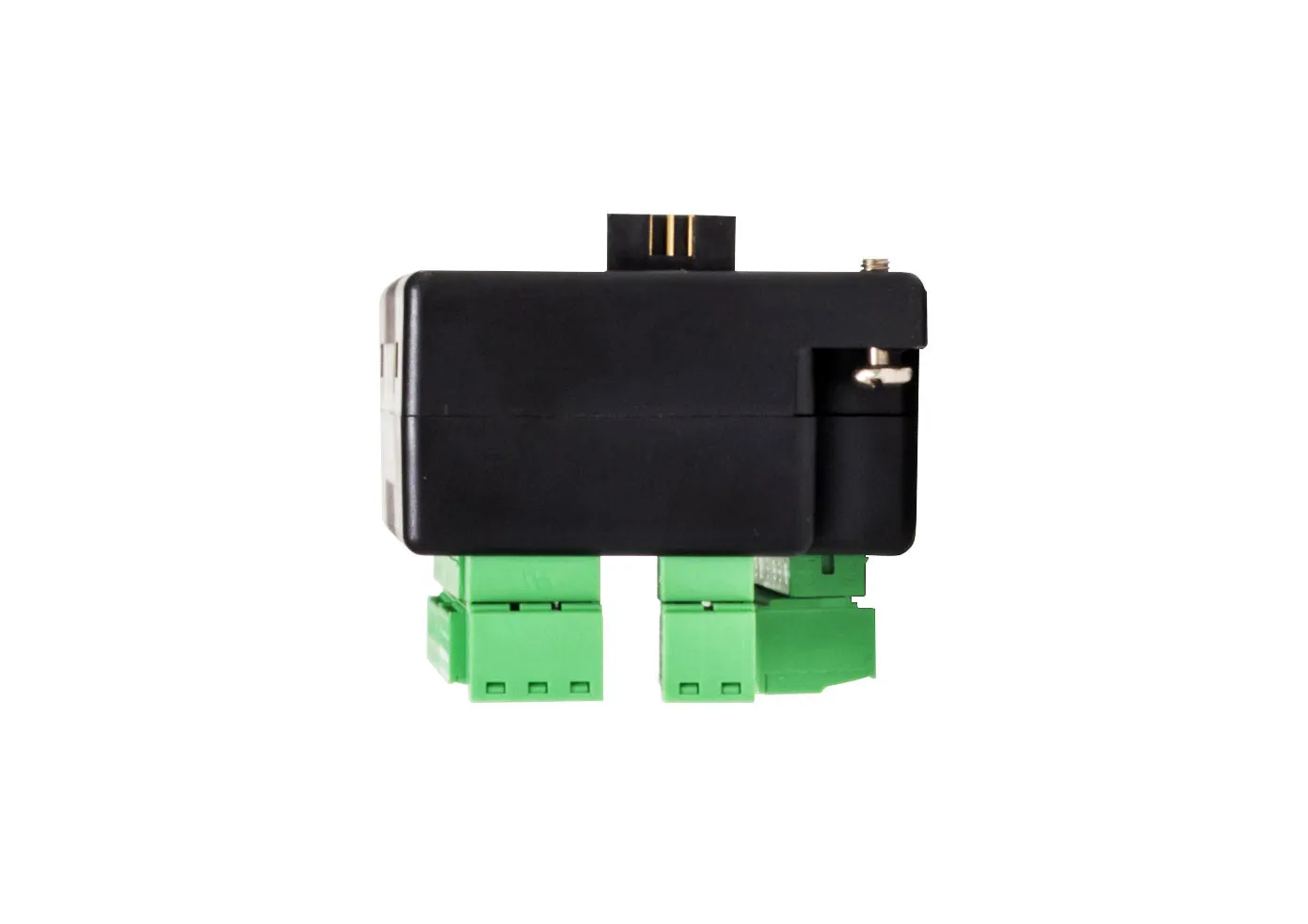

HMC3-M0808P0401T Bottom View

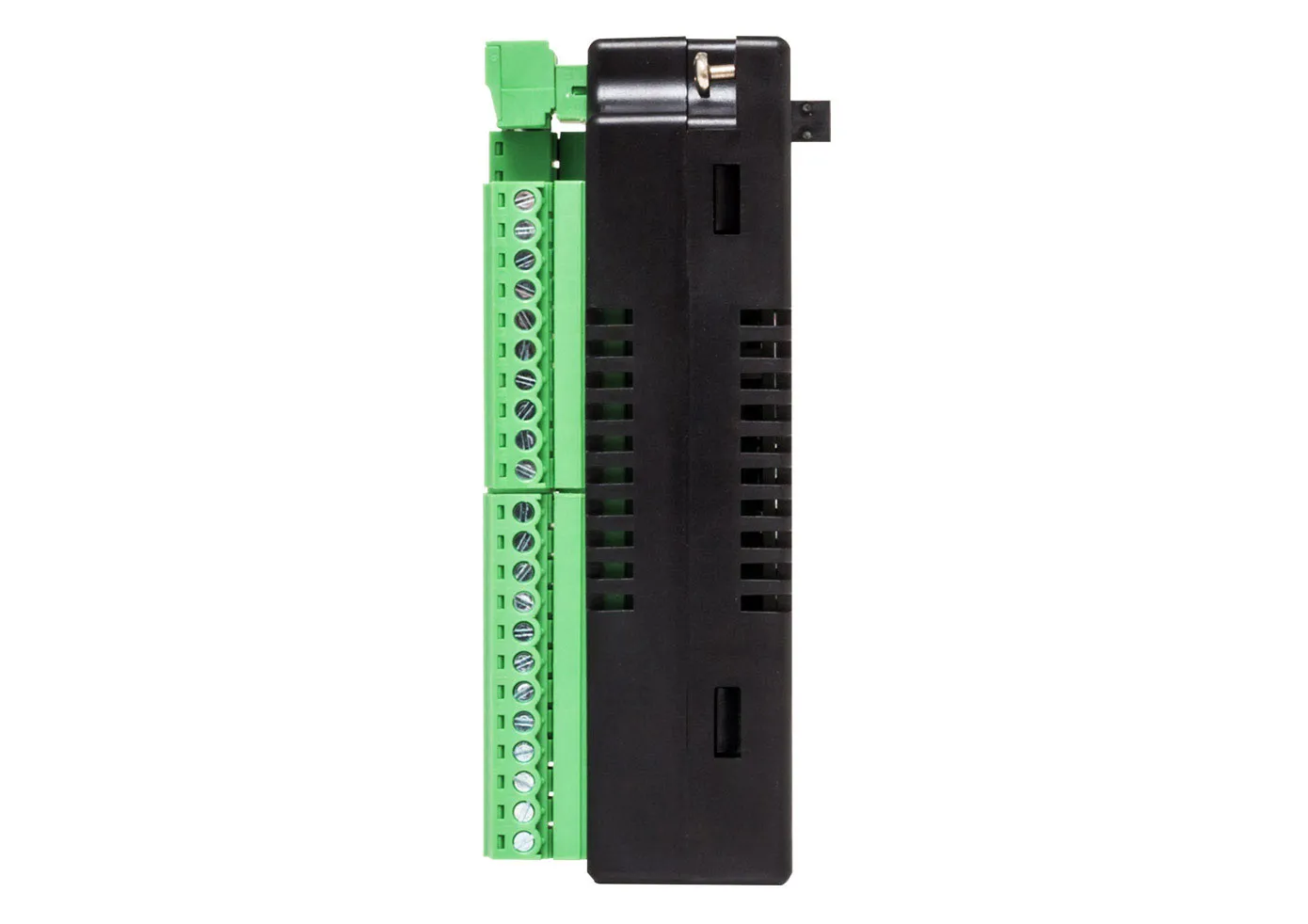

HMC3-M0808P0401T side View

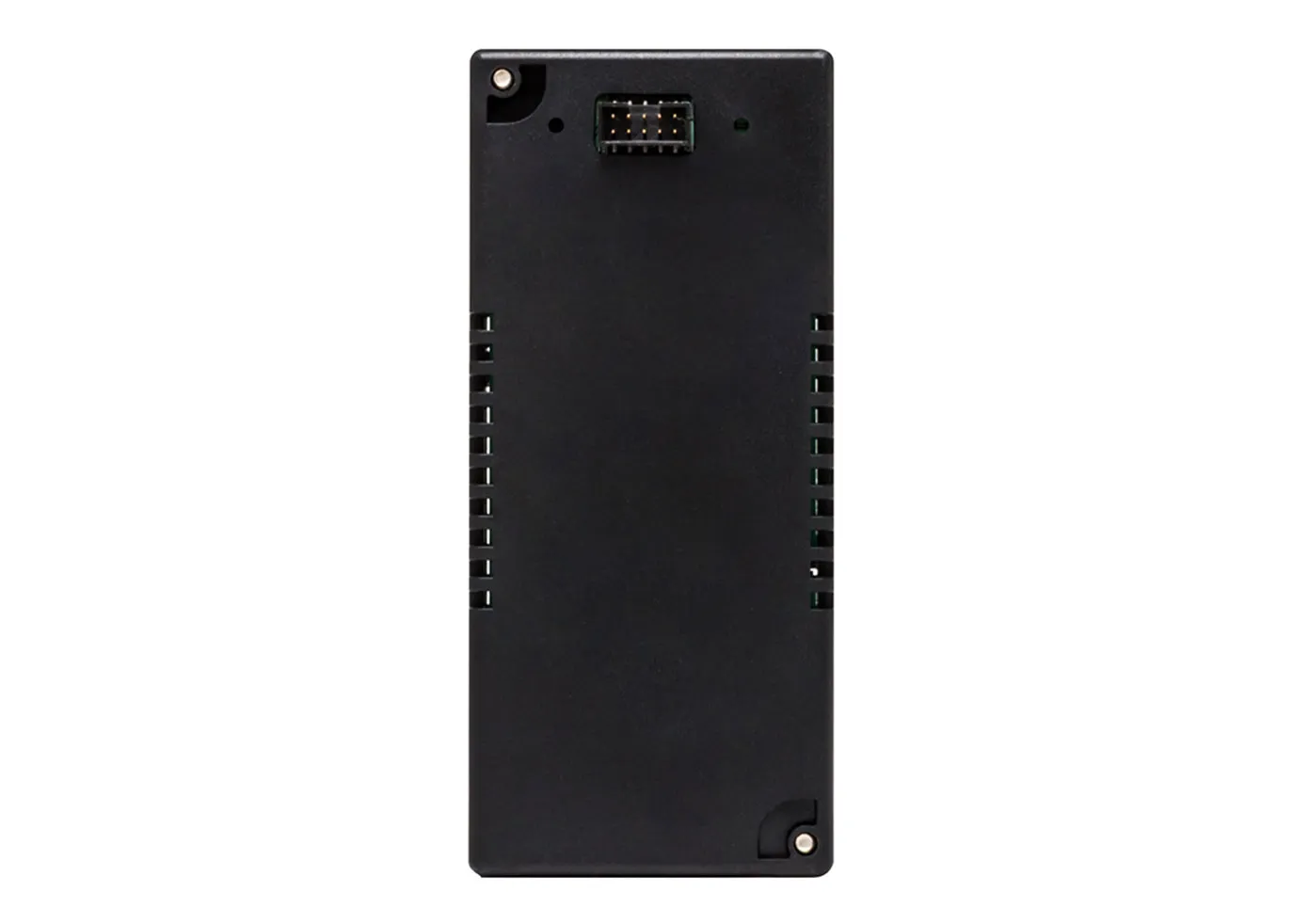

HMC3-M0808P0401T Back View

I/O Module

HMC3-M0808P0401T-V2

There is no direct replacement for this item. See HMC3-M0808Y0401T-V2 as a possible upgrade option.

Can customers use the M0808Y0401T-V2 module to replace their M0808P0401T-v2 module?

  • Yes, if they were using 2 digital outputs or less on their HMC3-M0808P0401T module. However, the customer would need to convert their application to the Y-type module. The converting process includes exporting and importing logic/screens to a new project and then allocating to the correct module. The process is described in Tech Note #7020 and is only valid for conversion using the same HMC series, if going from HMC4 – HMC2, only exporting and importing logic is possible.
  • No, if they are using more than 2 digital outputs of the P-type module. They would need an additional module that has more digital sourcing outputs.

This is a Legacy product and is no longer available for purchase. Please review the information on this page and call (425)-745-3229 or email [email protected] if you have further questions.

Share the product:

Filters
Product Image
View Product
Product Image
View Product

There is no direct replacement for this item. See HMC3-M0808Y0401T-V2 as a possible upgrade option.

Can customers use the M0808Y0401T-V2 module to replace their M0808P0401T module?

  • Yes, if they were using 2 digital outputs or less on their M0808P0401T module. However, the customer would need to convert their application to the Y-type module. The converting process includes exporting and importing logic/screens to a new project and then allocating to the correct module. The process is described in Tech Note #7020 and is only valid for conversion using the same HMC series, if going from HMC4 – HMC2, only exporting and importing logic is possible.
  • No, if they are using more than 2 digital outputs of the P-type module. They would need an additional module that has more digital sourcing outputs.

Can I pair an HMI+PLC (HMC) with a Maple Systems PLC?Absolutely. Maple Systems PLCs can communicate with an HMI + PLC (HMC) either with or without I/O modules attached to it. A potential application would be to have the PLC installed in a remote cabinet, while the HMC is mounted in a convenient location for the operator. With the HMC optional I/O modules, local control switches could be monitored and controlled by the HMC to reduce wiring complexity. Additionally, only one configuration software is required to program both units pieces. In IEC mode, Modbus is used to communicate between the PLC and HMC.
