IO-SA0400
- Compatible expansion with any Maple Modular PLC CPU
- RTD Module converts PT100, JPT100, PT1000, NI1000 into 14/16-bit digital value
- Auto detection for wire disconnection.

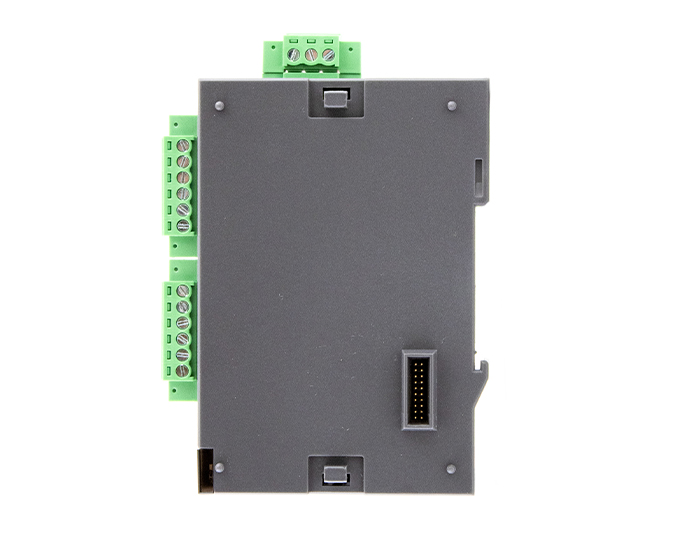

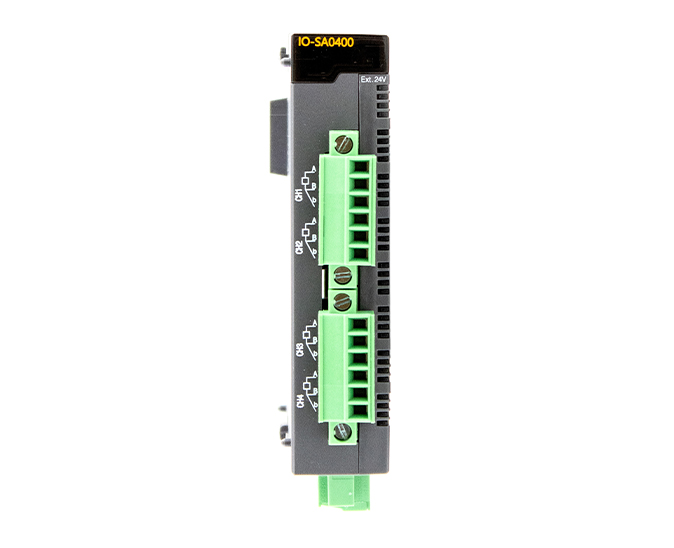

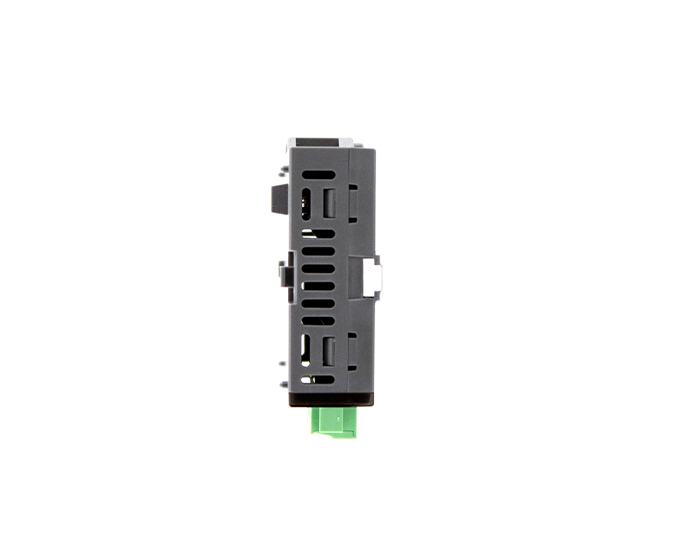

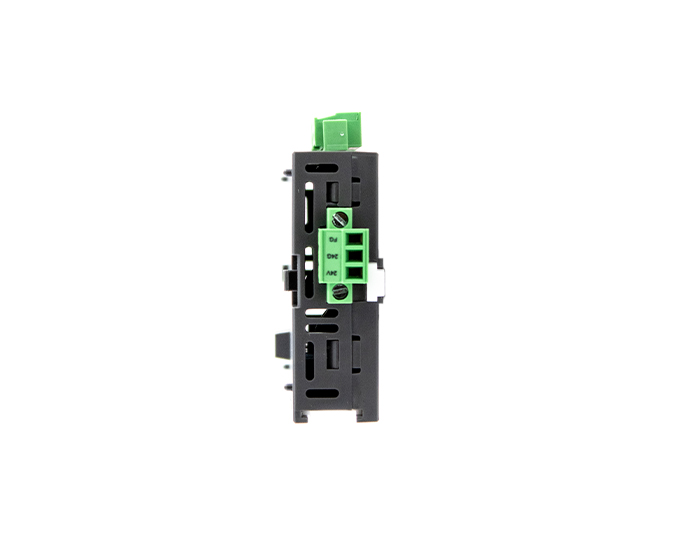

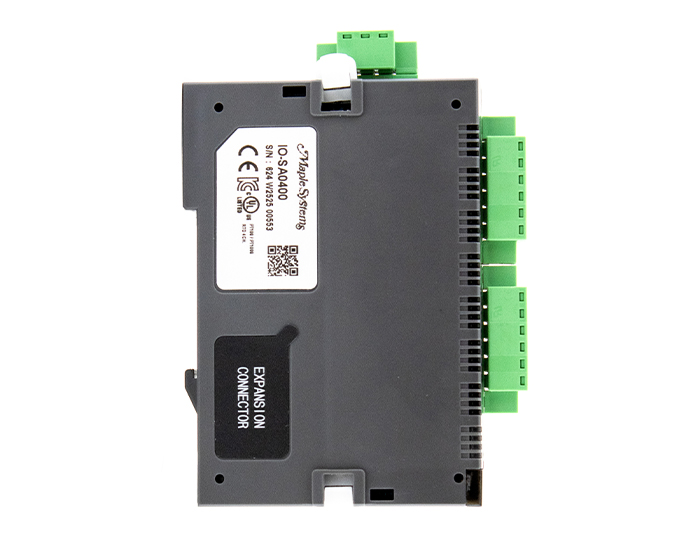

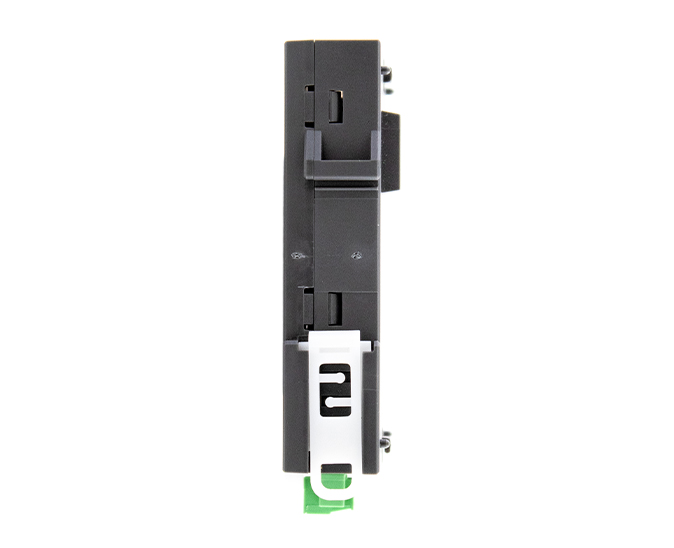

Analog RTD Module
IO-SA0400
$290.00
Analog RTD Module
- Volume discounts available. Contact sales for more details.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
Functional
| Type | RTD |
| Temperature Input Range | PT100: -200.0–600°C; JPT100: -200.0–600°C; PT1000: -200.0– 600°C; Ni1000 (DIN 43760): -50.0–160°C; Ni1000 (TCR 5000): -50.0–160°C |
| Wire Disconnection Detection | 3 wires per channel |
| Number of Input Channels | 4 |
| Max Conversion Rate | 40 ms/4 Channels |
| Insulation Type | Photocoupler between input terminal and PLC power |
| Accuracy | ±0.1% (full scale) |
Electrical
| Current Consumption +3.3V | 40 mA |
| Current Consumption +24V | 10 mA |
Mechanical
| Dimensions WxHxD | 90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in) |
| Weight | 153 g (0.34 lb) |
| Shock | 15G |
| Vibration | 0.5G – Continuous, 1G – Discontinuous |
| Square Wave Impulse Noise | ±2 kV |
| ESD Immunity | ±4 kV – Contact Discharges, ±8 kV – Air Discharges |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m |
| Surge Transient Immunity | 2 kV – CPU, Power; 2 kV – Digital I/O (VAC); 1 kV – Digital I/O (VDC); 1 kV – Communication |
Environmental
| Storage Temperature | -25 – 80 °C (-13 – 176 °F) |
| Operating Temperature | -10 – 65 °C (14 – 149 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
Certification
| CE | Yes |
| UL | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
PLC with Expansion Module
Unbox a PLC, add expansion modules, download a project, and show automatic I/O module detection
Customers who bought this product also bought:
-
Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.$50.00
FREE User Friendly PLC Software
Download our free, powerful PLC configuration software. Using your preferred programming language—Ladder Diagram, Instruction List, Sequential Function Chart, or Function Block—you can create your project, your way, for a one-of-a-kind control solution.
Documents
Manuals
- Temperature IO Module User Manual
- Analog IO Module User Manual
- Modular CPU Modules User Manual
- MapleLogic User Manual
Certifications
CAD Files
When you order the IO-SA0400 the following items are included in the box:
- IO-SA0400
- Product Manual
