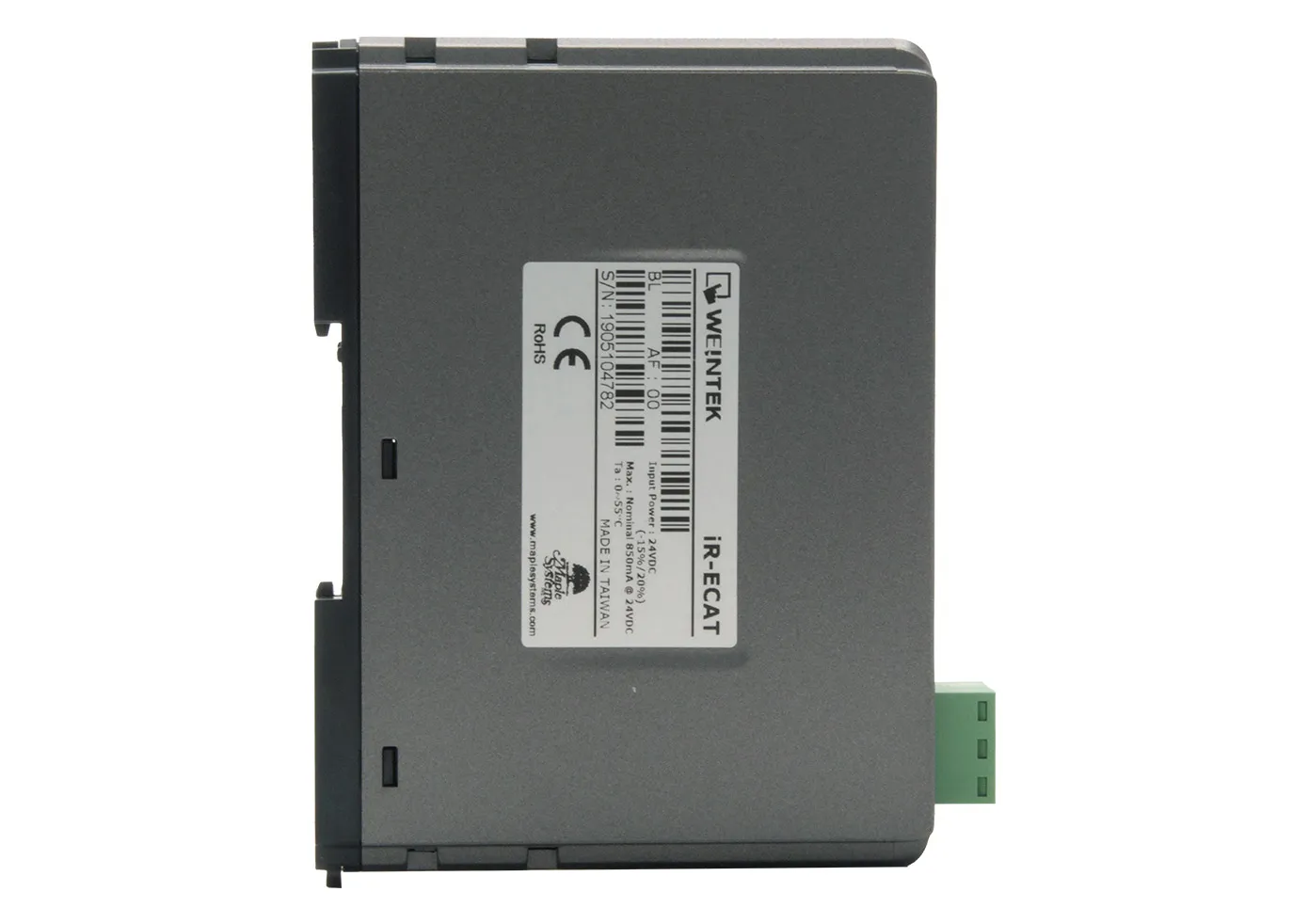

Communication-Coupler Module | iR-ECAT
$229.00
This communication coupler is required when you want a qualifying cMT HMI, or PLC Base (cMT-CTRL01), to communicate to I/O Expansion Modules via the EtherCAT® protocol. Only one coupler is required for up to 16 I/O expansion modules.
- Volume discounts available.
- US-based technical support.
Share the product:
IR-ECAT Highlights
- EtherCAT® Communication
- Pair with up to 16 I/O Modules (Depending on Power consumption)
- cULus, CE, RoHS
Expansion IO Module
Indicators
| L.V (Red) | Low Voltage Status Indicator |
| IO RUN (Green) | Module Status Indicator |
| IO ERR (Red) | Module Error Indicator |
| ECAT RUN (Green) | Device Status Indicator |
| ECAT ERR (Red) | Device Error Indicator |
Communication
| MailBox | COE -SDO requests, SDO responses |
| ETG Standards | ETG 5001 |
| Data Transfer Rate | 100 Mbps |
| Data Transfer Medium | 4 x 2 twisted pair copper cable; category 5 (100 Mbps) |
| Distance Between Stations | 100m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler |
| Protocol | EtherCat Slave |
Expansion I/O
| No. of Bus Terminals | Depends on Power Consumption |
| Digital Input Point | Max. 256 |
| Digital Output Point | Max. 128 |
| Analog Input Channel | Max. 64 |
| Analog Output Channel | Max. 64 |
Electrical
| Power Dissipation | Nominal 100mA@24VDC |
| Current for Internal Bus | Max 2A@5VDC |
| Current Consumption | 270mA@5VDC |
| Power Supply | 24 VDC (-15%/+20%) |
| Back-up Fuse | ≤ 1.6A Self-recovery |
| Electrical Isolation | Network to Logic: Isolation; Logic to Field power: Isolation |

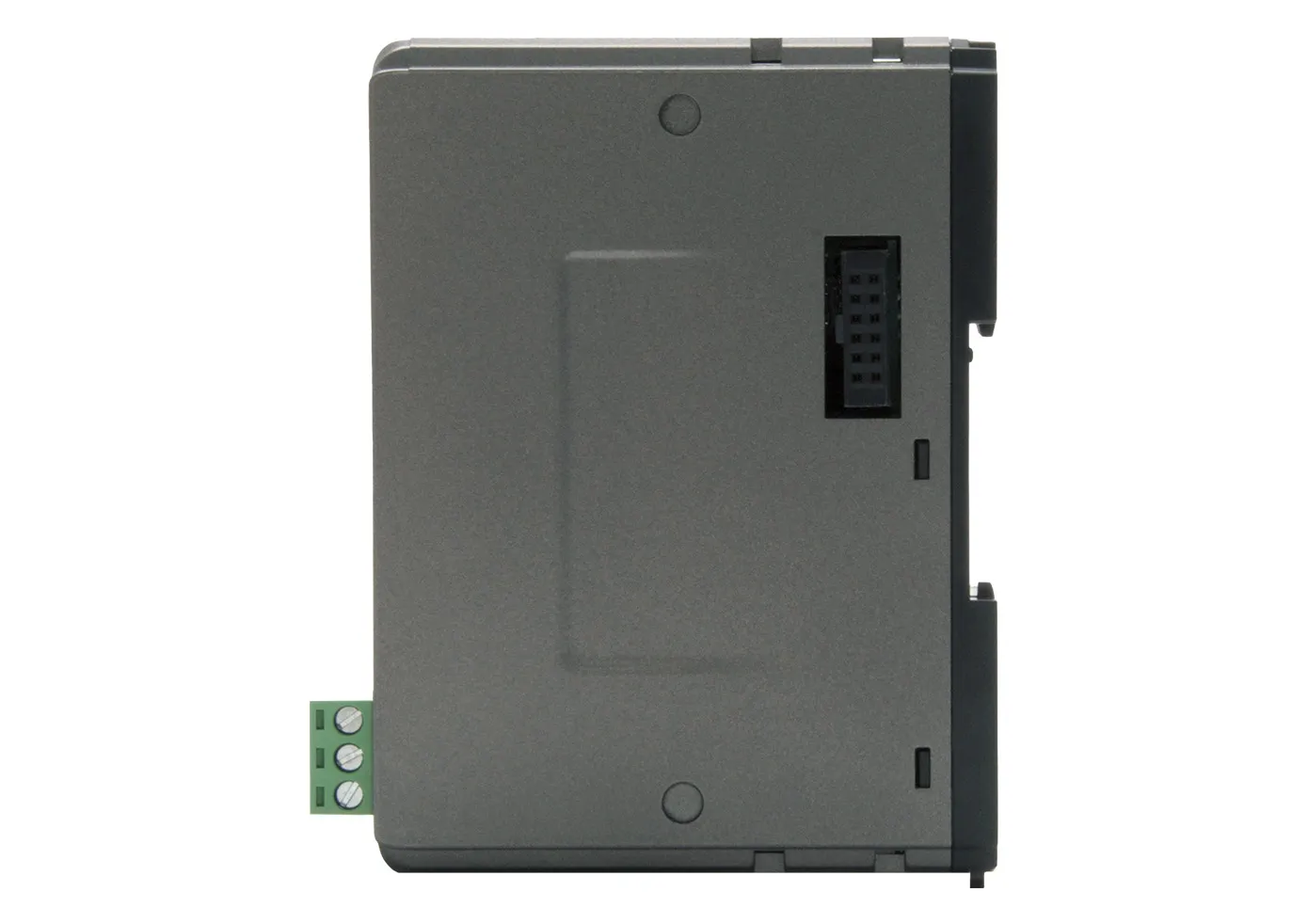

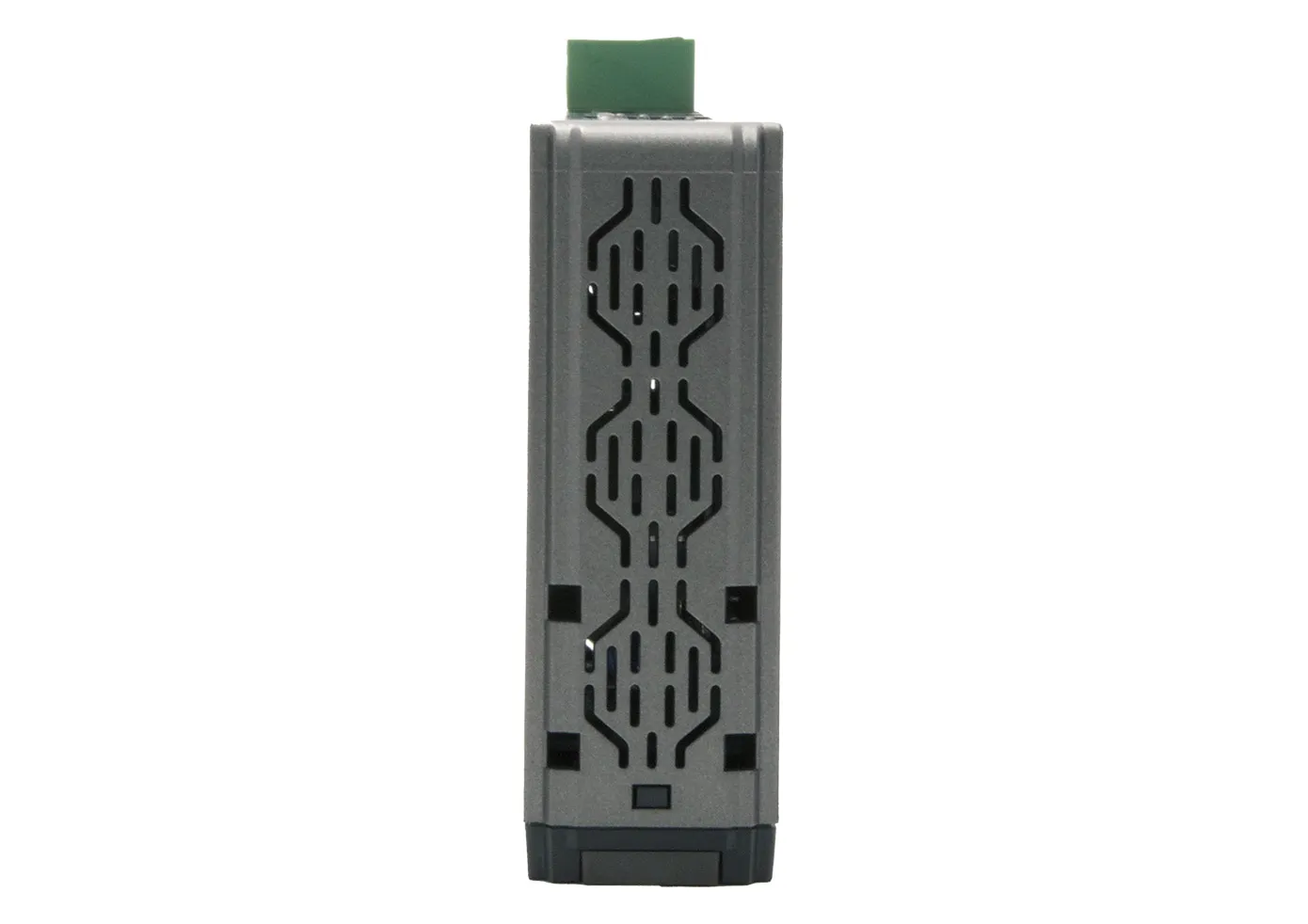

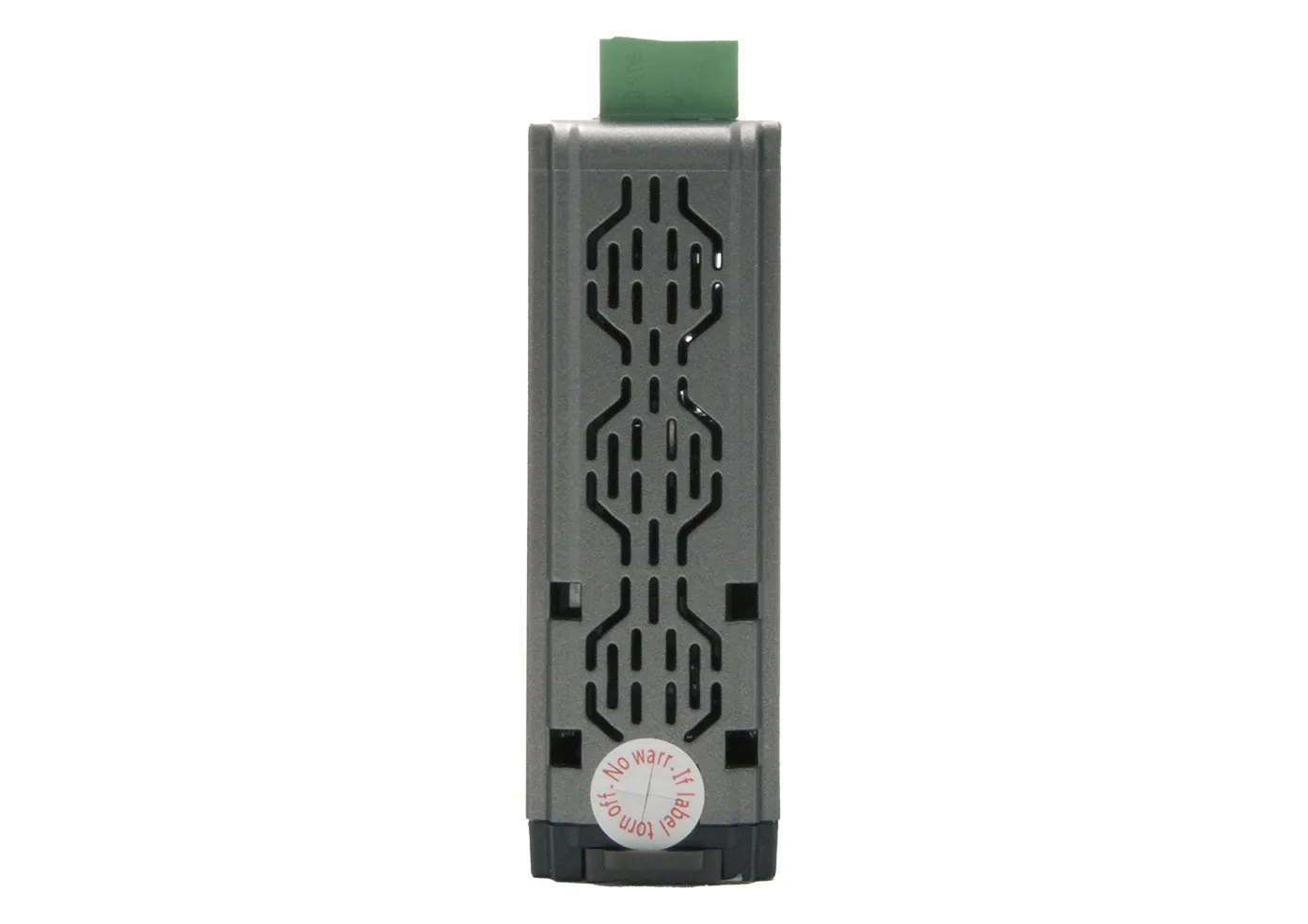

Mechanical
| Enclosure Material | Plastic |
| PCB Coating | Yes |
| Dimensions WxHxD | 27 x 109 x 81 mm |
| Weight | Approx. 0.15 kg |
| Mounting | 35mm DIN rail mounting |
Environmental
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Storage Temperature | -20° ~ 70°C (-4° ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| IP Rating | IP20 |
| EMC Immunity | Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005 |
Remote IO Webinar
Remote IO product line demonstration and it's quick and simple integration into an existing system
When you order the IR-ECAT the following items are included in the box:
- iR-ECAT
- Warranty Statement
- Installation Instruction
- 2 x Mounting Clip
