10.2" HMI + PLC, Expandable, 1 Ethernet Port, 1 USB Port, 2 Serial Ports, Supports 5 I/O Modules, FTP, Web Server, SD Card

  • HMC3102A-M Front View
  • HMC3102A-M Back View
  • HMC3102A-M side View
  • HMC3102A-M Bottom View

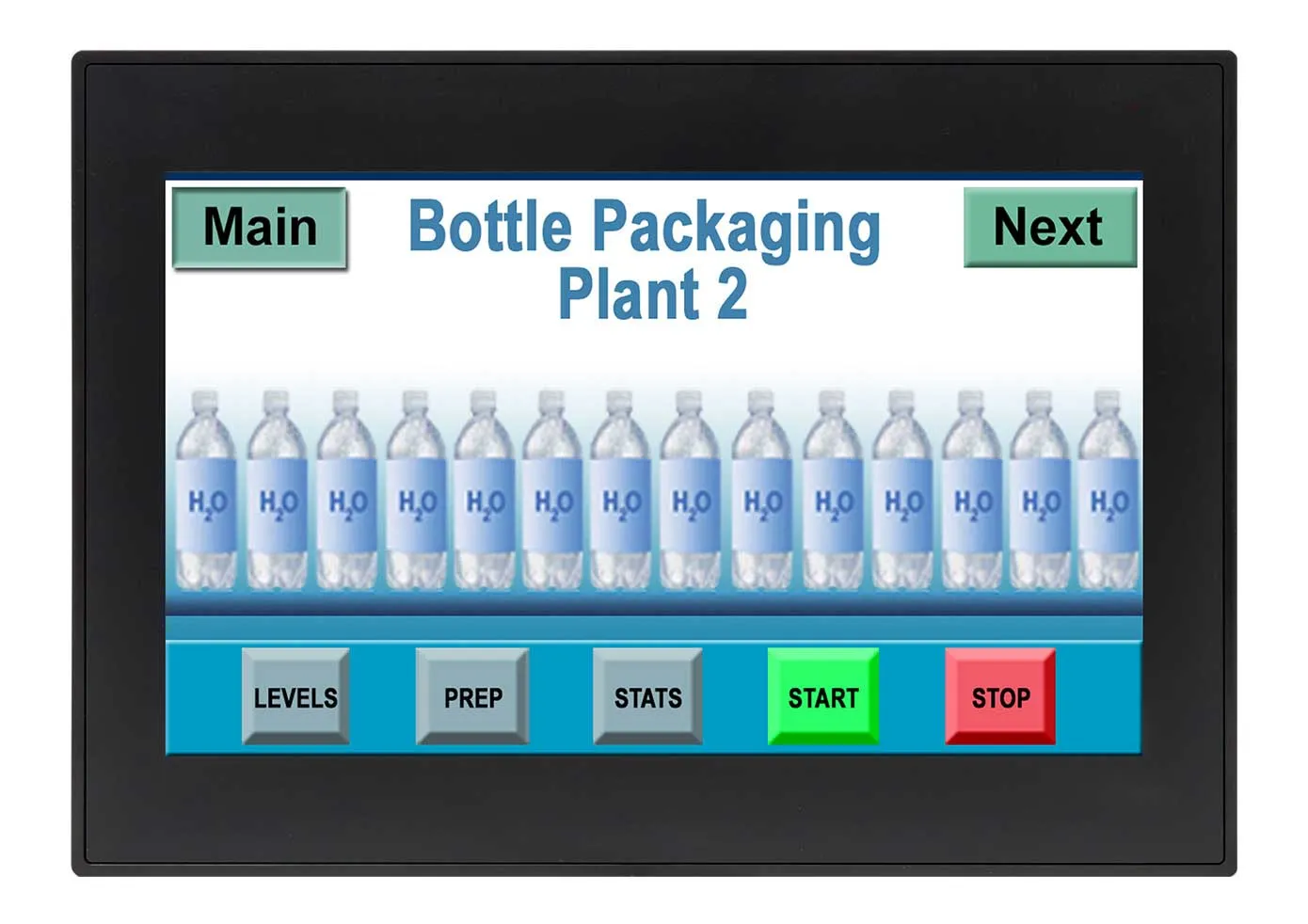

HMC3102A-M Front View

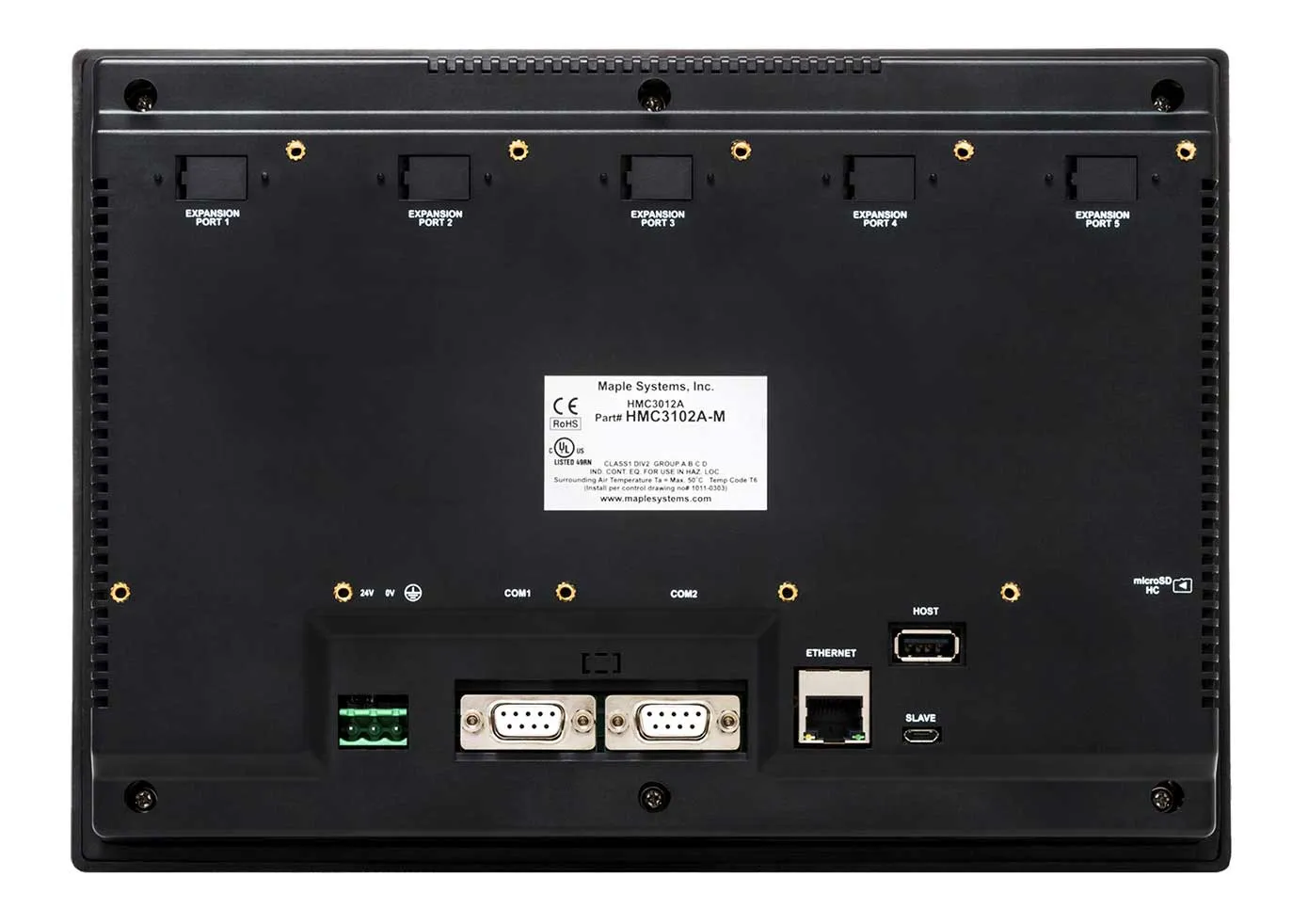

HMC3102A-M Back View

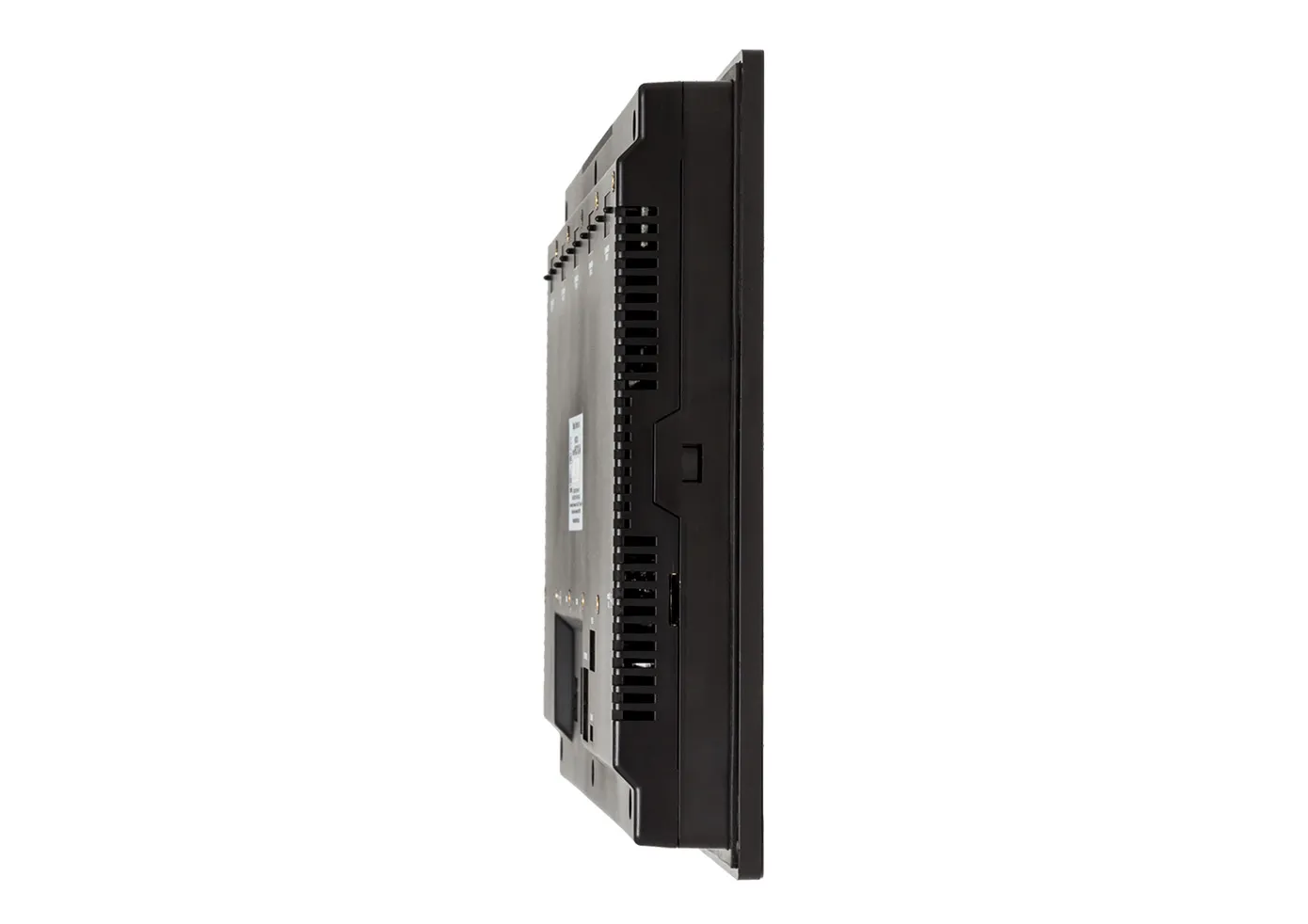

HMC3102A-M side View

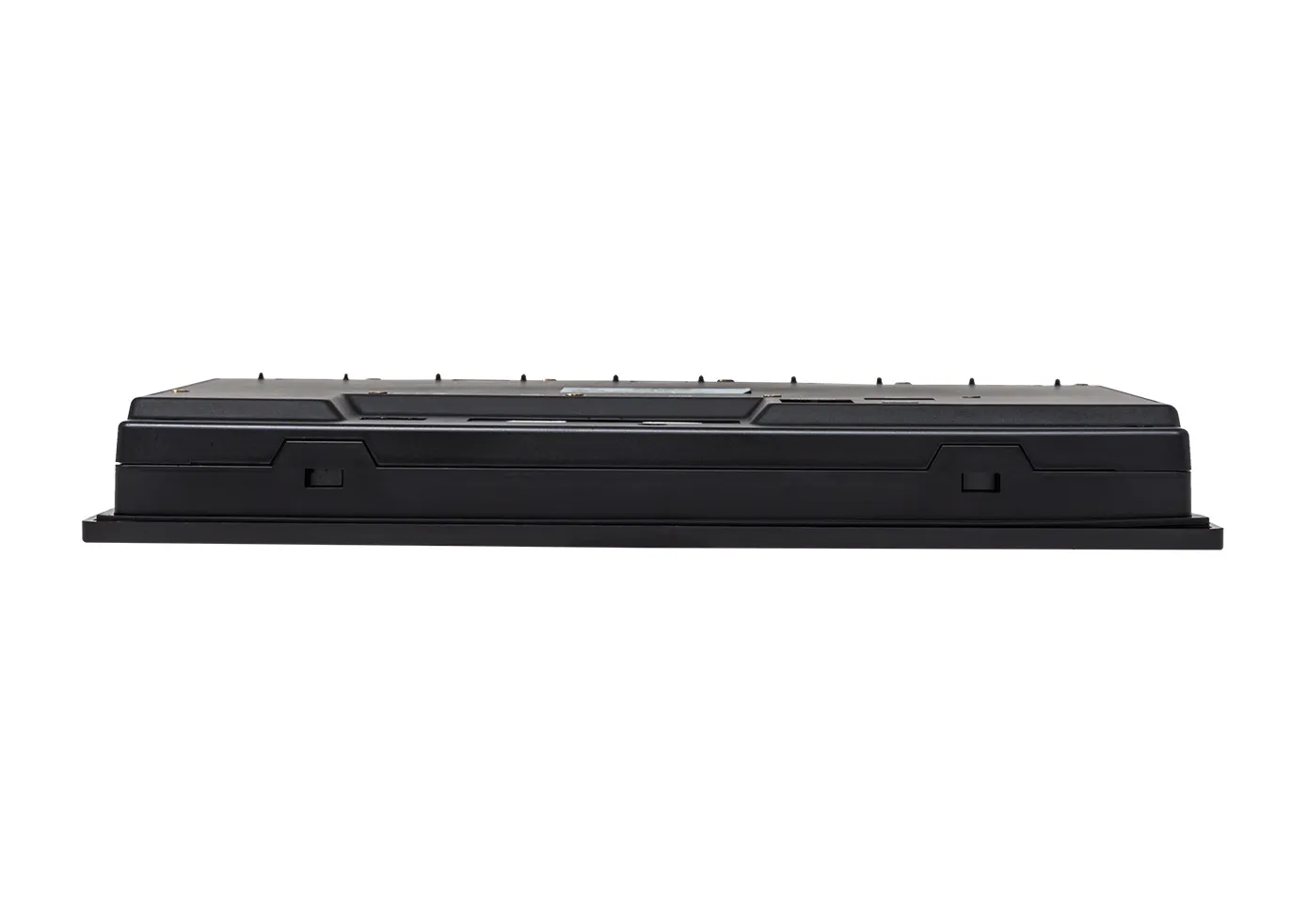

HMC3102A-M Bottom View

HMC3102A-M

  • Support for up to 5 I/O Expansion Module
  • Choose Native Ladder or IEC 61131-3 Logic
  • High-Speed Counters and PWM I/O Modules
  • Class I, Division 2 Rated
  • Send files via FTP
  • Web Server

10.2″ HMI + PLC, Expandable, 1 Ethernet Port, 1 USB Port, 2 Serial Ports, Supports 5 I/O Modules, FTP, Web Server, SD Card

HMC3102A-M

This product is Obsolete – There is no direct replacement. See our HMI+PLC product page for more information.

Or you could Compare Models for at-a-glance upgrade differences.

This is a Legacy product and is no longer available for purchase. Please review the information on this page and call (425)-745-3229 or email sales@maplesystems.com if you have further questions.

Share the product:

Review this product

Share your thoughts with other customers about this product

Write a Customer Review

Filters
Product Image
View Product
Product Image
View Product

HMC4000 models are the recommended upgrade option, however, you will need to re-create your project (screens and programming logic) in MAPware-7000 for
this new unit, there is no automatic conversion since it has been built on a new hardware platform.

  • Logic blocks from the HMC3000 models can be exported as an .xml file and then imported in HMC4000 model
    project. This will automatically add tags and function block instances referenced in the block to the new project.
  • Logic can also be directly copied from one open project to another but this method will not automatically add the
    tags to the database.
  • Other tags can be exported from HMC3000 project as a .csv file and then imported in HMC4000 model project.
  • Screens will need to be recreated. Screens cannot be imported and screen objects cannot be directly copied from
    HMC7000/3000/2000 series to HMC4000 series.
  • If you programmed your previous units with Native Ladder, your project cannot be automatically converted into any of the
    HMC4000 models as the Native Ladder programming method has been discontinued.

How do I find the IP address on my HMI+PLC (HMC)?

The maintenance mode that displays the ethernet parameters can be entered by holding the lower right corner of the display while the unit is powered on.

By default, the IP address should be 192.168.0.254 or 192.168.5.81

Do the Maple Systems HMI+PLCs (HMC) support High-Speed Counters (HSC)?Yes. Our HMI+PLCs (HMC) support High-Speed Counters in MAPware-7000. See the specific Series IO Module guide for more information on which IO modules support High-Speed Counters (HSC) and what registers are used for configuration. Most supported IO modules offer 2 or 4 high speed inputs. Both quadrature and standard HSCs are supported. When using HSCs, different product lines have different maximum frequencies ranging from 10 kHz to 200 kHz.
Do the Maple Systems HMI+PLCs (HMC) support Pulse Width Modulation (PWM)?Yes. Our HMI+PLCs (HMC) support Pulse Width Modulation in MAPware-7000. See the specific Series IO Module guide for more information specifics on which IO modules support Pulse Width Modulation (PWM) and what registers are used for configuration. Four modes of PWM are supported for most IO modules; Normal, Clockwise/Counter-Clockwise (CW/CCW), Pulse/Direction, and Trapezoidal (Fixed Pulse). When using PWM outputs, different product lines have different maximum frequencies ranging from 1 kHz to 200 kHz. Tech Note 7009, “Pulse Width Modulation”, describes each of the four types of PWM output, and then lists which registers to configure, how to configure those registers, and the minimum and maximum ranges of each register. Review the IO module specification sheets to ensure PWM is available.
I'm having trouble downloading to my HMI+PLC (HMC) from a USB Flash Drive.

Tech Note 7012, “Download a Project to an HMC from a USB Flash Drive,” provides step-by-step instructions.

I'm having trouble downloading to or configuring my HMI+PLC (HMC) using a USB cable – Download Issue/Error/ProblemIf you experience difficulty downloading to an HMI+PLC (HMC) from MAPware-7000 with a Windows® 10 operating system, you may need to re-install the MAPware-7000 USB Drivers. The MAPware-7000 USB drivers are located in the folder: C:MapleSystemsMAPware7000USB Drivers. Refer to Tech Note 7017, “Reinstall MAPware-7000 USB Drivers” for full instructions on how to delete and reinstall the USB driver. Also, make sure you are using a USB 2.0 port on your PC to download to the HMI+PLC. USB 3.0 is not supported.
Trying to download but MAPware7000 says "Device not responding" If you are attempting to download to an HMI/PLC and the download manager displays “”Device not responding””, check that the physical connection between the HMC and PC is secure.

If using Ethernet, make sure the PC can connect to the HMC by “PINGing” the IP address of the HMC.

If using USB, confirm that “HMI USB Device” shows up in Windows Device Manager. You may want to refer to Tech Note 7017 AFTER considering the next step.

On the HMC screen, delete the firmware by holding the top left corner of the screen while powering on. Then delete the application by holding the top right corner of the screen while powering on. Now try downloading the project to the screen again.
