cMT EasyWeb V1 Security Fixes
Technical Note 5139
Applicable Model(s)
cMT Series
Title
cMT EasyWeb V1 Security Fixes
Date
06/03/2021
Rev
00
P/N
0907-5139
Summary
According to ICSA-21-082-01, security issues were found in EasyWeb V1.1 on cMT devices. EasyWeb provides the configuration web interface for cMT devices.
If these devices are exposed to an open network, like below, we strongly suggest customers to disconnect the device from the network and upgrade the operating system (OS).
If these devices are not connected to an open network, they may not be affected but we still suggest customers to upgrade the OS.
A device is said to be exposed to an open network if it can be accessed by a public IP (meaning an IP address NOT like 192.168.x.y, 172.16.x.y with 16 varied from 16 to 31, or 10.x.y.z). For example, you can directly access the device from your home with the firewall’s IP address.

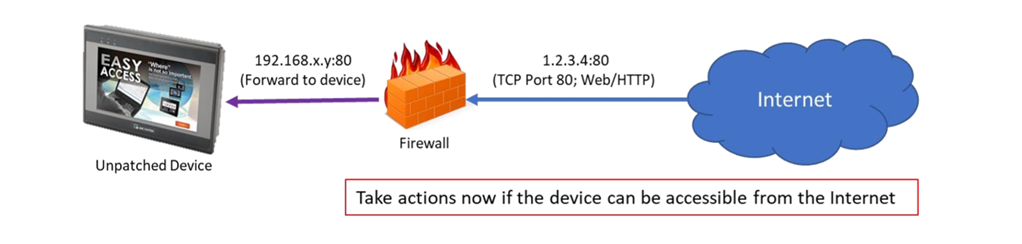

In the example below, it can be accessed by typing http://1.2.3.4:80 in the web browser. Note that the firewall must have been configured to allow this operation.
A device accessible to the Internet (firewall is configured to forward the packet).
Description
A remote attacker may gain access to the system or remotely execute commands without authentication via the web server whose version is below v1.2.
If the device is connected an open network, we strongly suggest customers to:
- Disconnect the device from the open network.
- Upgrade the OS of the device.

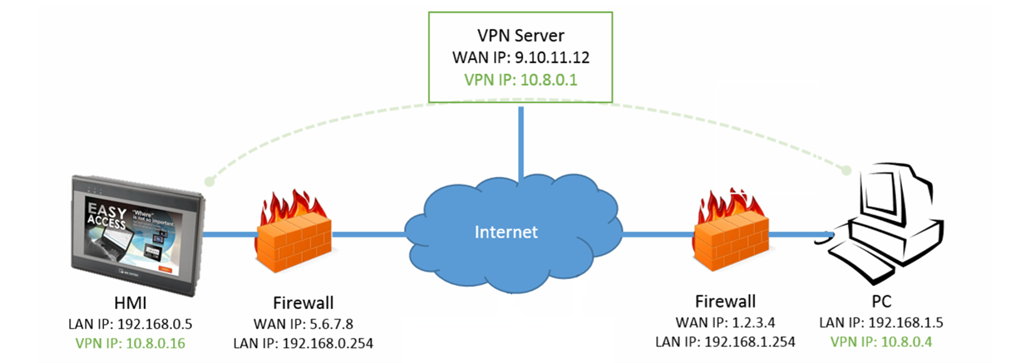

- (Optional) Use EasyAccess 2.0 (our secured VPN service) to access the device so there is no need to expose the device directly to the Internet. EasyAccess 2.0 is a VPN-based remote access solution providing secure connections between PC/Android/iOS and the devices.
Some examples of an open network:
- Device is connected to a router which is configured to forward TCP port 80 to the device. In this case, you can access the device via a public IP not in the same network.
- The device is connected to a network where guests or anyone have access to such as an open Wi-Fi network.
Affected Range
The security issues are found in the unpatched web service, EasyWeb V1.1, which is already running on the cMT products listed below.
A device is affected only if the following two conditions are met:
- It is connected to an open network where a remote attacker may have access to.
- It is using the following OS version:
# | Model | Affected OS Version | Any Unit Shipped Before |
|---|---|---|---|
| 1 | cMT-SVR-100/ cMT-SVR-102/ cMT-SVR-200/ cMT-SVR-202/ cMT-SVR-OPCUA | Any OS older than 20210305 | June 14th, 2021 |
| 2 | cMT-G01/G02 | Any OS older than 20210209 | June 14th, 2021 |
| 3 | cMT-G03/G04 | Any OS older than 20210222 | June 14th, 2021 |
| 4 | cMT3071/cMT3072/cMT3090/ cMT3103/cMT3151 | Any OS older than 20210218 | June 14th, 2021 |
| 5 | cMT-HDM | Any OS older than 20210204 | June 14th, 2021 |
| 6 | cMT-FHD | Any OS older than 20210208 | June 14th, 2021 |
| 7 | cMT-CTRL01 | Any OS older than 20210302 | June 14th, 2021 |
Solution
Upgraded OS images have been prepared for the affected products and are available upon request from Maple Systems.
After downloading the corresponding OS images, please follow the OS upgrade guide carefully.
Do not power cycle the device during the update as the update will be interrupted and the device may be damaged.
| # | Model | OS Image | OS Upgrade Guide |
|---|---|---|---|
| 1 | cMT-SVR-1xx/2xx* | cMT_SVR_OS_20210518.zip | OS Upgrade Tech Note TN5141 |
| 2 | cMT-G01/G02* | cMT_G01_G02_OS_20210518.zip | |
| 3 | cMT-G03/G04 | cMT_G03_G04_OS_20210222.zip | |
| 4 | cMT3071/cMT3072/ cMT3090/cMT3103/ cMT3151 | cMT3071_3072_3090_3151_OS_20210218.zip | |
| 5 | cMT-HDM | cMT_HDM_OS_20210204.zip | |
| 6 | cMT-FHD | cMT_FHD_OS_20210208.zip | |
| 7 | cMT-CTRL01 | cMT_CTRL_OS_20210302.zip |
