HMC3070A-M
-
- Support for up to 3 I/O Expansion Module
- Choose Native Ladder or IEC 61131-3 Logic
- High-Speed Counters and PWM I/O Modules
- Class I, Division 2 Rated
- Send files via FTP
- Web Server
</ul >
I/O Modules for Additional Connectivity

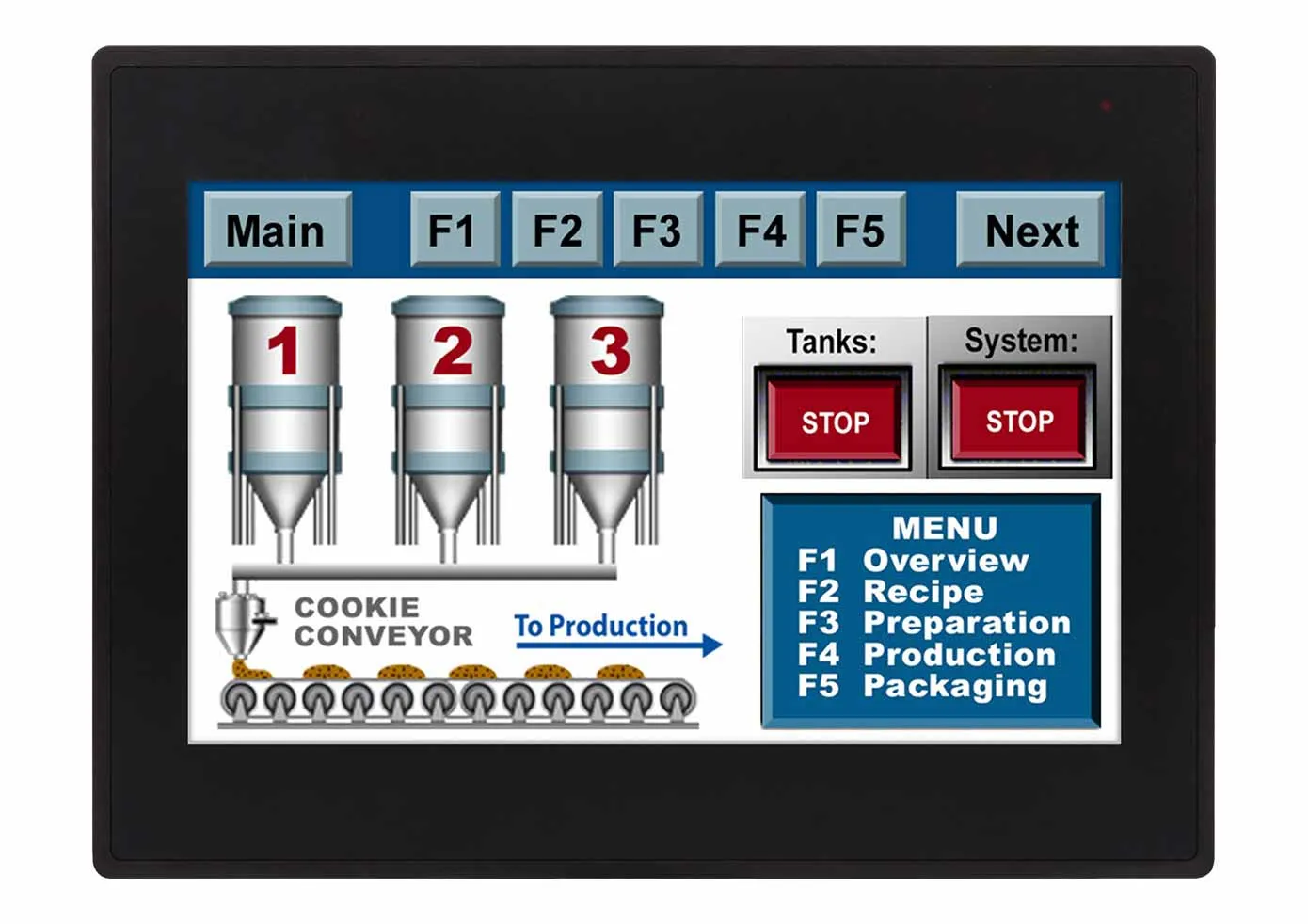

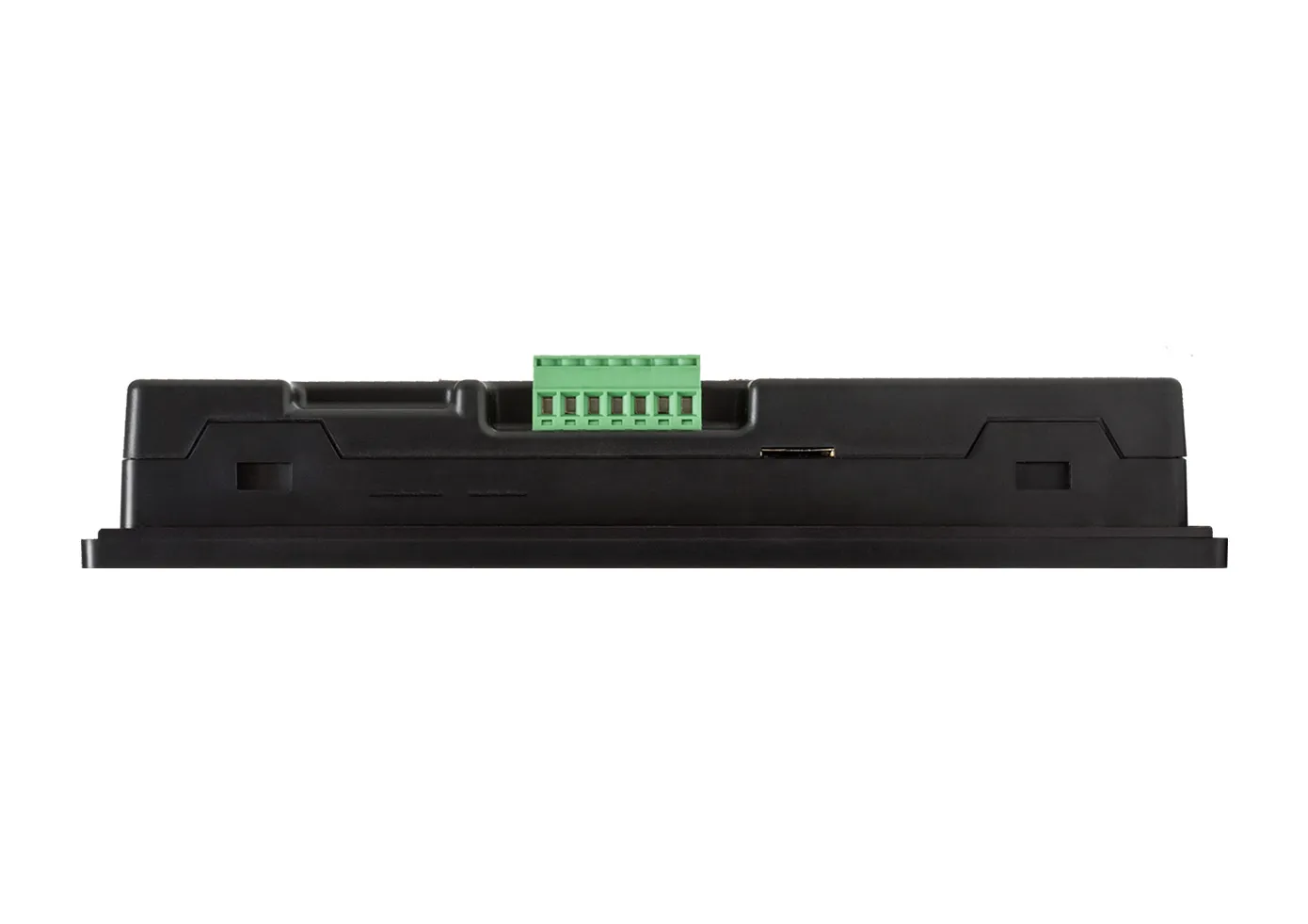

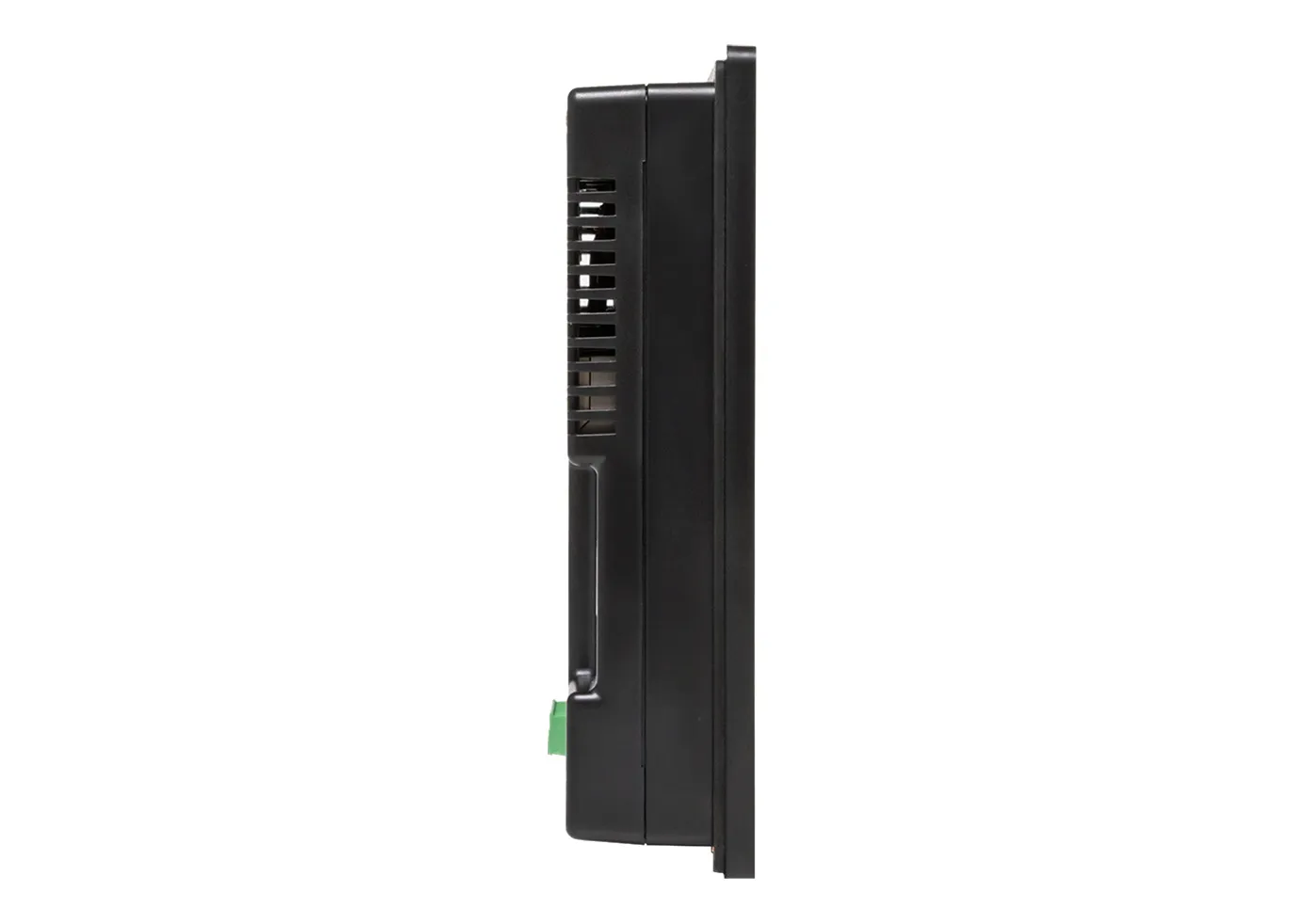

7.0″ HMI + PLC, Expandable, 1 Ethernet Port, 1 USB Port, 2 Serial Ports, Supports 3 I/O Modules, FTP, Web Server, SD Card
HMC3070A-M
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.
The HMC3000 Series combines the ease of a graphic HMI with PLC functionality. With additional I/O modules available, this powerful HMI + PLC is scalable and customizable. Paired with free configuration software, the HMC3000 series is our best performing HMI + PLC.
System
Memory (RAM) | 128 MB |
Memory (Flash) | 45 MB |
RTC | Built-in |
Application Memory | 45 MB |
Programming Software | MAPware V2.35 or later versions |
PLC Ladder Memory | 2 MB |
PLC Ladder Logic | Yes |

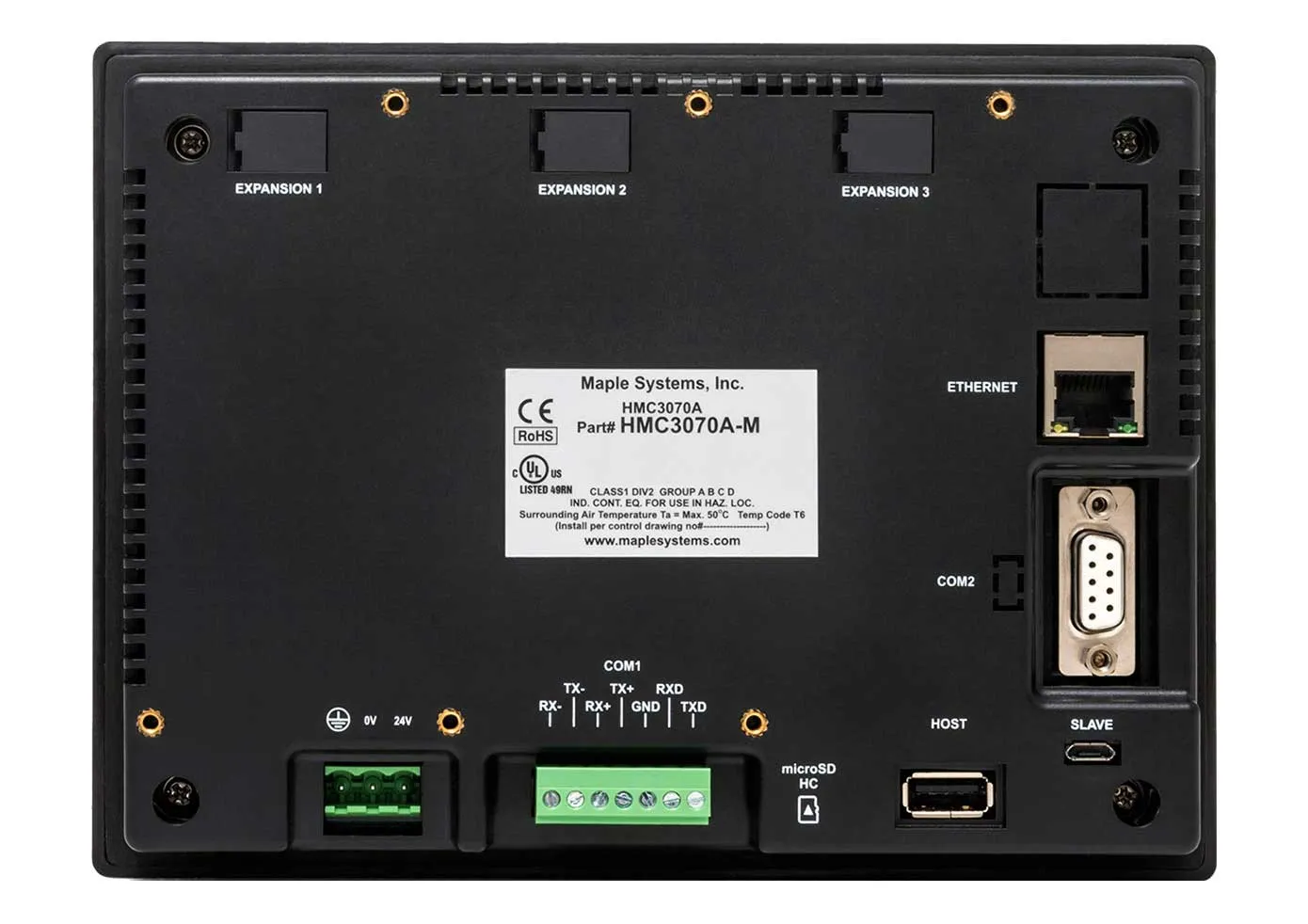

I/O Ports
Serial Ports | 2 |
Ethernet/LAN | 10/100 Base-T x 1 |
CANbus | N/A |
Audio Output | N/A |
SD Card Slot | SD/SDHC (32GB capacity) |
USB Host Ports | USB 2.0 x 1 |
USB Client Ports | USB 2.0 x 1 |
Wi-Fi | N/A |
RS-485 Dual Isolation | N/A |
Local bus | N/A |
HDMI Port | N/A |
Video Input | N/A |
Siemens MPI | N/A |
I/O | Expandable |
I/O Slots | 3 |
Max I/O Points (Digital) | 96 |
Max Digital In | 48 |
Max Digital Out | 48 |
Max I/O Points (Analog) | 15 |
Max Analog In | 12 |
Max Analog Out | 3 |
Display
Display Size | 7" TFT |
Resolution | 800 x 480 |
Luminance (cd/m^2) | 450 400 350 300 425 |
Contrast Ratio | 500:1 |
Backlight Type | LED |
Backlight Lifetime (hrs) | >20000 hrs. |
Colors | 32 K |
LCD Viewing Angle (T/B/L/R) | 70/70/80/80 |
Touch Screen
Type | TFT Resistive |
Accuracy | N/A |
Touch Panel Hardness Scale | N/A |
Electrical
Power Isolation | Built-in |
Power Dissipation | N/A |
Current for Internal Bus | N/A |
Current Consumption | N/A |
Voltage Resistance | N/A |
Isolation Resistance | N/A |
Mechanical
Vibration Endurance | 5 to 150Hz (X, Y, Z direction 3G peak) |
Enclosure Material | Black Plastic |
PCB Coating | N/A |
Dimensions WxHxD | 7.32 x 5.43 x 1.22 [186mm x 138mm x 31mm] |
Panel Cutout (inches) [mm] | 6.88 x 5.00 [175 x 127] |
Weight | Approx. 0.88 lbs. [0.4 Kg] |
Mounting | Panel mount |
Shock (Operation) | 25 g acceleration for 11 ms |
Environmental
Storage Temperature | -4° ~ 185°F (-20° ~ 85°C) |
Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
Relative Humidity | 10% ~ 95% (non-condensing) |
Certification
UL Type Rating | UL Class 1 Div 2 |
NEMA Rating | N/A |
IP Rating | IP66 Compliant Front Panel |
CE | Yes |
UL | cULus Listed |
Class 1 Div 2 | Yes |
ATEX | N/A |
RoHS | Yes |
