cMT-SVR-200
- 1 Ethernet Port, 1 USB Port, 1 Serial Port
- 32-Bit RISC Cortex-A9 1GHz CPU
- 256 MB Flash, 256 MB RAM
- WI-FI Compatible
- Supports display on a Tablet and PC
- DIN Rail Mount
Standard Headless HMI with Wi-Fi
cMT-SVR-200
$450.00
The cMT-SVR-200 is a Wi-Fi enabled HMI, great for applications requiring straight-forward HMI functionality without a touchscreen.
Monitor PLC Operations, gather PLC data, and remotely access your control system via the FREE cMT Viewer App on your smart phone, tablet, laptop, or PC. Add an EasyAccess2.0 license for additional remote capabilities.
- All the same HMI features you’re used to, just without a screen
- Our headless HMIs are compact and can be DIN Rail mounted with ease
- You have the option of displaying HMI screens served by a Maple headless HMI to any user with cMT Viewer installed on their Tablet, PC, or Smartphone
- Enough horsepower to ingest, process, and publish data from dozens of local or remote devices, sensors, etc.
- Built-in flash storage, with SD card slot for expansion and data backup
- Supports OPC UA and CODESYS too!
- Volume discounts available. Contact sales for more details.
- Connects to +400 PLCs and Controllers.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
System
| Memory (RAM) | 256 MB |
| Memory (Flash) | 256 MB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |
I/O Ports
| Serial Ports | 3 |
| Ethernet/LAN | 10/100/1000 Base-T x 1 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | SD/SDHC (32GB capacity) |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | Yes |
| COM Port | 1 x DE9P COM1: RS-232, COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire |
| HDMI Port | N/A |
| Video Input | N/A |
Electrical
| Input Power | 10.8 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 10.5 ~ 28 VDC |
| Input Current | 1000 mA @ 12 VDC;450 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 5.12 x 4.53 x 1.06 inches [130 x 115 x 27 mm] |
| Panel Cutout (inches) [mm] | N/A |
| Weight | Approx. 0.40 lbs. [0.18 kg] |
| Mounting | 35 mm DIN Rail |
Environmental
| Storage Temperature | -4° ~ 158°F (-20° ~ 70°C) |
| Operating Temperature | 14° ~ 131°F (-10° ~ 55°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | cULus |
| IP Rating | IP20 |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
Customers who bought this product also bought:
-
EasyAccess 2.0 Activation Card. Remote Access$99.00 -
Power Supply, Single Output, DIN Rail Mountable. Input: 100-240VAC, 1.1A/Output: 24VDC, 1.7A.$40.00 -
Cable, CAT5E Ethernet, 5′$15.00 -
Cable, CAT5E Ethernet, Crossover, 5′$15.00 -
DIN Mounting Rail, 300mm (11.81″) 5/Set.$10.00 -
DIN Mounting Rail, 450mm (17.72″) 5/Set.$15.00
-
DIN Mounting Rail, 600mm (23.62″) 5/Set.$20.00
-
OPC UA Activation Card$300.00 -
$175.00 -
$255.00
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- cMT Quick Start Guide
- cMT-SVR-200 Installation Guide
- OPC-UA Set-up Overview
- MQTT User Manual
- cMT MySQL Quick Start Guide
- cMT Microsoft SQL Quick Start Guide
- AWS IoT User Manual
- Azure IoT User Manual
Certifications
- UL-cMT Series
- CE-cMT-SVR-2XX[a]
- RoHS all series
- EU Declaration of Conformity (Battery Regulations)
- Trade Agreement Act
- Russian Iron and Steel Declaration
- Country of Origin Certification
CAD Files

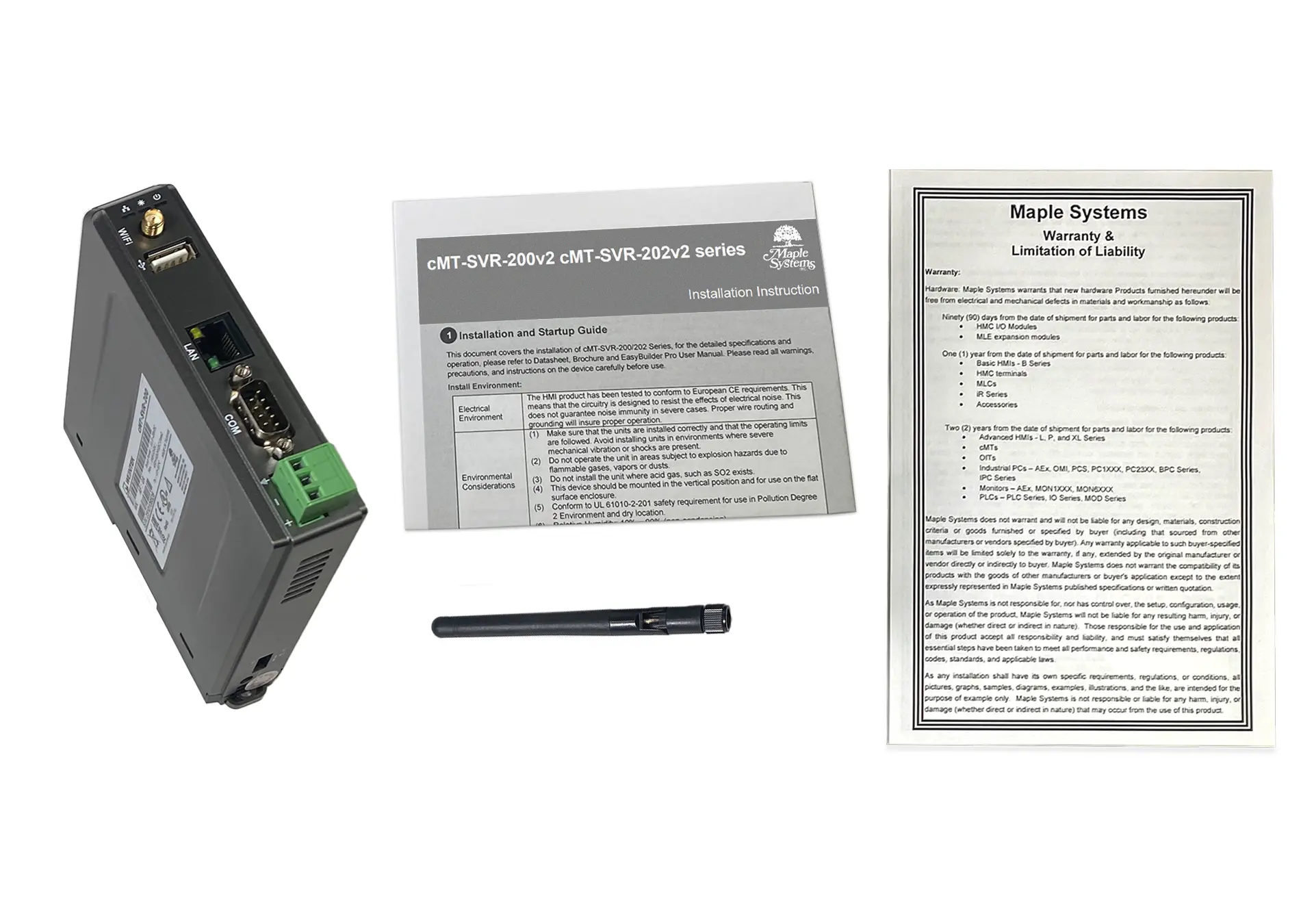

When you order the cMT-SVR-200 the following items are included in the box:
- cMT-SVR-200 Headless HMI
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
