To illustrate the PoE technology, consider the typical installation of a digital security camera.

Traditionally, it requires two separate connections: one for establishing a network connection to communicate with video recording and display equipment, and another for power supply. However, PoE combines both functions into a single cable, streamlining the installation process.

Power over Ethernet (PoE) works by delivering electrical power over standard Ethernet network cables. Thus, it allows network-connected devices to receive power and data through the same cable.

The key components of a PoE system include a power sourcing equipment (PSE) and a powered device (PD):

  • Power Sourcing Equipment (PSE): The PSE is the device responsible for injecting electrical power into the Ethernet cable. It can be a PoE-enabled network switch, a PoE injector, or a PoE midspan. PSEs come in different power levels (PoE, PoE+, PoE++) to accommodate various power requirements.
  • Powered Device (PD): The PD is the device that receives both power and data over the Ethernet cable. Examples of PDs include IP cameras, VoIP phones, wireless access points, and other network-connected devices designed to be PoE-compatible.

PoE (Power over Ethernet), PoE+, and PoE++ are different standards within the Power over Ethernet technology spectrum. Each offers varying levels of power delivery and compatibility with different devices.

Here’s a comparison of these standards:

PoE (802.3af)
  • Power Level: Provides up to 15.4 watts of DC power.
  • Use Cases: Suitable for low-power devices such as basic IP cameras, VoIP phones, and some access points.
  • Cable Requirement: Typically works with Category 3 (Cat 3) or higher Ethernet cables.
  • Power Delivery Method: Uses two of the four twisted pairs in the Ethernet cable.
PoE+ (802.3at)
  • Power Level: Offers up to 30 watts of DC power.
  • Use Cases: Ideal for devices with higher power requirements, including pan-tilt-zoom (PTZ) cameras, video phones, and some thin clients.
  • Cable Requirement: Typically requires at least Category 5e (Cat 5e) or higher Ethernet cables.
  • Power Delivery Method: Uses all four twisted pairs in the Ethernet cable.
PoE++ (802.3bt)
  • Power Level: Provides even higher power levels, with options for up to 60 watts or 100 watts, depending on the configuration.
  • Use Cases: Suitable for high-power devices like 802.11ax Wi-Fi access points, LED lighting fixtures, and other power-hungry networked equipment.
  • Cable Requirement: Typically requires Category 6 (Cat 6) or Category 6a (Cat 6a) cables to handle the increased power levels.
  • Power Delivery Method: Also uses all four twisted pairs in the Ethernet cable.

PoE, PoE+, and PoE++ standards are backward compatible. This means a PoE++ device can be powered by a PoE+ or PoE switch, and so on, as long as the power requirements are met.

The choice of PoE standard depends on the power needs of the specific devices in your network. Thus, ensure your networking equipment, including switches and injectors, supports the appropriate PoE standard.

Some devices are labeled with their PoE standard compatibility, such as “PoE+” or “802.3at,” making it easier to determine their power requirements and compatibility with PoE equipment.

Example of one of the poe benefits

Power over Ethernet (PoE) offers several benefits over traditional power and data cable setups, making it a popular choice in various applications.

Here are the key advantages of PoE:

  • Simplified Installation: One of the most significant advantages of PoE is its ability to deliver both power and data over a single Ethernet cable. This eliminates the need for separate power cables, reducing cable clutter and simplifying the installation process. It is particularly advantageous in locations where adding power outlets can be challenging or costly.
  • Cost-Efficiency: PoE can lead to cost savings by reducing the amount of cabling required for network deployments because fewer cables mean lower material costs and reduced labor expenses for installation and maintenance.
  • Flexibility and Mobility: PoE allows for greater flexibility in device placement. For example, network-connected devices like IP cameras, access points, and VoIP phones can be installed in locations where access to power outlets is limited or impractical. This enhances mobility and adaptability in various environments.
  • Remote Management: PoE-enabled devices can be remotely powered on or off, reset, and monitored through the network. This feature simplifies device management, troubleshooting, and maintenance, as IT personnel can perform these tasks without physical access to the device’s location.
  • Reliability: PoE systems often incorporate features like power management and surge protection, ensuring a reliable and stable power supply to connected devices. As a result, this reduces the risk of power-related issues and downtime.
  • Safety: PoE standards incorporate safety mechanisms, such as current limiting and detection of powered devices, to ensure that power delivery is safe for both the devices and the network. Additionally, PoE typically uses low-voltage DC power, reducing the risk of electrical hazards.
  • Energy Efficiency: PoE can contribute to energy savings by allowing for centralized power management. Devices can be scheduled to power down during periods of inactivity, reducing energy consumption.
  • Scalability: PoE can easily accommodate the addition of new devices to a network without the need for extensive rewiring or electrical work. Thus, this scalability makes it suitable for growing networks.
  • Compatibility: PoE standards are backward compatible, allowing devices designed for lower PoE standards to be powered by higher-standard PoE equipment. Because of this, it ensures interoperability and future-proofing.
  • Integration: PoE technology integrates seamlessly with existing Ethernet networks and infrastructure, making it a convenient choice for upgrading or expanding networks.

Overall, Power over Ethernet simplifies network deployments, reduces costs, enhances flexibility, and improves manageability, making it a versatile and efficient solution for various applications, from security and telecommunications to industrial and smart building systems.

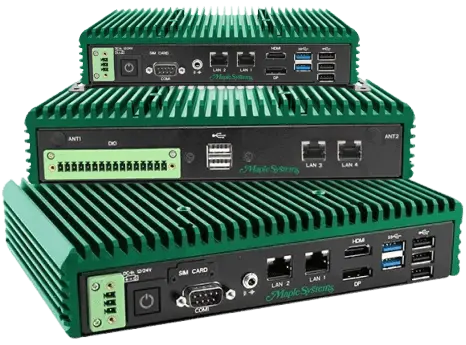

Rugged Intel® Industrial PC with Power Over Ethernet (IPC2411A) features an Intel® Quad-Core Atom® x6425RE 1.9GHz CPU, up to 32 GB RAM, and up to 1 TB SSD Storage. Rated for -40 to 60°C temperature range and with 2 Ethernet Ports, 7 USB Ports, 1 Serial Ports, 1 Audio Out, 1 HDMI and 1 DP 4K resolution display interface, the IPC2411A ensures longevity and seamless connectivity with a wide range of devices.

Maple Systems IPC2411A

The IPC2411A with PoE+ (Power Sourcing: 30W) from Maple Systems allows power and data transfer to your existing systems. Consequently, it helps you maximizing productivity and streamlining operations.
