10.1" Android 11 Industrial Rugged Tablet
RT1310A
$850.00
Our 10.1″ Android 11 industrial rugged tablet equipped with an MTK MT6771 Octa-core processor, Gorilla Glass capacitive touchscreen operable with stylus, glove, and wet touch, is designed to withstand the harshest environments. With the RT1310A’s IP67 rating and MIL-STD-810H certification, you’re gaining a mobile solution that will increase productivity, enhance safety, and reduce operational costs, regardless of weather or application.
- Volume discounts available. Contact sales for more details.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
RT1310A Highlights
- MTK MT6771 Octa-core Processor: ARM Cortex-A73 Quad-core 2.0 GHz, ARM Cortex-A53 Quad-core 2.0 GHz
- Android 11 Operating System
- 1280 x 800 Resolution, 700 nit, Capacitive Touch, Gorilla Glass
- Wi-Fi, Bluetooth, Cellular (4G LTE), GNSS, Barcode Reader, NFC
- Front/Rear Camera, 1x SIM Card Slot, 1x Mini HDMI, 1x USB 2.0 Type A, 1x USB 2.0 Type C, 1 x Ethernet, 1x Audio, 1x Micro SD Card Slot
- IP67 and MIL-STD-810H Certified
The base options are selected by default. Select the options to get the desired configuration.
System
| CPU | MTK MT6771 Octa-Core: ARM Cortex-A73 Quad-core 2.0GHz, ARM Cortex-A53 Quad-core 2.0GHz |
| Memory (RAM) | 1 x 4GB LPDDR4x |
| System Chipset | SOC: MTK RTC_M81/101, Build: RP1A.241117 |
| CPU Graphics | ARM Mail-G72 |
| Sensor | G-sensor Light Sensor Gyroscope Compass |
I/O Ports
| Camera | Front: 5MP Fixed Focus Camera Rear: 13MP Autofocus Camera with Flash |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| USB 2.0 Type C | 1 |
| Ethernet/LAN | 10/100 Base-T x 1 |
| Audio Output | 1 x 3.5mm Audio Combo Jack 8Ω/1W dual stereo speakers Built-in Microphone |
| Display Output | 1 x Mini HDMI Port |
| USB 2.0 Type A | 1 |
Keypad and Keyboard
| Buttons | 1 x Power Button 1 x Volume + 1 x Volume – 2 x Barcode Scan Keys |
Storage
| Solid State Drive | 1 x 64GB SSD |
| SD Card Slot | 1 x Micro SD Card Slot, up to 256GB |
Data Collection
| Barcode Reader | 1D, 2D barcode reader |
| NFC | 13.56MHz, Supports ISO/IEC 14443A/14443B/15693/18092/mifare |
RF Communication
| Wi-Fi | Wi-Fi 802.11 (a/b/g/n/ac), dual band (2.4G + 5.0G) |
| Cellular | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA: B38/B39/B40/B41 CDMA2000: BC0/BC1 FDD: B1/B3/B5/B8/B20/B28a/B28b or B2/B4/B7/B17 TDD: B34/B38/B39/B40/B41 |
| Cellular Network | 3G /4G /4G LTE |
| Bluetooth | Bluetooth V4.2 |
| GNSS | GPS, GLONASS, BeiDou |
Display
| Display Size | 10.1" TFT LCD |
| Resolution | 1280 x 800 |
| Luminance (cd/m^2) | 700 |
| Contrast Ratio | 1200:1 |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| View Angle (H° V°) | 170/170 |
Touch Screen
| Glass Type | Gorilla Glass |
| Light Transmission | 85% |
| Touch Screen Type | Projected Capacitive Touch |
| Interface | USB |
Power Details
| Power Adapter | Input AC: 100-240V, 50-60Hz, Output DC: 5V 3A |
| Battery | Removable Lithium-Ion Polymer Battery, 3.8V 10000mAh |
| Battery Life | 8 Hours |
Mechanical
| Dimensions WxHxD | 11.02 x 7.40 x 0.91″ [280 x 188 x 23 mm] |
| Weight | Approx. 2.54 lbs [1.15 kg] |
Environmental
| Drop Resistance | MIL-STD-810H: 2022 Method 516.8 Procedure IV, 4ft |
| Vibration Resistance | MIL-STD-810H: 2022 Method 514.8 Procedure I |
| Operating Temperature | 14° ~ 122°F (-10° ~ 50°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 95% @ 40°C, non-condensing |
Certification
| IP Rating | IP67 |
| CE | Yes |
| FCC | Yes |
Rugged Tablet Underwater
Rugged tablets that thrive in the wettest conditions imaginable
Are rugged tablets worth the extra cost?
Yes, regular tablets are cheaper at first but may break or stop working sooner than rugged tablets, depending on how they’re used. Even though rugged tablets cost more, they save money over time. You won’t need to replace or fix them as often as they’re designed to operate in harsh environments, making them a good choice for tough jobs
Do your rugged tablets have built in scanning capabilities?
Our tablets can scan damaged barcodes, 1D and 2D barcodes, inverse codes, PDF417 codes and screen barcodes, making your life easier! NFC, RFID, Windows Hello, Finger Print options, Cellular, Bluetooth, GPS/GNSS options and more!
What are the Ingress Protection (IP) and Military Standard (MIL-STD) ratings on your Rugged tablets?
Ranging from IP66 to IP67 with MIL-STD-810H certifications making our industrial tablets super duper rugged and tough.
What does the warranty and support package include on your Rugged Tablets?
Our Rugged tablets come with a standard 1 year warranty. If you’d like an additional year or two, we do offer extended warranty plans.
This warranty provides coverage for all hardware-related defects or failures, including screen damage resulting from accidental drops.
We offer free technical support, free live, free US based, free human tech support…. free documentation, free…. no costly service or support contracts at Maple Systems. Really, its free….
What kind of processing power do your Rugged Tablets have?
Options include:
- Intel® Core® i5 1.3 – 4.4 GHz or i7 1.7 – 4.7 GHz Processor, 10 Cores, 10 Threads
- Intel® Celeron® Quad-Core N5100, 2.8GHz Processor
- MTK MT6771 Octa-core Processor: ARM Cortex-A73 Quad-core 2.0 GHz, ARM Cortex-A53 Quad-core 2.0 GHz
What mounts or straps are available for your Rugged Tablets?
Both Hand Straps and Shoulder Straps are available for our line of rugged tablets. What other kinds of straps do you need? We also have in vehicle mounts and office mounts too!

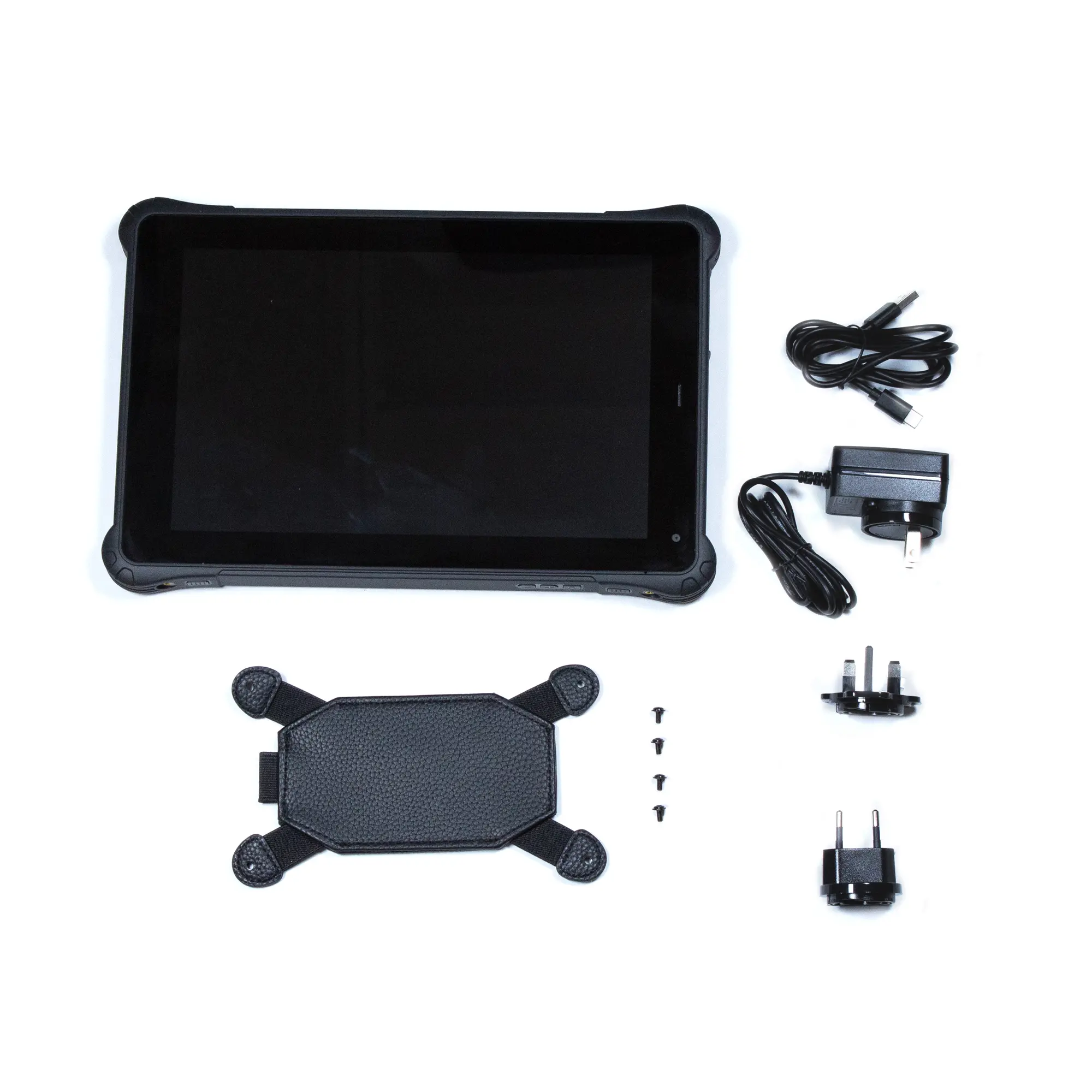

When you order the RT1310A the following items are included in the box:
1 x RT1310A
1 x Hand Strap with Screws
1 x Adapter
1 x Data Cable
2 x Power Conversion Head
