11.6" 12th Gen Intel® Core® i7 Industrial Rugged Tablet
RT1211B
$2,700.00
Our 11.6” industrial rugged tablet with Microsoft Windows® 11 or Linux® OS Options, built with a Gorilla Glass capacitive touchscreen supported by stylus, glove, and active pen touch, is designed to withstand the harshest environments. With the RT1211’s IP66 rating and MIL-STD-810H certification, Intel® Core® i7, 1.7 – 4.7 GHz Processor, with 10 Cores & 10 Threads, you’re gaining a mobile solution that will increase productivity, enhance safety, and reduce operational costs, regardless of weather or application.
- Intel® Certified Gold Partner.
- Volume discounts available. Contact sales for more details.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
RT1211B Highlights
- Intel® Core® i7 1.7 – 4.7 GHz Processor, 10 Cores, 10 Threads
- Microsoft Windows® 11 & Linux® OS Options
- 1920 x 1080 Resolution, 1000 nit, Capacitive Touch, Gorilla Glass
- Wi-Fi, Bluetooth, Cellular (5G), GNSS, Barcode Reader, Windows Hello
- Front/Rear Camera, 1x SIM Card Slot, 1x Mini HDMI, 2x USB 3.0, 1x USB 2.0, 1 x Ethernet, 1x Audio
- IP66 and MIL-STD-810H Certified
The base options are selected by default. Select the options to get the desired configuration.
System
| CPU | Intel® Core i7-1255U, 10 Core, 12 Threads (2-P, 4.7GHz Max, 8-E, 3.5GHz Max) |
| Memory (RAM) | 1 x 16GB LPDDR5 |
| System Chipset | SoC: Alder Lake 12th Gen (Non-Evo) |
| CPU Graphics | Intel® Iris Xe |
| Sensor | G-sensor Light Sensor Gyroscope |
I/O Ports
| Camera | Front: 5MP Fixed Focus Camera (Windows Hello optional) Rear: 12MP Autofocus Camera |
| SIM Card Slot | 1 x Nano SIM Card Slot |
| USB 2.0 Type C | 1 |
| Ethernet/LAN | 10/100/1000 Base-T x 1 |
| Audio Output | 8Ω/2W, dual stereo speakers Dual Microphone 1 x 3.5mm Audio Combo Jack |
| Display Output | 1 x Mini HDMI Port |
| USB 3.0 Type A | 2 |
Keypad and Keyboard
| Buttons | 1 x Power Button 1 x Volume + 1 x Volume – 2 x Barcode Scan Keys 1 x Windows Button 4 x Programmable Function Keys |
Storage
| Solid State Drive | 1 x 256GB NVMe PCIe SSD (up to 1TB) |
| SD Card Slot | N/A |
Data Collection
| Barcode Reader | 1D, 2D barcode reader |
| Fingerprint | Windows Hello |
| Expansion Option | RFID: UHF RFID, Frequency: 860 – 960MHz |
RF Communication
| Wi-Fi | Wi-Fi 6E 802.11 (a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax) |
| Cellular | WCDMA: B1/B2/B4/B5/B6/B8/B19 FDD LTE: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B17/ B18/ B19/ B20/ B25/ B26/ B28/ B66/ B71 TDD LTE: B34/B38/B39/B40/B41/B42/B43/B48 |
| Cellular Network | 3G /4G /4G LTE /5G |
| Bluetooth | Bluetooth V5.3 |
| GNSS | GPS, GLONASS, BeiDou |
Display
| Display Size | 11.6" TFT IPS |
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| View Angle (H° V°) | 170/170 |
Touch Screen
| Glass Type | Gorilla Glass |
| Light Transmission | 85% |
| Optical Bonding | No |
| Touch Screen Type | Projected Capacitive Touch |
| Interface | USB |
Power Details
| Power Adapter | Input AC: 100-240V, 50-60Hz, 1.5A Max, Output DC: PD65W |
| Battery | Dual Lithium Batteries, Hot-Swappable, 7.7V 58Whr |
| Battery Life | 6 Hours |
Mechanical
| Dimensions WxHxD | 12.40 x 7.99 x 0.83" [315 x 203 x 21mm] |
| Weight | Approx. 3.42 lbs [1.55 kg] |
Environmental
| Drop Resistance | MIL-STD-810H: 2022 Method 516.8 Procedure IV, 4ft |
| Vibration Resistance | MIL-STD-810H: 2022 Method 514.8 Procedure I |
| Operating Temperature | -4~140°F [-20~60°C] |
| Storage Temperature | -22~158°F [-30~70°C] |
| Relative Humidity | 95% @ 40°C, non-condensing |
Certification
| IP Rating | IP66 |
| CE | Yes |
| FCC | Yes |
Are rugged tablets worth the extra cost?
Yes, regular tablets are cheaper at first but may break or stop working sooner than rugged tablets, depending on how they’re used. Even though rugged tablets cost more, they save money over time. You won’t need to replace or fix them as often as they’re designed to operate in harsh environments, making them a good choice for tough jobs
Do your rugged tablets have built in scanning capabilities?
Our tablets can scan damaged barcodes, 1D and 2D barcodes, inverse codes, PDF417 codes and screen barcodes, making your life easier! NFC, RFID, Windows Hello, Finger Print options, Cellular, Bluetooth, GPS/GNSS options and more!
What are the Ingress Protection (IP) and Military Standard (MIL-STD) ratings on your Rugged tablets?
Ranging from IP66 to IP67 with MIL-STD-810H certifications making our industrial tablets super duper rugged and tough.
What does the warranty and support package include on your Rugged Tablets?
Our Rugged tablets come with a standard 1 year warranty. If you’d like an additional year or two, we do offer extended warranty plans.
This warranty provides coverage for all hardware-related defects or failures, including screen damage resulting from accidental drops.
We offer free technical support, free live, free US based, free human tech support…. free documentation, free…. no costly service or support contracts at Maple Systems. Really, its free….
What kind of processing power do your Rugged Tablets have?
Options include:
- Intel® Core® i5 1.3 – 4.4 GHz or i7 1.7 – 4.7 GHz Processor, 10 Cores, 10 Threads
- Intel® Celeron® Quad-Core N5100, 2.8GHz Processor
- MTK MT6771 Octa-core Processor: ARM Cortex-A73 Quad-core 2.0 GHz, ARM Cortex-A53 Quad-core 2.0 GHz
What mounts or straps are available for your Rugged Tablets?
Both Hand Straps and Shoulder Straps are available for our line of rugged tablets. What other kinds of straps do you need? We also have in vehicle mounts and office mounts too!

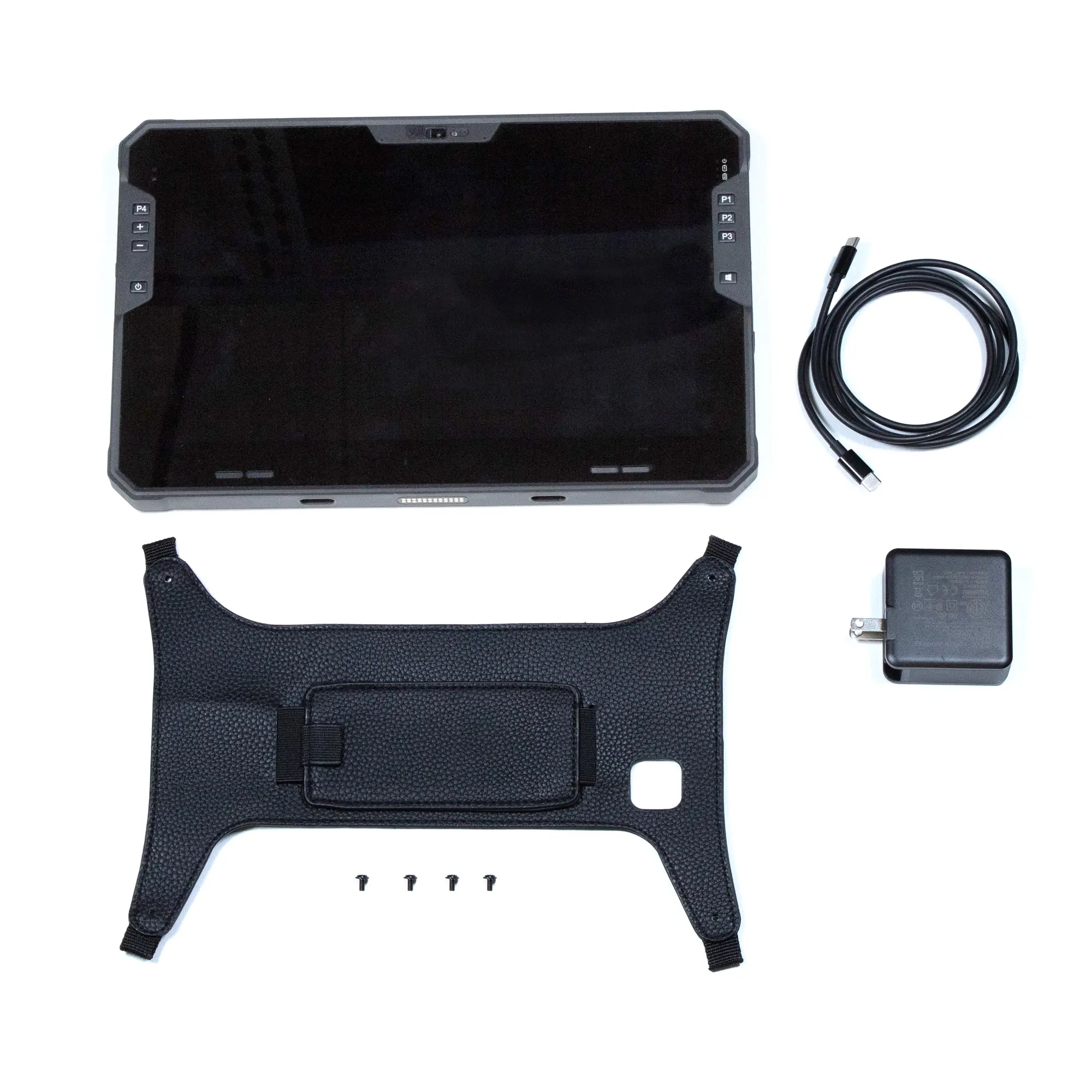

When you order the RT1211B the following items are included in the box:
1 x RT1211B

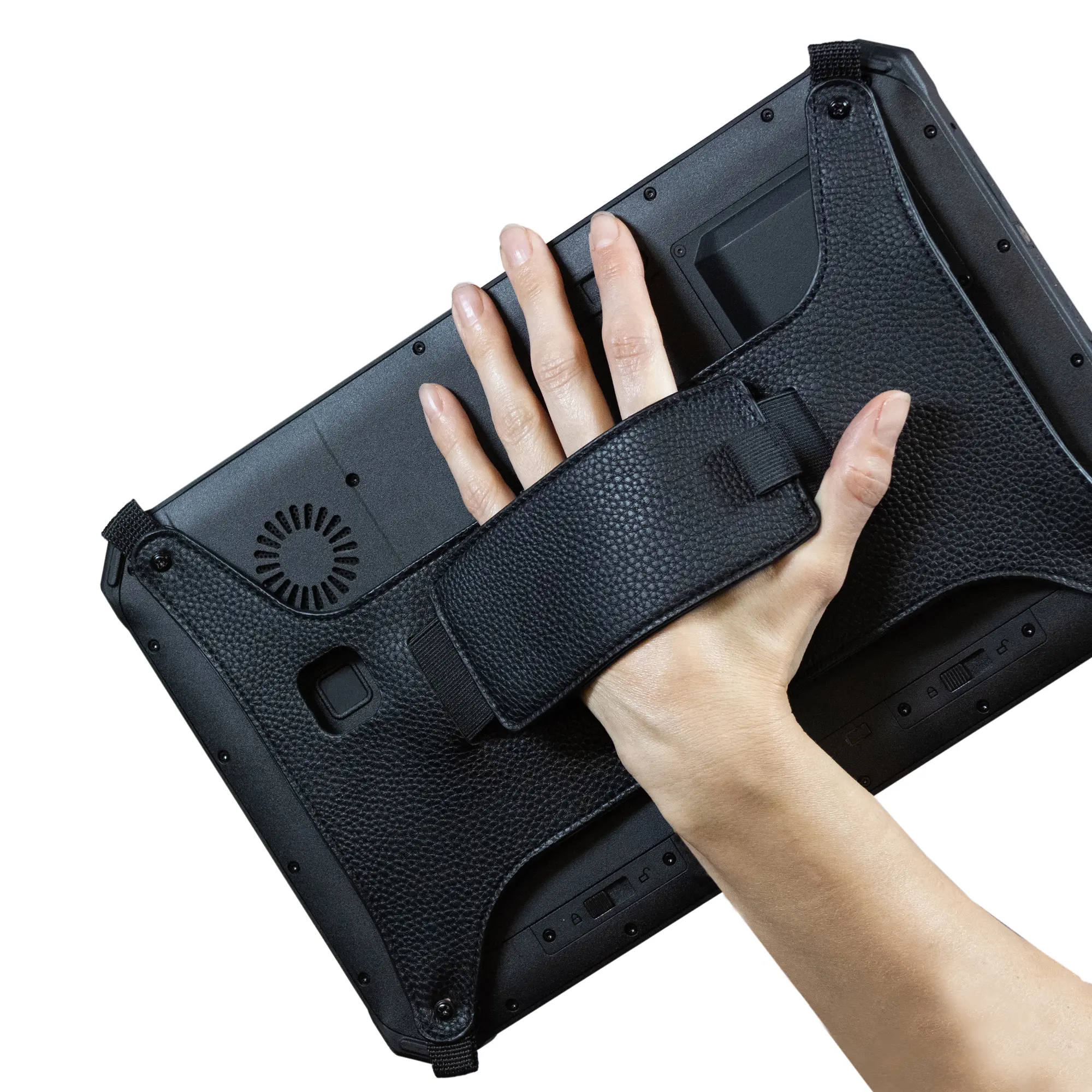

1 x Hand Strap with Screws
1 x Power Cord
1 x Adapter
