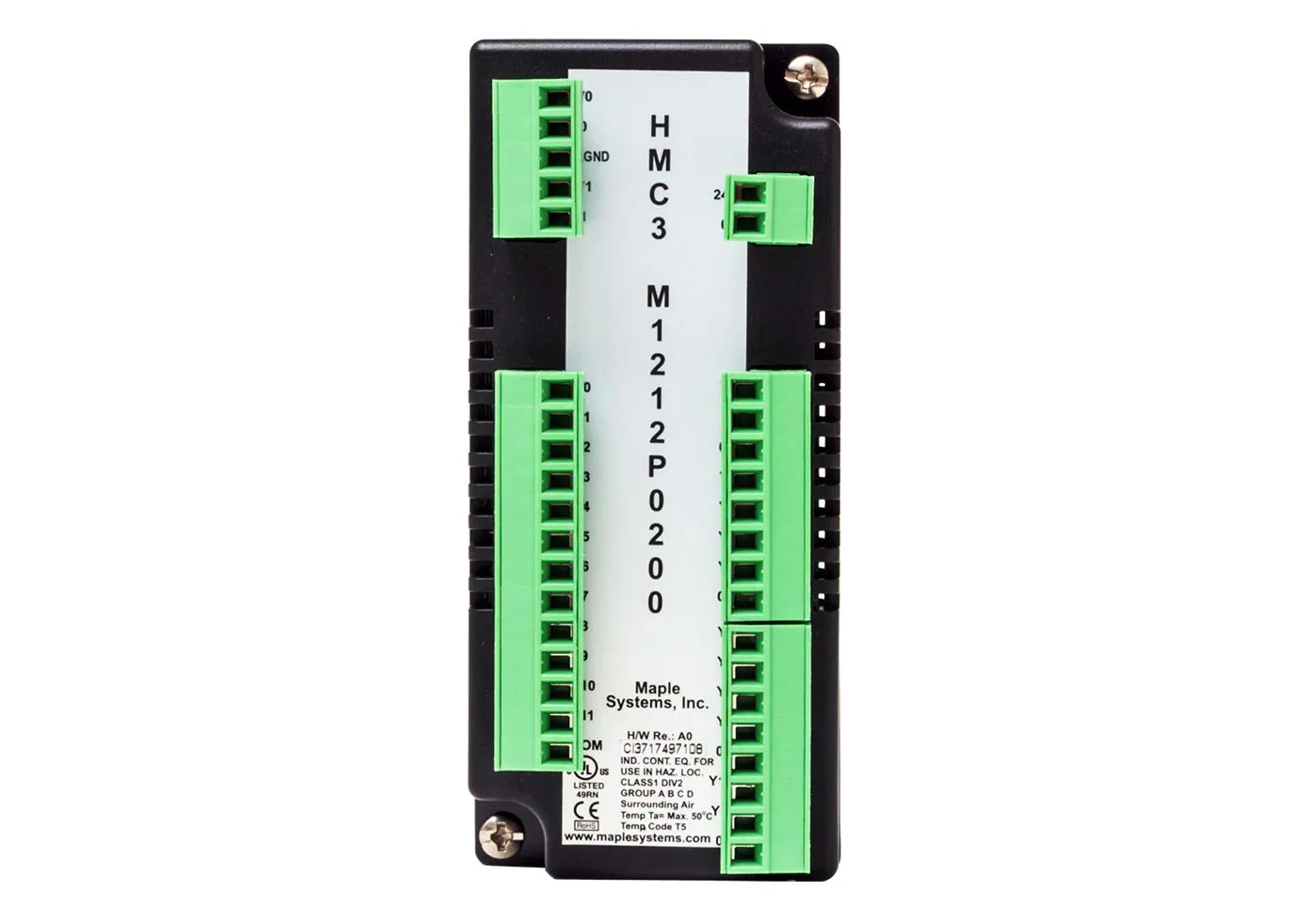

HMC3-M1212P0200
- 12 Bi-Directional Digital Inputs (2 High-Speed)
- 12 PNP Digital Outputs (2 PWM)
- 2 Analog Inputs (Voltage/Current)
- Class I, Division 2 Rated
I/O Module
HMC3-M1212P0200
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.
As part of the HMC2000 and HMC4000, this I/O module expands the capabilities of the HMI for increased PLC functionality. Mix and match additional I/O modules to meet your unique project needs.
- HMI+PLC Training videos offering step by step instructions.
- HMI+PLC Tutorial projects instructions, sample projects, and videos on common topics to get you started with MAPware7000.
- HMI+PLC Sample projects to jumpstart your familiarity with Mapware7000.
- Compare HMC3-M1212P0200 and other models.
- US Based Technical Support
Power Supply
| Voltage Rating | 24VDC (±15%), 12V from base |
| Isolation | Optical Isolation for all I/O points. High isolation voltage (BV= Greater than 1.5 KV) |
Local I/O
| Number of Inputs | 12 Inputs Bi-directional Type |
| Input Design | According to EN 61131-2 Type 1 |
| ON Voltage | Min.: 15VDC, Max.: 30VDC |
| OFF Voltage | Min.: -3VDC, Max.: 5VDC |
| Nominal Input Voltage | 24VDC |
| Nominal Input Current | 5mA typical |
| Input Response Time | ON: 10msec, OFF: 10msec |
| Input Impedance | 4.8 KΩ |
| Number of Outputs | 12 PNP type transistor outputs |
| ON Output Voltage | Min ON: 22VDC, Max. ON: 30VDC (Voltage across load) |
| Nominal Output Voltage | 30VDC |
| Nominal Output Current | 250mA type/channel |
| Output Response Time | ON: 10msec, OFF: 10msec |
| Accuracy | N/A |
Analog I/O
| Analog Input Total Channels | 2 Input channels (16 bit resolution) |
| Input Type | 0-20mA, 4-20mA & 0-10VDC, 0-5VDC |
| Analog Output Total Channels | N/A |
| Output Type | N/A |
| Accuracy | ± 0.2% of full scale @ 25° |
Environmental
| Storage Temperature | -20 to 85°C |
| Operating Temperature | 0 to 60°C |
| Humidity | 10 to 90% (Non-Condensing) |
| Short Circuit Protection | Yes |
| Product Dimensions | 48mm x 108mm x 35.7mm (W x H x D) |
Certification
| Approvals | CE, UL |
Documents
Manuals
- HMC3-M1212P0200 Quick Start Guide
- I/O Module Guide for HMC3000 Series
- MAPware 7000 Getting Started Guide
- MAPware 7000 Programming Manual
- IEC 61131-3 Programming Guide for MAPware-7000
- HMC Series Installation Guide
- MLC Series PLC Programming Manual & Installation Guide
Certifications
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the HMC3-M1212P0200 the following items are included in the box:
- HMC3-M1212P0200
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
- screw type terminal blocks
