10.1" WiFi Capable High Performance HMI with Built-in RFID & CODESYS
$1,345.00
The cMT3102Xv2R with activated CODESYS features a powerful CPU, remote access, IIoT functionality, plus built-in RFID capabilities. Perfect for applications such as access control, equipment unlocking, and product traceability. This all-in-one solution eliminates the need for additional external devices, saving on cost and space all while enhancing security and reducing data entry errors.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT3102Xv2R-CODESYS and other models.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- Connect to +400 PLCs and Controllers.
- US-based technical support.
Share the product:
cMT3102Xv2R-CODESYS Highlights
- 1024 x 600 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, CANbus
- Built-in RFID, Wifi Capable via Expansion Module*
- Advanced features include Light or Dark Themes, Web Streaming, Web View, and Web Browser
- IIoT, Remote Access, MQTT, OPCUA Client/Server, SQL Database
- cULus, CE, RoHS, IP66, NEMA4, ATEX

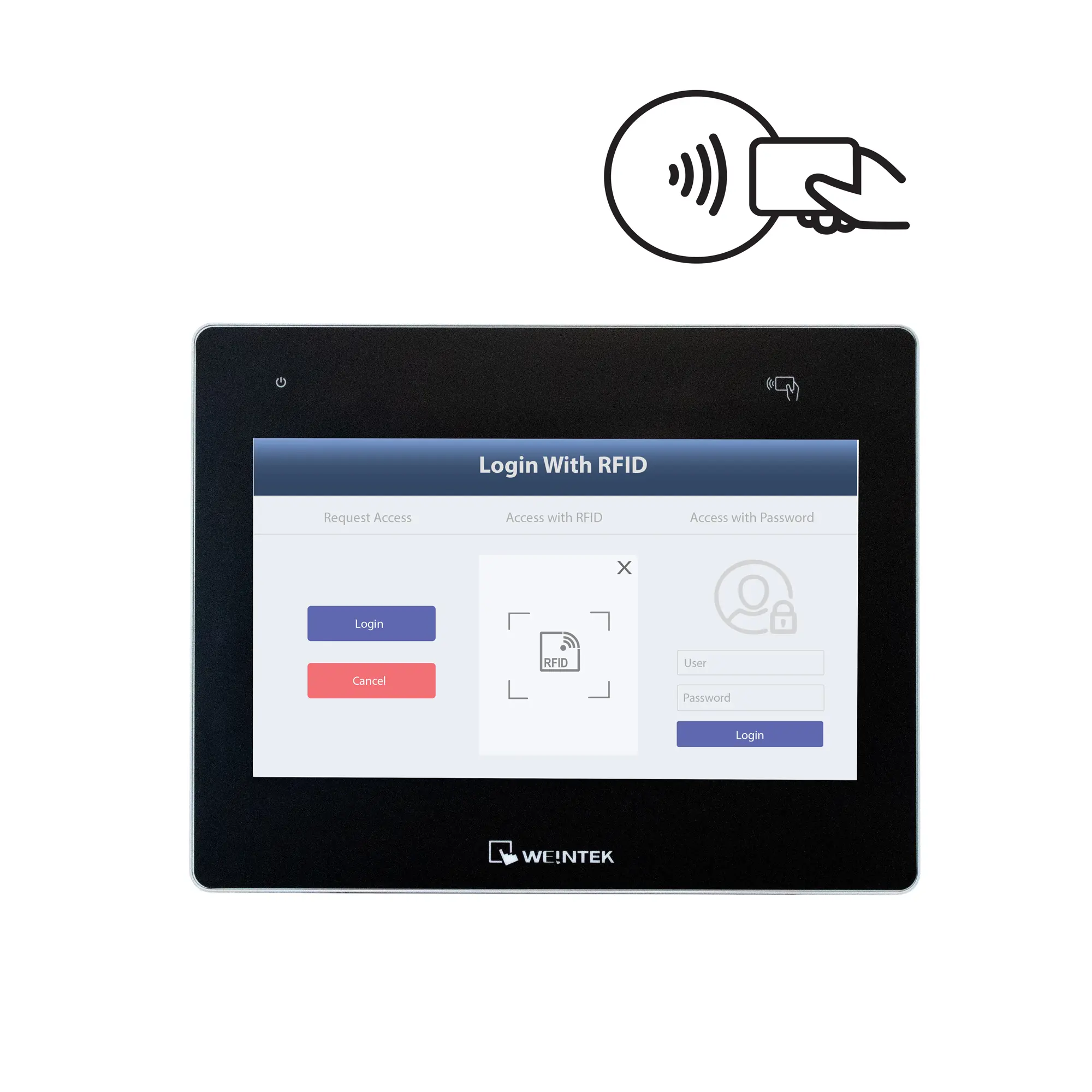

RFID
| Compatibility Standard | ISO/IEC 14443 Type A/B, Frequency: 13.56 MHz |
| Reading Distance | Max. 4 cm |
System
| CPU | Quad-Core RISC |
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |

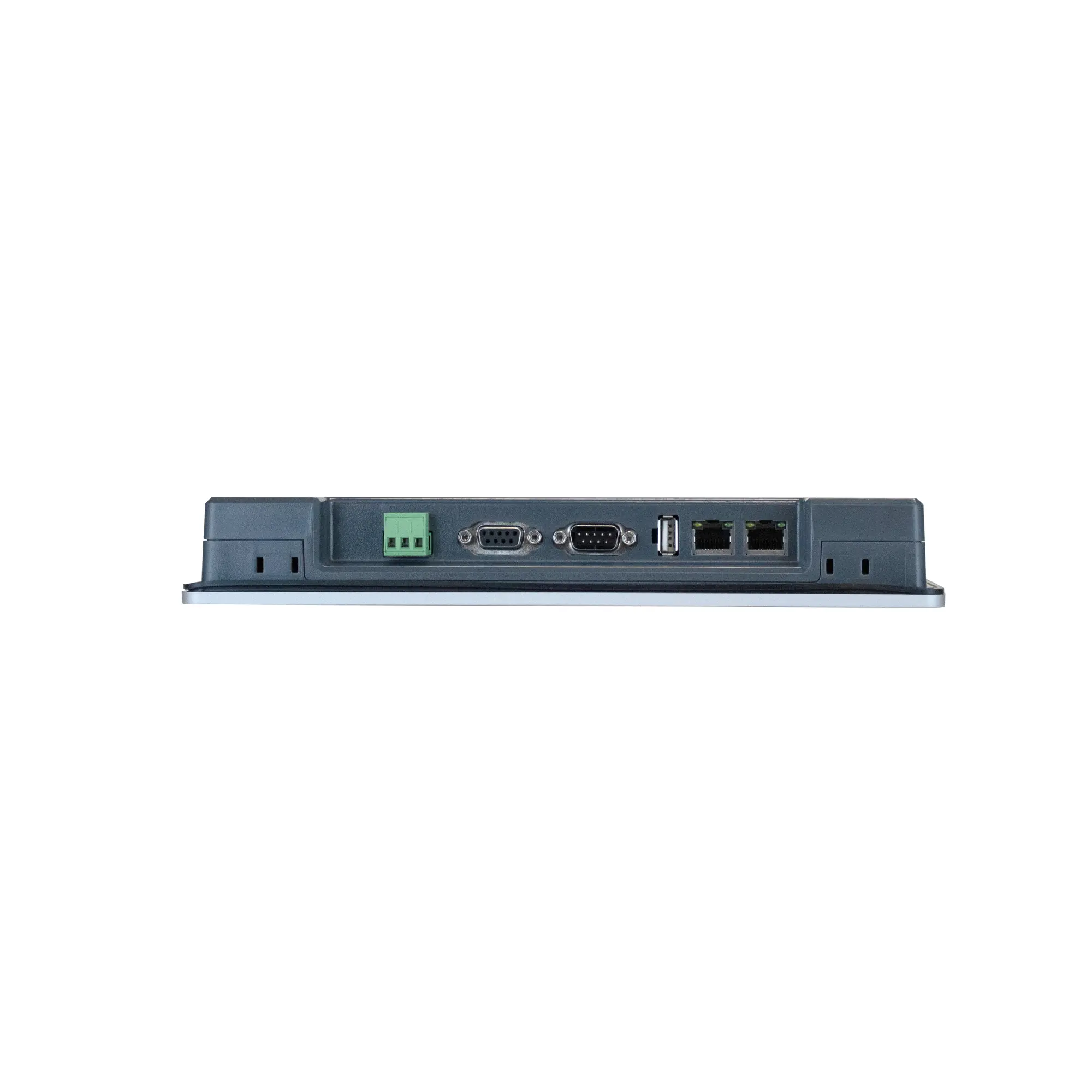

I/O Ports
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | Yes |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | MO2 Wifi – Expansion Module (Optional) |
| COM Port | CANbus 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 |
| RS-485 Dual Isolation | Yes |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
| Serial Ports | 2 |
Display
| Display Size | 10.1" TFT |
| Resolution | 1024 x 600 |
| Luminance (cd/m^2) | 350 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| Display Type | 10.1" TFT |
| Viewing Angle (H°/V°) | 160/140 |
| Size (W x H) | 8.82 x 4.96 inches [224 x 126 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
| Touch Panel Hardness Scale | N/A |
Electrical
| Input Power | 24 W |
| Power Isolation | Built-in |
| Power Dissipation | N/A |
| Current for Internal Bus | N/A |
| Current Consumption | N/A |
| Isolation Resistance | Exceed 50 MΩ – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.67 x 8.39 x 1.50 inches [271 x 213 x 38 mm] |
| Panel Cutout (inches) [mm] | 10.24 x 7.95 [260 x 202] |
| Weight | Approx. 2.65 lbs. [1.2 Kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | ATEX Zone 2/22 Category 3 G/D |
| RoHS | Yes |
Unboxing a cMT3102X
Watch as we unbox, show accessories & I/O ports on the HMI, then load a demo project.
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- cMT3102Xv2R Series Installation Guide
- EBPro Programming Manual
- cMT2000/3000X Series User Manual
- EBPro Quick Start Guide
- cMT Quick Start Guide
- cMT Microsoft SQL Quick Start Guide
- cMT MySQL Quick Start Guide
- MQTT User Manual
- OPC-UA Set-up Overview
- EasyWeb 2.0 Operations Manual
- AWS IoT User Manual
- Azure IoT User Manual
- Activate CODESYS on cMT Models
- CODESYS Quick-Start Guide
Certifications
- UL-cMT Series
- CE UKCA Declaration of Conformity – cMT3102Xv2R
- Ex/ATEX – cMT3102X, cMT3108XH, cMT3108XP
- EU Declaration of Conformity (Battery Regulations)
- RoHS all series
- REACH Certification
- Trade Agreement Act
- Russian Iron and Steel Declaration
- Country of Origin Certification
CAD Files

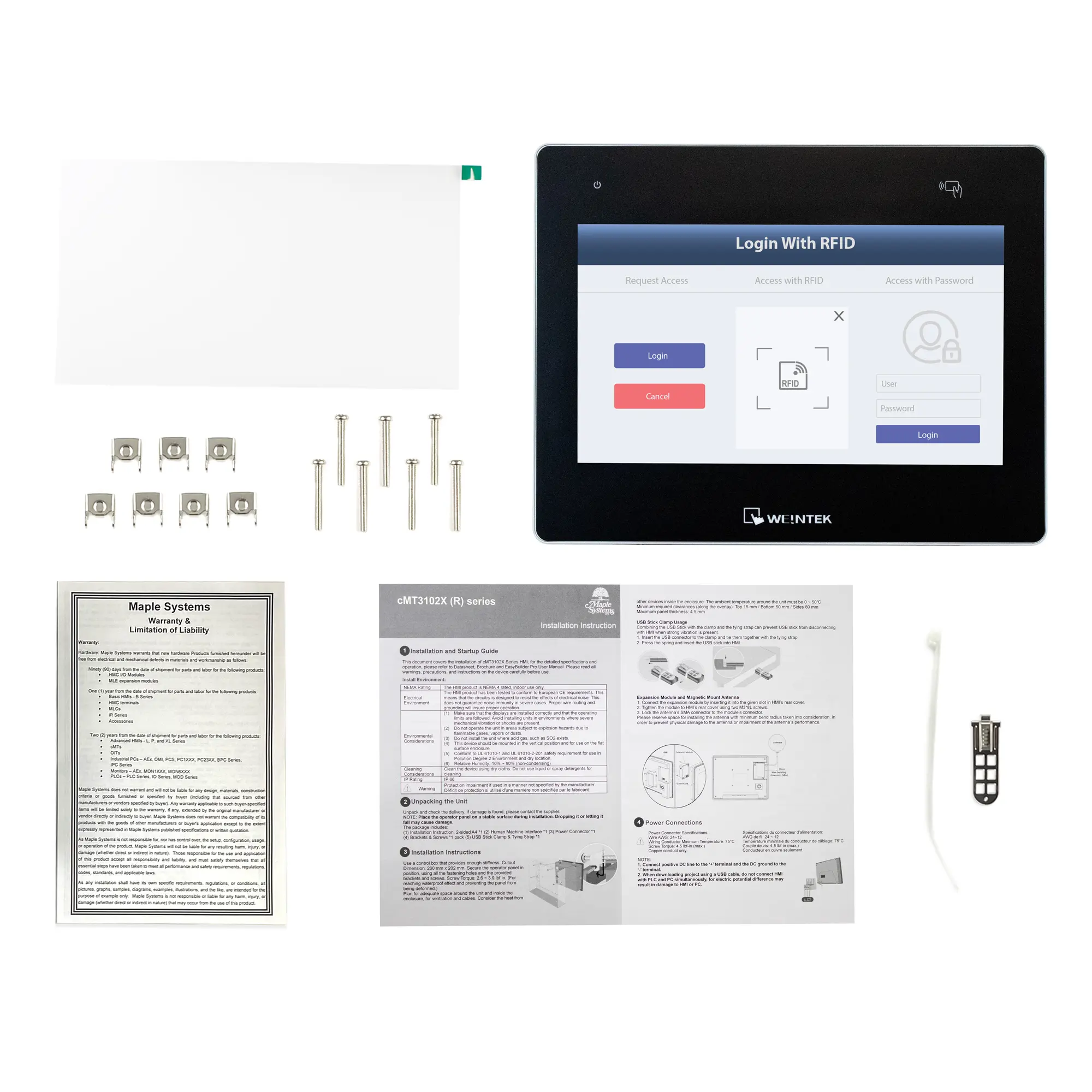

When you order the cMT3102Xv2R-CODESYS the following items are included in the box:
- cMT3102Xv2R Touchscreen HMI
- Warranty Statement
- Installation Instruction
- Product Flyer
- Protective Screen Cover
- Power Connector
- Mounting Clips
- USB Stick Clamp & Tying Strap
![http://cMT3102Xv2R%2010.1%20High%20Performance%20HMI%20with%20Built-in%20RFID%20Whats%20in%20the%20Box%20Image%20with%20RFID%20Log-in%20Screen.](https://media.maplesystems.com/wp-content/uploads/2025/09/cMT3102XR-whats-in-the-box2-1.webp "cMT3102Xv2R 10.1" High Performance HMI with Built-in RFID Whats in the Box Image with RFID Log-in Screen.")
