How to Setup High Speed Counter with an iR-ETN40R using an HMI & PLC Combo
This tutorial shows you how to read an analog input current (4-20mA), display the raw reading, and convert the signal to more meaningful values on the User Interface.
Software Required
Hardware Required
- HMC4070A-M – Other HMC2000/HMC4000 models can also be used
High Speed Counter
High-Speed Counter (HSC) is a hardware-based counter within a PLC. HSCs are used to count fast speed inputs where program cycle scan speeds would be surpassed in a typical digital input. HSC are used for a wide range of manufacturing duties, but the most common is to monitor motor speed or calculate the position of a given target.

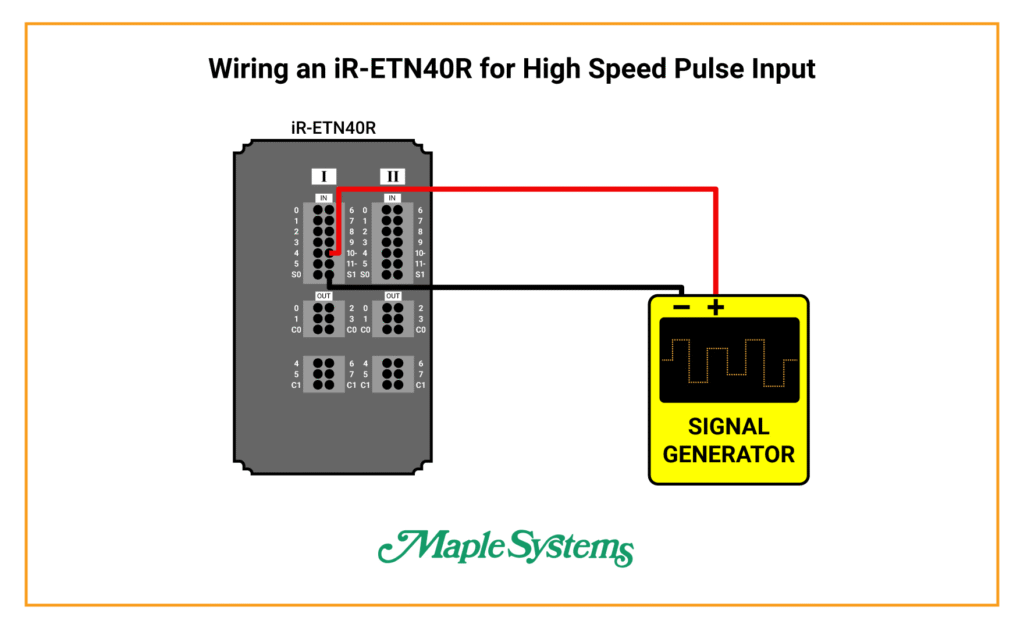

Wiring and Circuit Design
Channels 10 and 11 on Terminal I and Terminal II are the 4 High Speed Inputs on the iR-ETN40R.

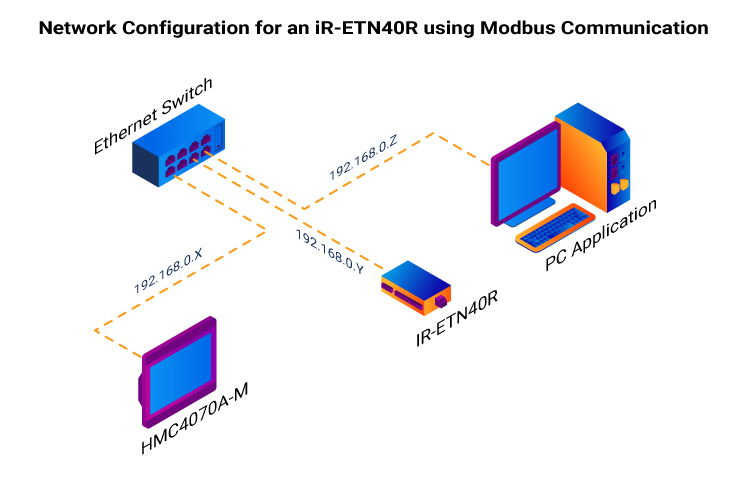

Network Configuration Diagram
Network Configuration for an iR-ETN40R using Modbus Communication

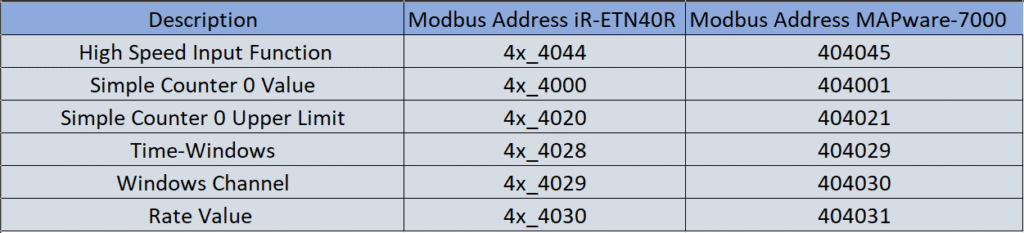

Modbus Addresses
These are the Modbus addresses for the High Speed Counter on the iR-ETN40R. In MAPware-7000 modbus addressing, the “x” is replaced by “0”, the underscore “_” is removed and its offset by 1 (add 1).

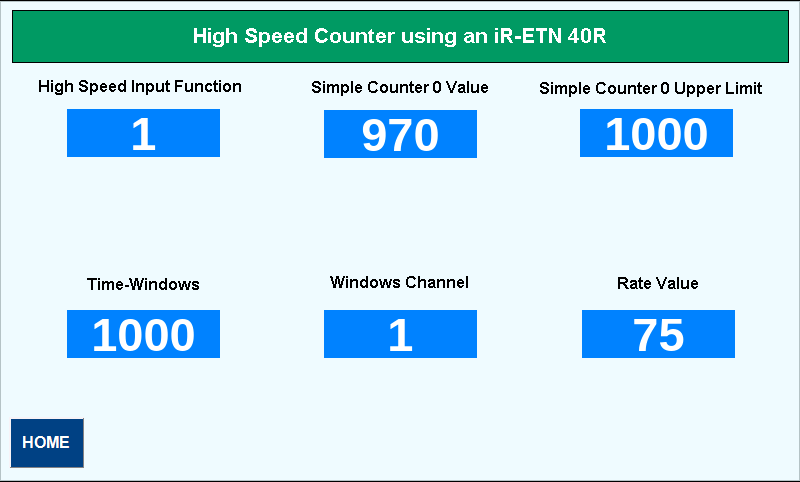

User Interface
Sample Project
The project shown above was designed for the specific hardware mentioned at the beginning of the tutorial and is intended to provide you guidance when programming your unit. If you are using models other than the ones specified in this sample project, similar steps can be duplicated within your own project.
Download MAPware Sample Project
Download EasyRemoteIO Sample Project
Resources & Documentation
HMC/MAPware-7000 Resources
MAPware-7000 Getting Started Guide
MAPware-7000 Programming Manual
IEC 61131-3 Programming Guide for MAPware-7000
iR-ETN40R/EasyRemote IO
- iR-ETN40R Product Specification
- iR-ETN40R QuickStart Guide
- iR-ETN40R as a high speed counter
- EasyRemote User Guide
