How to Read Analog Input Current (4-20mA)

How to Read Analog Input Current (4-20mA)

This tutorial shows you how to read an analog input current (4-20mA), display the raw reading, and convert the signal to more meaningful values on the User Interface.

Software Required

Hardware Required

Wiring and Circuit Design

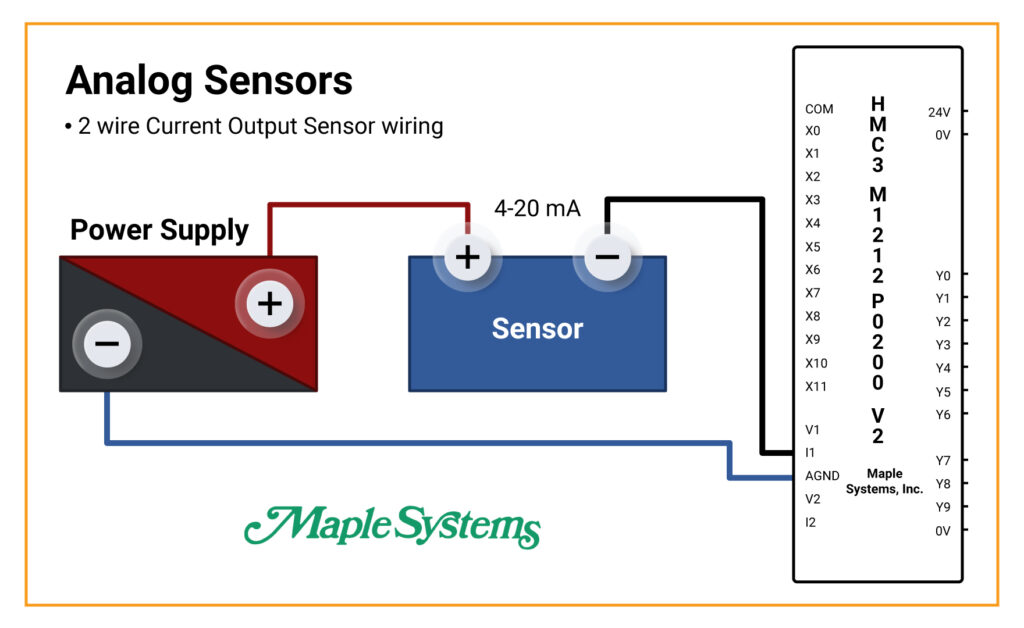

Analog Input 4-20mA (2) Wire Voltage Output

Red Wire: 24V Power from Power Supply

Black Wire: Output Signal to PLC/Controller

Blue Wire: 0V on Sensor to Negative Power Supply

Analog Input 4-20mA (3) Wire Voltage Output

Red Wire: 24V Power from Power Supply

Black Wire: Output Signal to PLC/Controller

Blue Wire: 0V on Sensor to Negative Power Supply

2nd Blue Wire: Ground to Negative Power Supply

Software Code

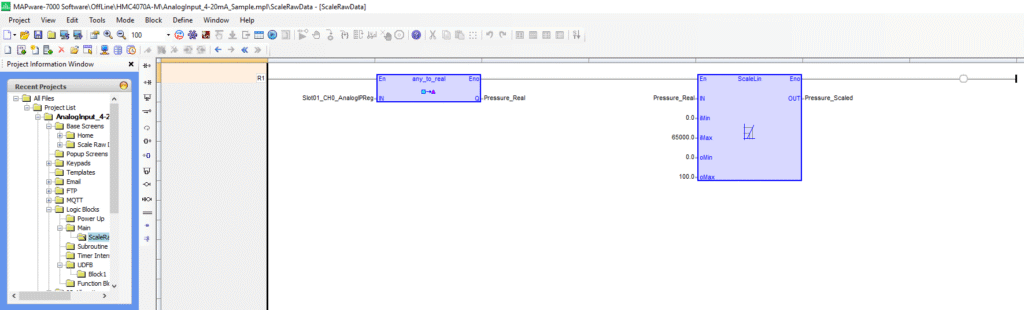

IEC Ladder Diagram

Structured Text

Another type of IEC Language you can use:

User Interface

Sample Project

The project shown above was designed for the specific hardware mentioned at the beginning of the tutorial and is intended to provide you guidance when programming your unit. If you are using models other than the ones specified in this sample project, similar steps can be duplicated within your own project.

Download MAPware Sample Project

Resources & Documentation

HMC/MAPware-7000 Resources

More

See our Support Center for a complete list of Quick Start and Installation Guides

Additional Resources

The following table shows the cross reference values for the Raw Register Value in MAPware and what current or voltage it corresponds to depending on the analog input type configured for the channel. This may be different from module to module so please refer to the HMC3 I/O module guide and find your specific module part number to see those corresponding values.

Expansion Module Register Value0 to 20mA4 to 20mA0 to 10V0 to 5V
00mA4mA0V0V
163845mA8mA2.5V1.25V
3276810mA12mA5V2.5V
4915215mA16mA7.5V3.75V
6553520mA20mA10V5V
