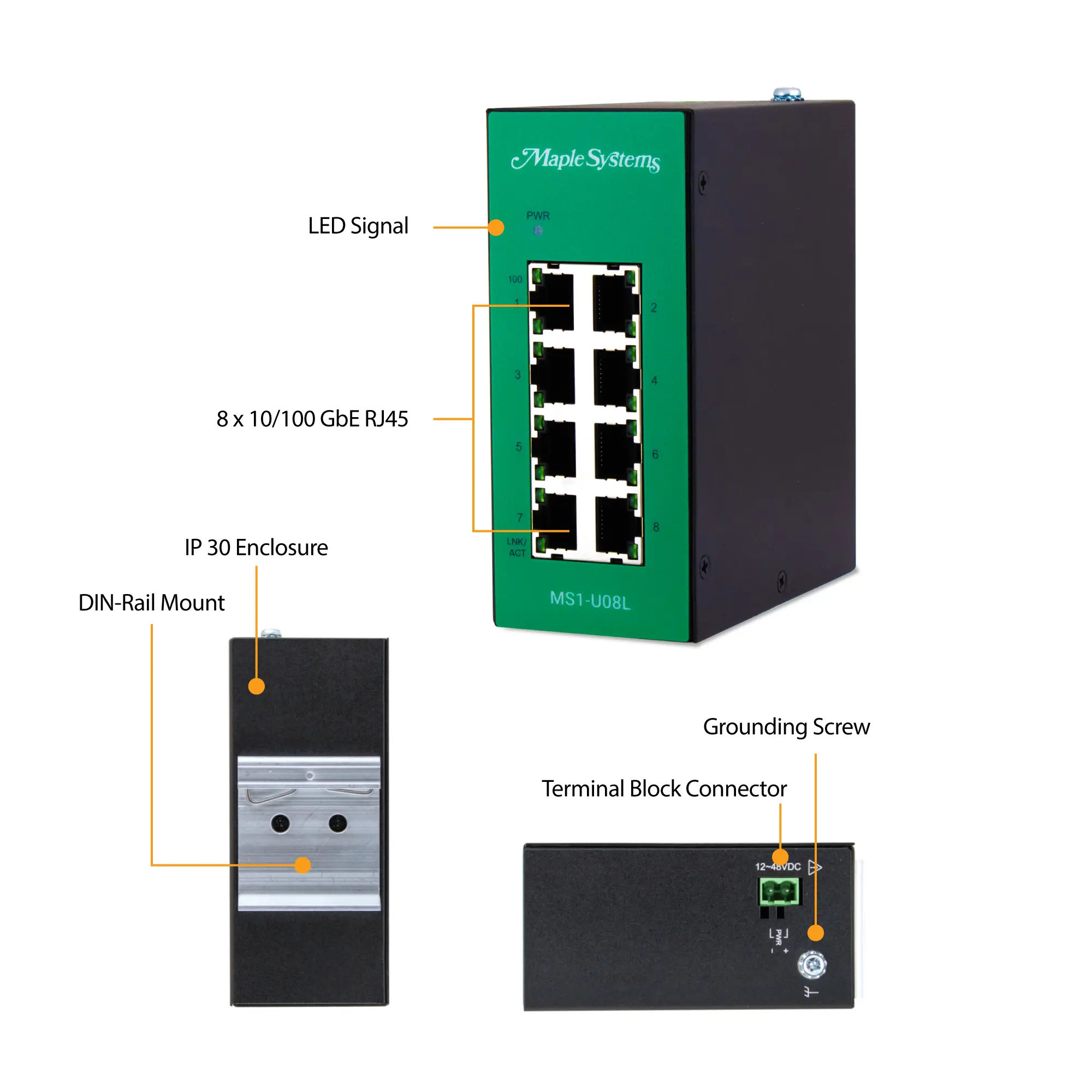

MS1-U08L
- 8 x 10/100 RJ45 ports
- Current Overload & Power Input Polarity Protection
- Auto-Negotiation, Flow Control, Storm Control, VLAN passthru
- Operating temperature -40℃~75℃ (-40°F~167°F)
- Metal Housing, Din-Rail
- IP30, UL, CE, FCC, RoHS, EMI, EMS, Shock, Vibration
8 Port Unmanaged Industrial Network Switch
MS1-U08L
Our MS1-U08L unmanaged industrial switch used to expand ethernet networks in factory floors and for high demanding environments with simple requirements and limited space.
This switch offers auto-negotiation on all its ports to send data across devices efficiently in industrial ethernet applications, and in-built traffic optimization with Flow and Storm Control Features to offer reliable performance and prevent packet loss transporting VLAN packets without modifying them.
This networking device is built with industrial grade components to protect it from hazards like vibration, shock, free fall, interference, and extreme temperatures that make it resistant to harsh industrial environments.
Review this product
Share your thoughts with other customers about this product
Port Specifications
RJ45 Copper Ports | Eight (8) |
RJ45 Speed | 10/100BASE-T |
Auto Negotiation & MDI/MDI-X | Supported |
RJ Nominal Max. Distance | 328 feet (100 meters) |
Performance
Jumbo Frame Size | 1552 Bytes |
MAC Table Size | 1K entries |
L2 Forwarding Rate | 11.9Mpps |
Switch Fabric | 1.6 Gbps |
Throughput | 14,880 pps to 10 Mbps Ethernet ports 148,800 pps to 100 Mbps Fast Ethernet ports |
Traffic Control
Flow Control | Yes |
Storm Control | Yes |
VLAN Passthru | Supports up to 4094 VLAN IDs |
LLDP Filter | Yes |
Port Priority | N/A |
QoS Queue | N/A |
Industrial QoS | N/A |
802.1p QoS/CoS | N/A |
IEEE Standards
Compliance | 802.3, 802.3u, 802.3x |
Power Details
Input Connector | Terminal Block |
Max Input Current | 0.125A @ 24VDC |
Max Power Consumption | 3W |
Current Overload Protection | Yes |
Redundant Power System | N/A |
Input Voltage | 12~48VDC, 0.2A max |
Reverse Polarity Protection | Yes |
Power Input Polarity Protection | Yes |
Mechanical
LED Panel | PWR, 100, LNK/ACT |
Dip Switches | N/A |
Alarm Relay | N/A |
Enclosure Material | Black Powder-Coated Metal |
Dimensions WxHxD | 50 x 119.2 x 99.9 mm (1.97 x 4.69 x 3.93”) |
Weight | 435g (0.96 lb) |
Mounting | 35 mm DIN Rail |
Environmental
Storage Temperature | -40°F~185°F (-40°C~85°C) |
Operating Temperature | -40°F~167°F (-40°C~75°C) |
Operating/Storage Relative Humidity | 5 to 95% RH (non-condensing) |
Certifications/Standards
UL | cULus Listed |
RoHS | Compliant |
FCC | Class B Compliant |
Ingress Protection | IP30 |
Shock Test | IEC 60068-2-27 |
Freefall Test | IEC 60068-2-31 |
Vibration | IEC 60068-2-6 |
EMI / CE | FCC Part 15 Class B, EN 55011, EN 55032 Class B, EN 61000-6-4 |
EMS / CE | EN 55024, EN 61000-6-2 IEC 61000-4-2 (ESD): Level 3, IEC 61000-4-3 (RS): Level 3, IEC 61000-4-4 (Burst): Level 3, IEC 61000-4-5 (Surge): Level 3, EN 61000-4-6 (CS): Level 3, IEC 61000-4-8 (PFMF) |
CE UKCA | Yes |
CE | Yes |
Customers who bought this product also bought:
-
Power Supply, Single Output, DIN Rail Mountable. Input: 100-240VAC, 1.1A/Output: 24VDC, 1.7A.$40.00
-
Cable, CAT5E Ethernet, 5′$15.00
-
Cable, CAT5E Ethernet, Crossover, 5′$15.00
-
DIN Mounting Rail, 300mm (11.81″) 5/Set.$10.00
-
DIN Mounting Rail, 450mm (17.72″) 5/Set.$15.00
-
DIN Mounting Rail, 600mm (23.62″) 5/Set.$20.00
When you order the MS1-U08L the following items are included in the box:
1 x MS1-U08L
1 x Power Connector
1 x Quick Start Guide
