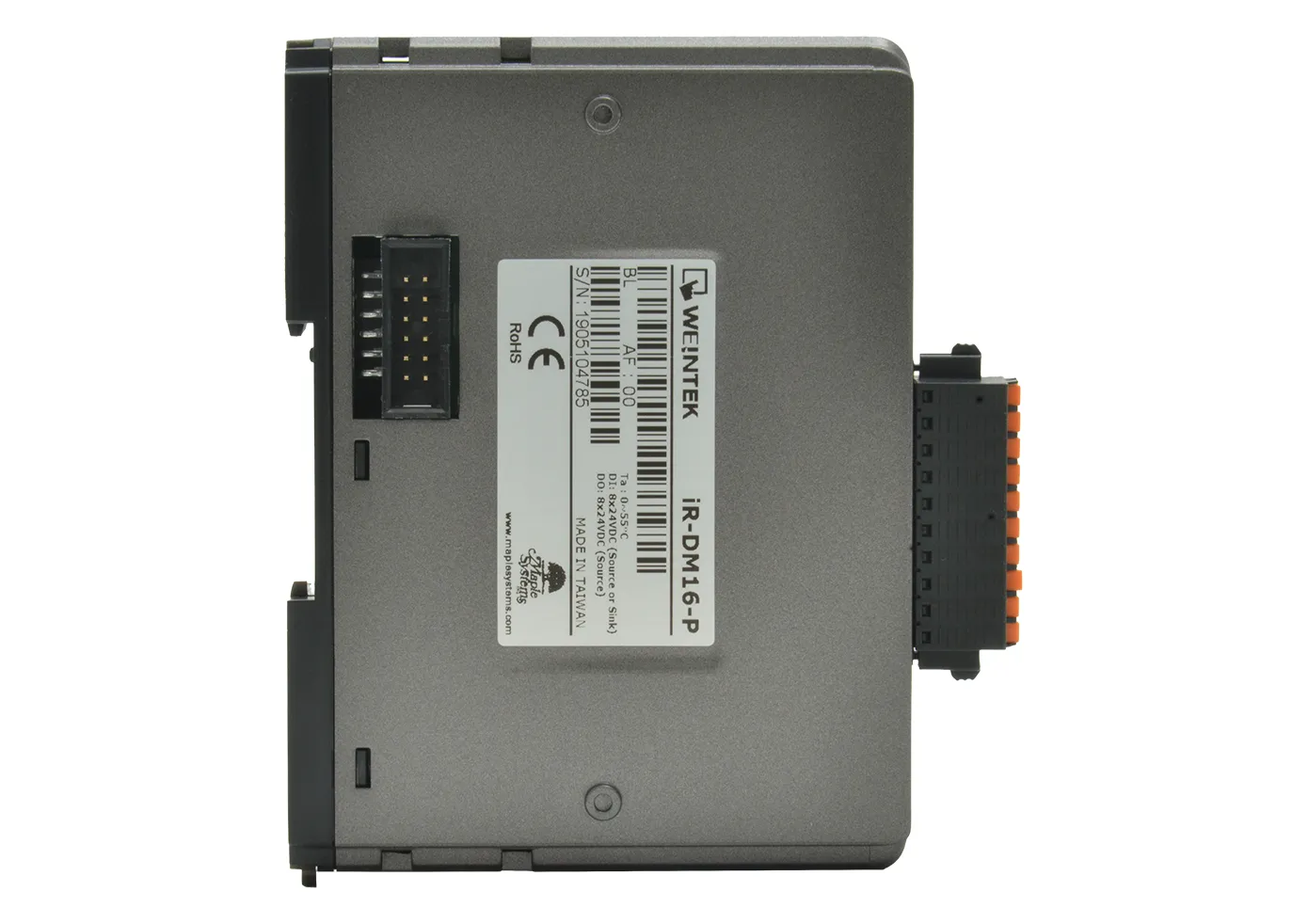

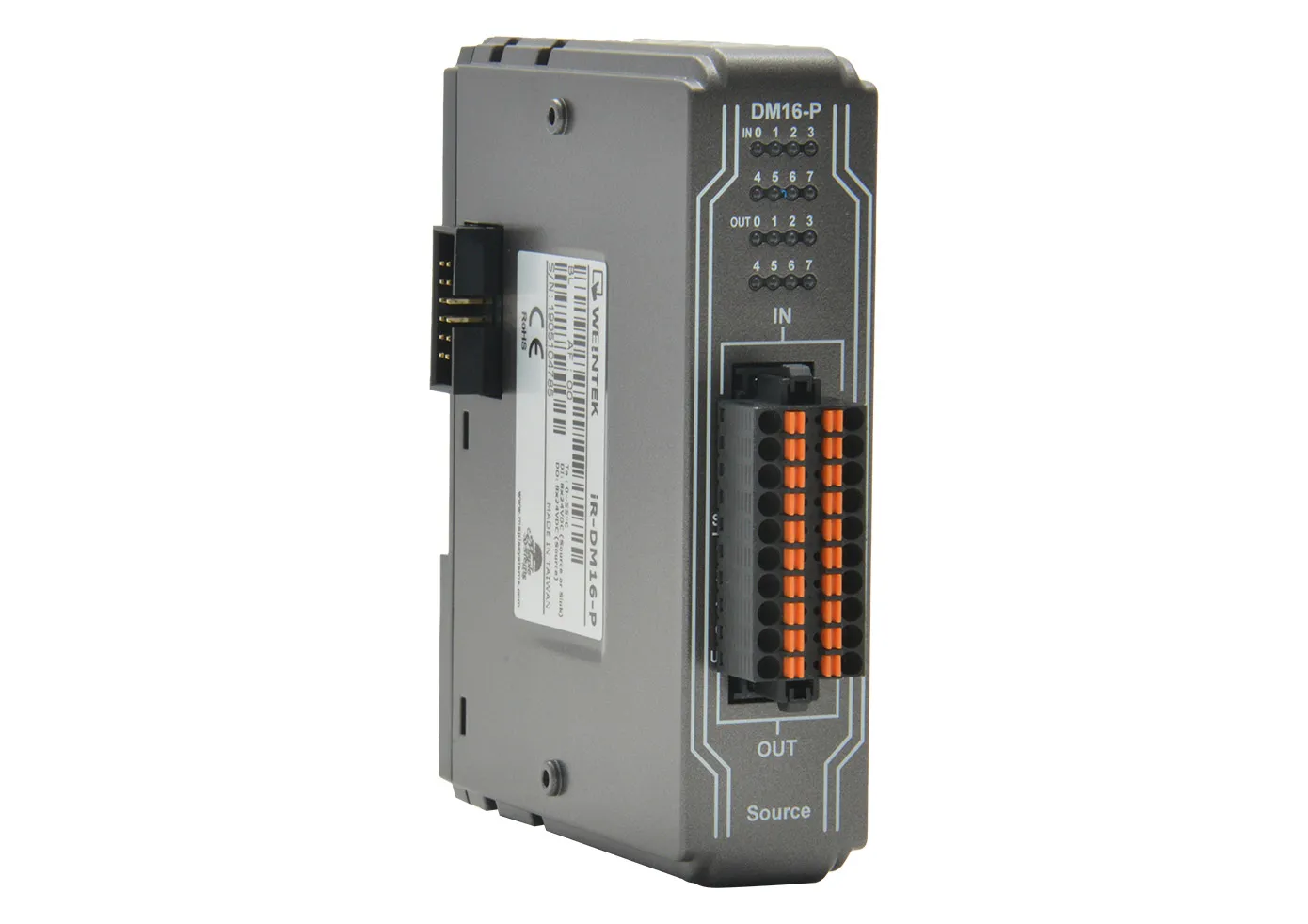

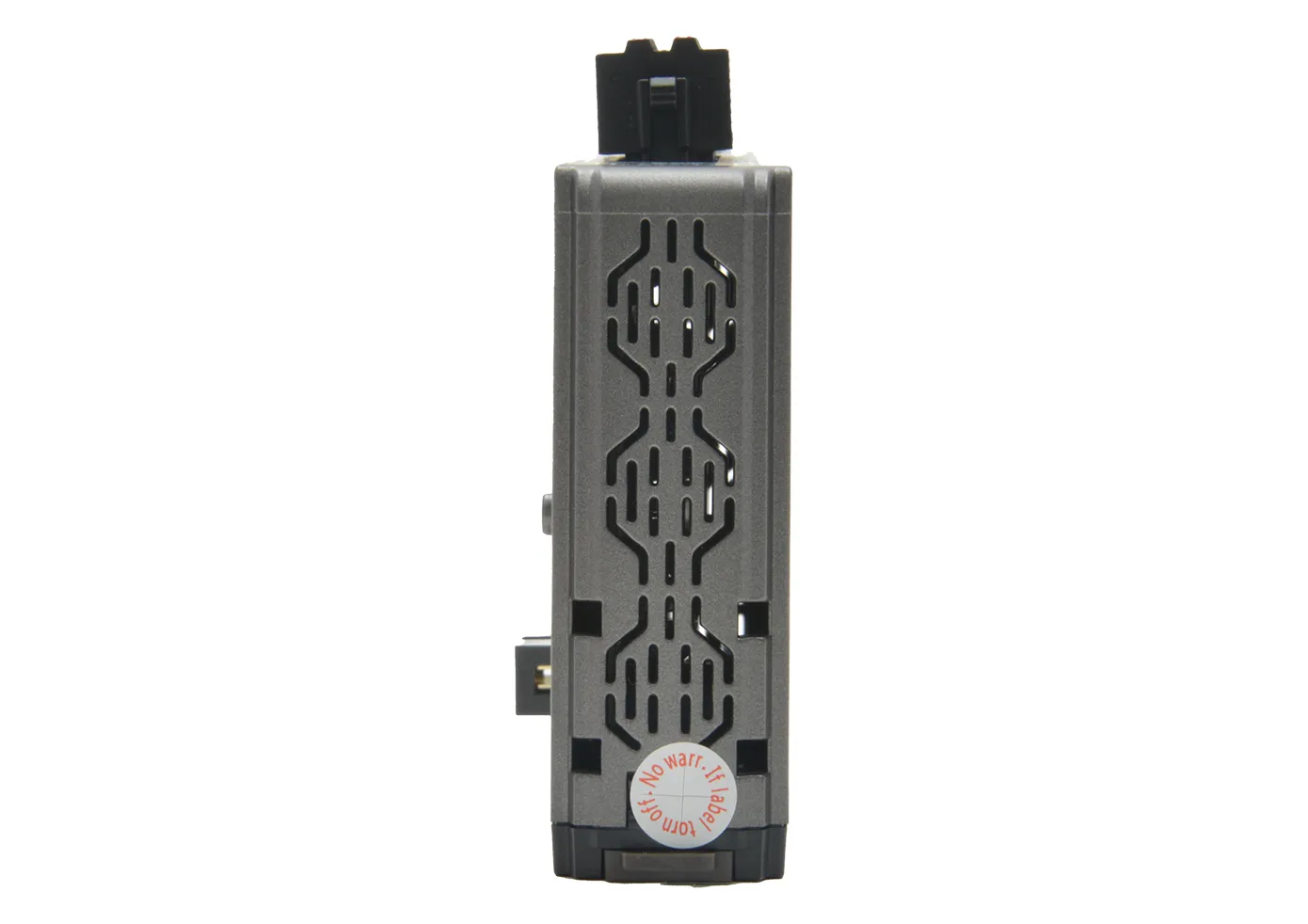

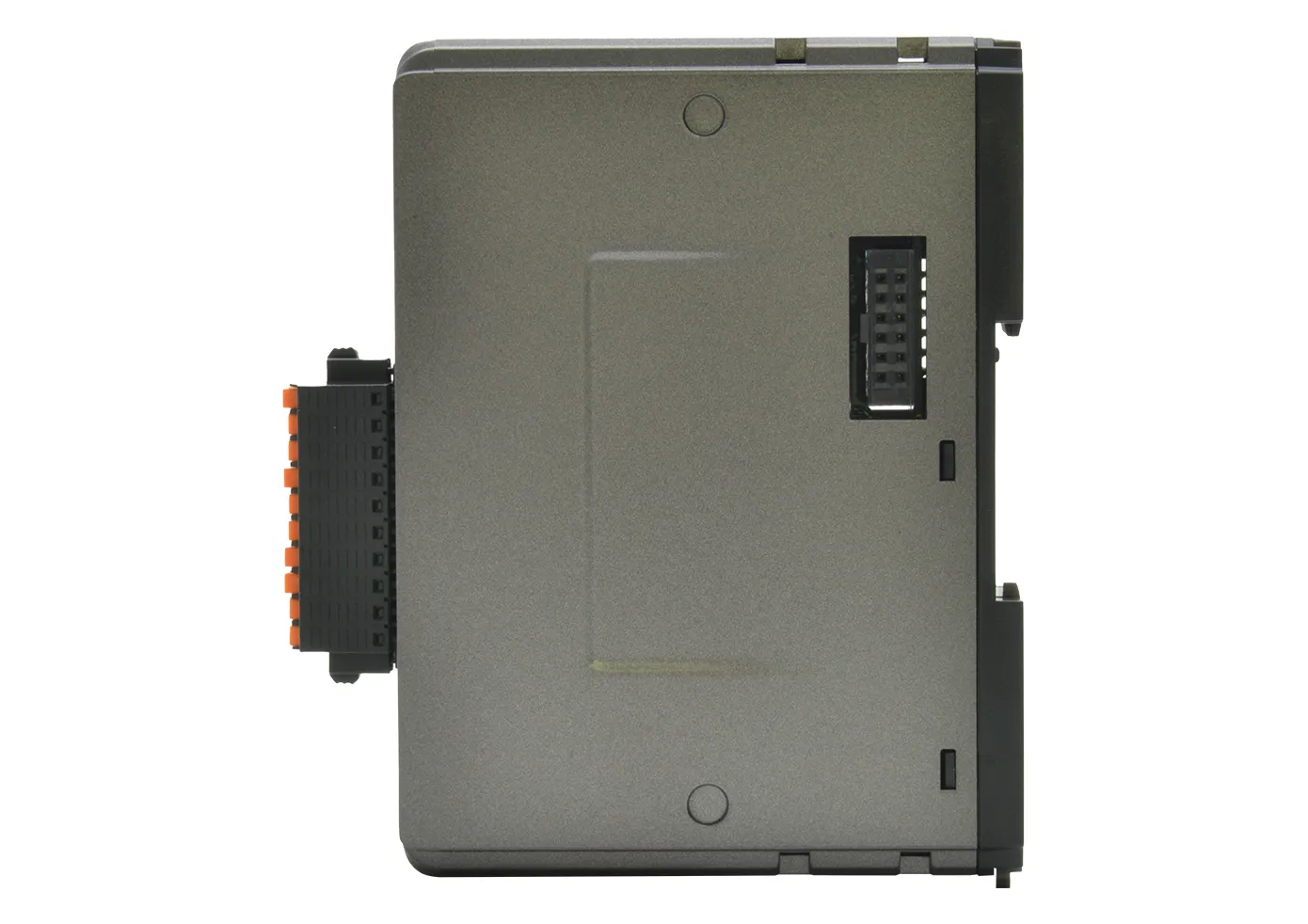

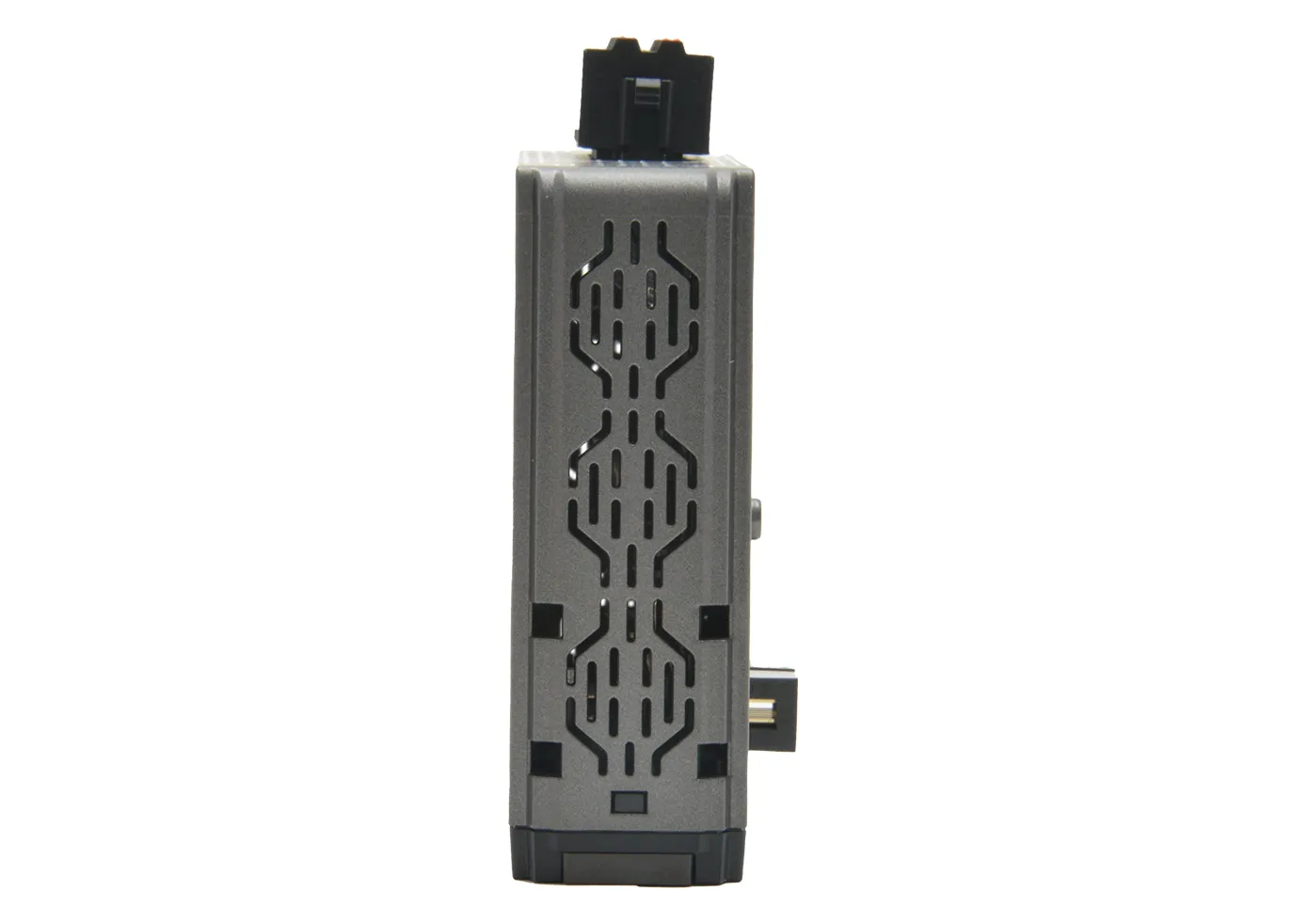

Digital IO Module | iR-DM16-P
$139.00
As part of the iR Series, this I/O module works with any qualifying cMT HMI or PLC Base (cMT-CTRL01) to implement a control solution that utilizes our free EasyRemoteIO software or CODESYS programming. Mix and match additional I/O modules to meet your unique project needs. See below for more information how this module integrates with other hardware.
- Volume discounts available.
- US-based technical support.
Share the product:
IR-DM16-P Highlights
- 8 Digital Inputs
- 8 Digital Outputs (PNP)
Communication
| Connection Cross-section | AWG 28-16 |
Digital Input
| Total Number of Inputs | 8 |
| Isolation | Yes, optical isolation |
| Input Logic | Sink or Source |
| Response Time | OFF -> ON 5ms; ON -> OFF 1ms |
| Input Impedance | 5.6 KΩ |
| Current Consumption | 130mA@5VDC |
| High Level Input Voltage | 15~28 VDC |
| Low Level Input Voltage | 0~5 VDC |
Digital Output
| Total Number of Outputs | 8 |
| Output Logic | Source |
| Output Voltage | 11~28VDC |
| Output Current | 0.5A per channel (Max 4A) |
| Response Time | 300μs |
| Isolation | Yes, optocoupler isolation |
| Current Consumption | 130mA@5VDC |
Mechanical
| Enclosure Material | Plastic |
| PCB Coating | Yes |
| Dimensions WxHxD | 27 x 109 x 81 mm |
| Weight | Approx. 0.12 kg |
| Mounting | 35mm DIN rail mounting |
Environmental
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Storage Temperature | -20° ~ 70°C (-4° ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| IP Rating | IP20 |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
| EMC Immunity | Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005 |
Remote IO Webinar
Remote IO product line demonstration and it's quick and simple integration into an existing system
User Friendly Configuration Software
Experience the freedom of configuring remote I/O without any cost.
Our free and user friendly configuration tool lets you easily design custom IO blocks by selecting digital and analog modules. With a straightforward interface, mapping them to your controller is seamless and stress-free. No hidden fees, no complicated steps—just simple setup to get your control systems up and running faster.
When you order the IR-DM16-P the following items are included in the box:
- iR-DM16-P
- 2 x Clips
- Manual
