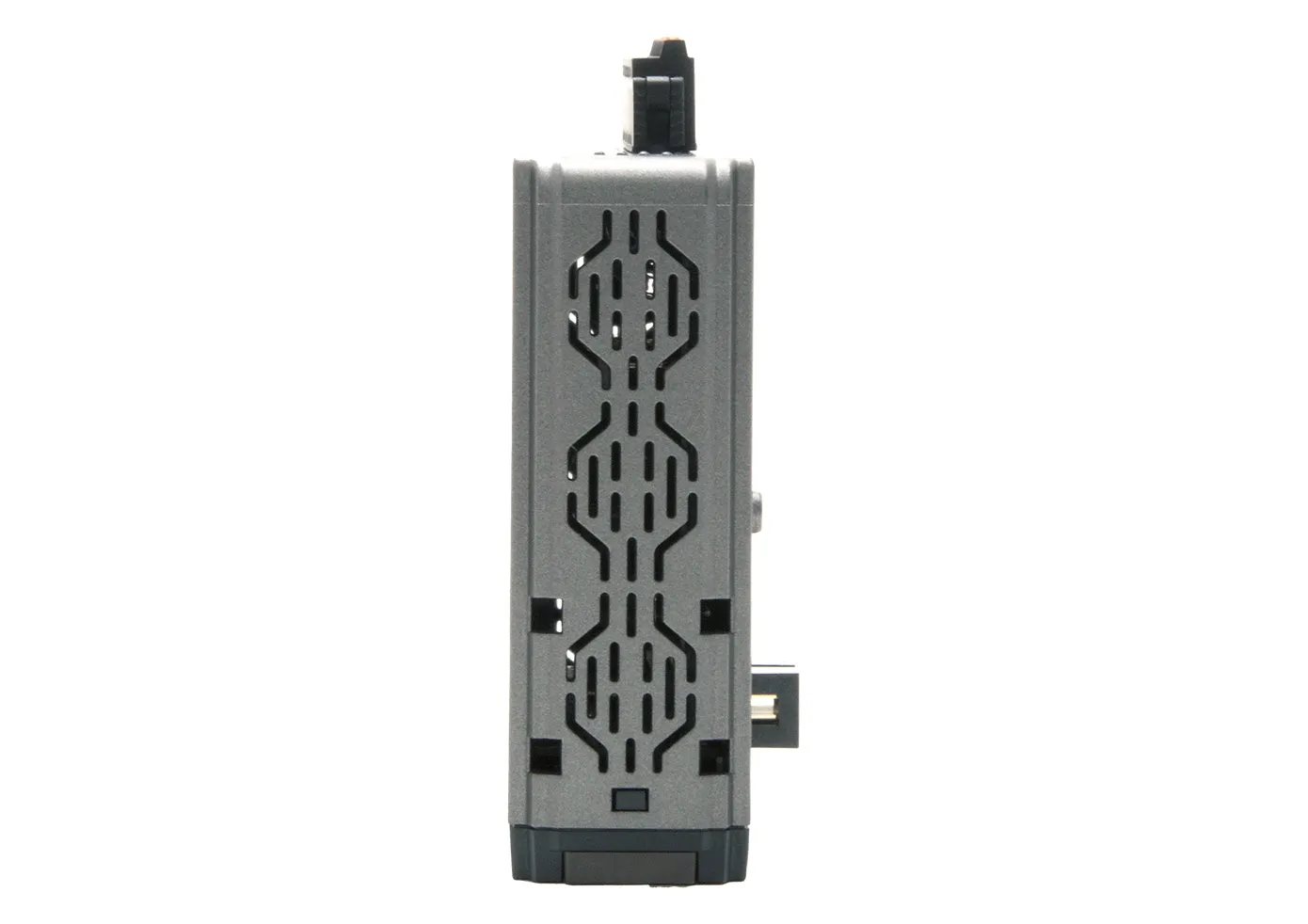

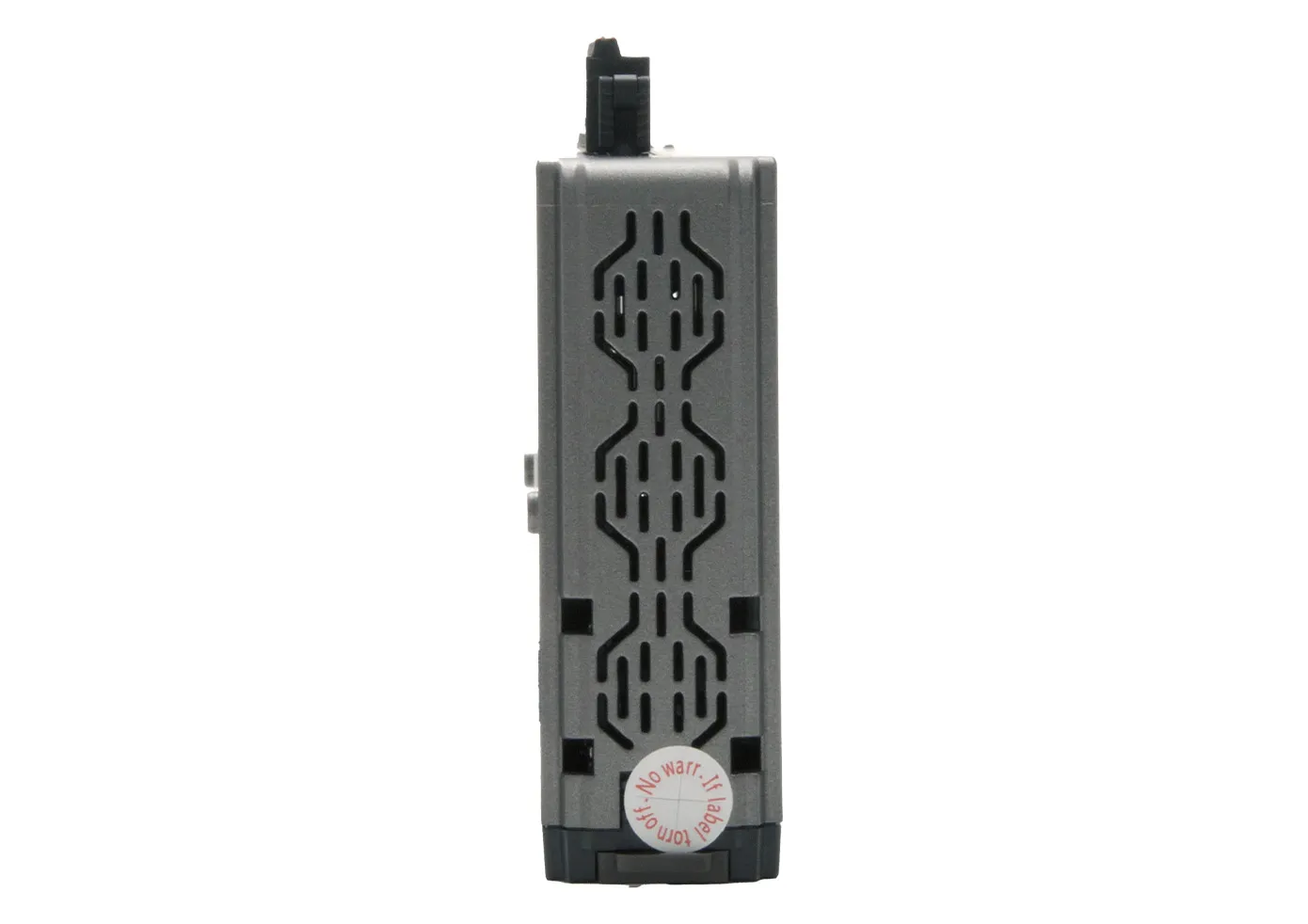

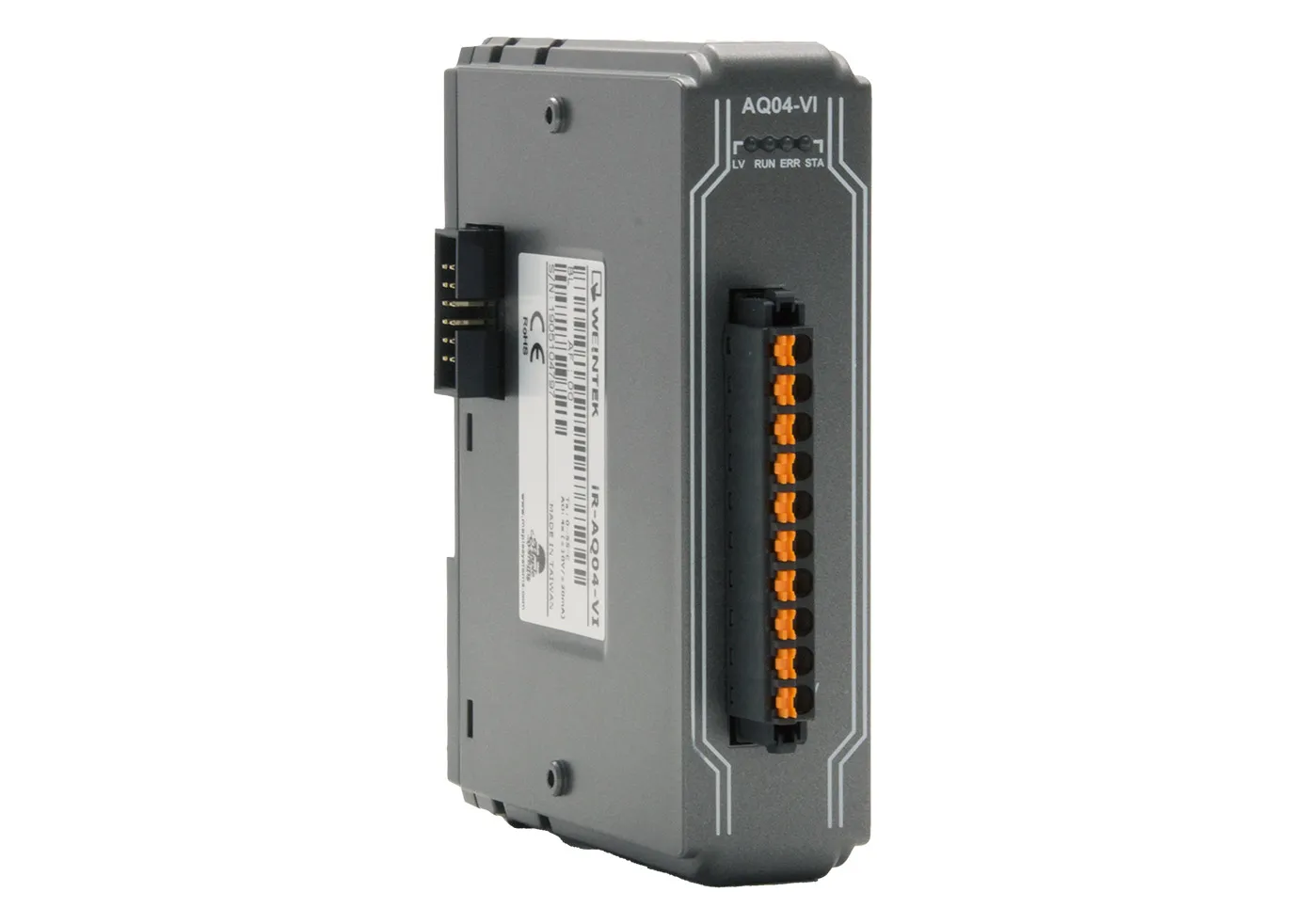

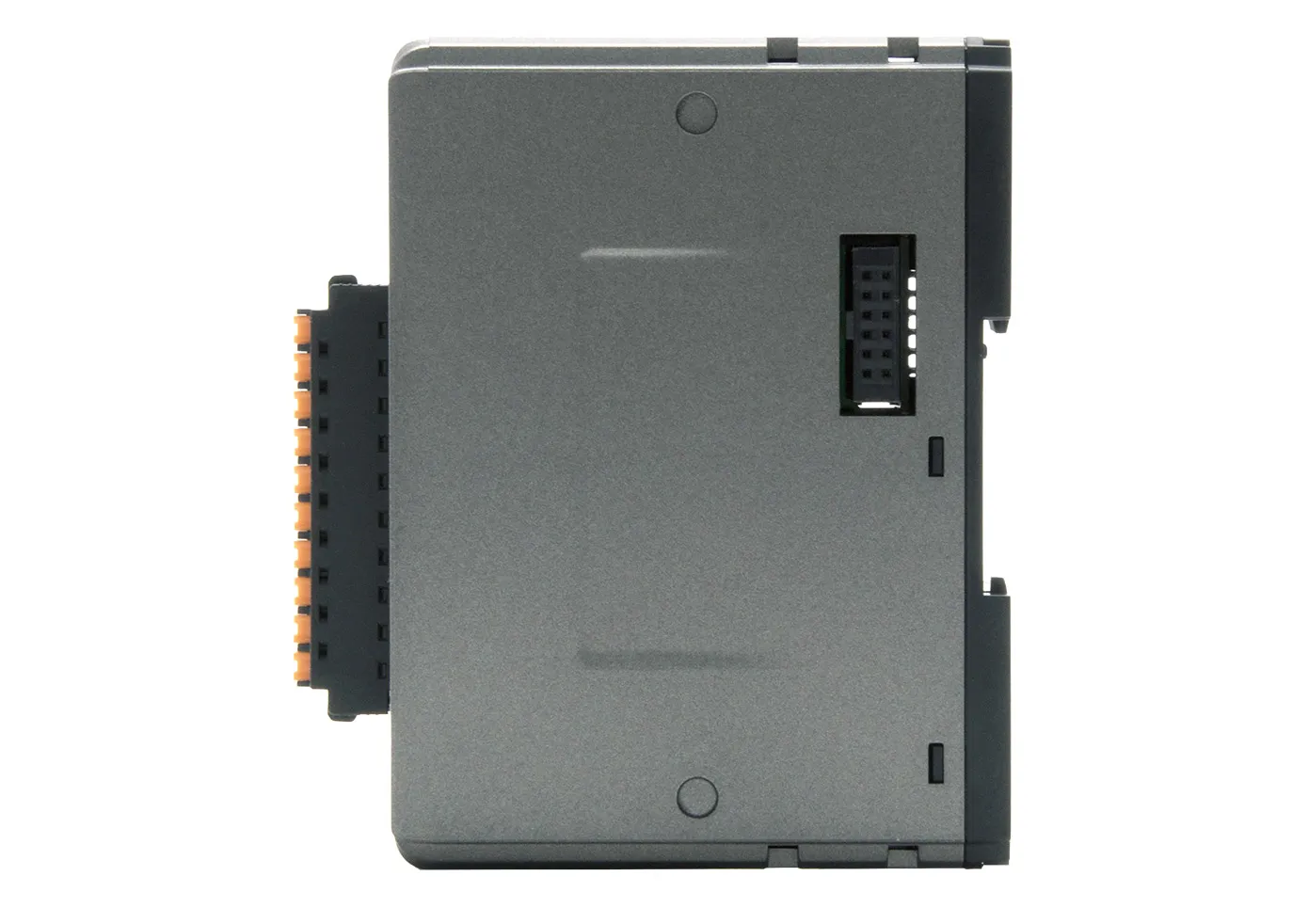

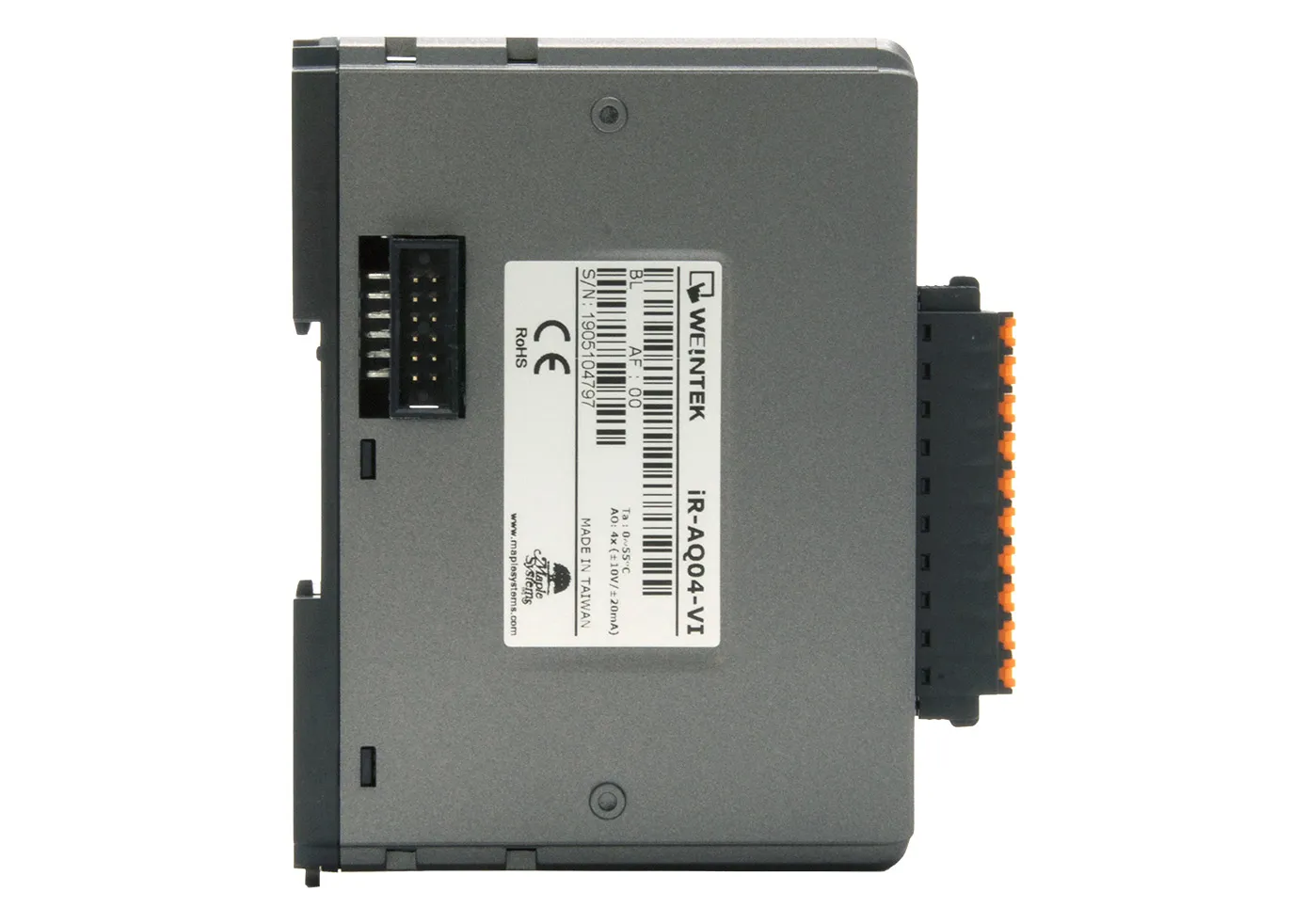

Analog IO Module | iR-AQ04-VI
$169.00
Pair this I/O module with the cMT-CTRL01 PLC base, or any qualifying cMT HMI and Communication Coupler combination to implement a control solution that utilizes optional CODESYS programming or our free EasyRemoteIO. Up to 16 modules can be added to create a highly functioning remote I/O block.
- Volume discounts available.
- US-based technical support.
Share the product:
IR-AQ04-VI Highlights
- 4 Analog Outputs (Voltage, Current)
Communication
| Connection Cross-section | AWG 24-16 |
Analog I/O
| Number of Analog Outputs | 4 (±10V/ ±20mA) |
| Current Consumption | 65mA@5VDC |
| Analog Power Supply | 24 VDC(20.4 VDC~28.8 VDC)(-15%~+20%) |
Analog Output
| Output Impedance | ≧1kΩ: -10~10V, -5V~5V, 1~5V ≦500Ω: -20~20mA, 40~20mA |
| Data Format | -10~10V: ±32000 -5V~5V: ±32000 1-5V: 0~32000 -20~20mA: ±32000 4~20mA: 0~32000 |
| Resolution | -10~10V: 5mV, 12 bit -5V~5V: 5mV, 11 bit 1~5V: 5mV, 10 bit -20~20mA: 10uA, 12 bit 4~20mA: 10uA, 11 bit |
| Accuracy | ± 0.2 % Full Scale@25°C ± 0.3 % Full Scale@0° ~ 55°C |
| Conversion Time | 1.6ms/4 channels ,1.3ms/3 channels, 1ms/2 channels, 700us/1 channel |
| Isolation | 500 VDC：(Analog / Digital) |
| Output Range | -10V~10V、-20mA~20mA |
Mechanical
| Enclosure Material | Plastic |
| PCB Coating | Yes |
| Dimensions WxHxD | 27 x 109 x 81 mm |
| Weight | Approx. 0.12 kg |
| Mounting | 35mm DIN rail mounting |
Environmental
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Storage Temperature | -20° ~ 70°C (-4° ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| IP Rating | IP20 |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
| EMC Immunity | Conforms to EN 55032: 2012+AC: 2013, Class A EN 61000-6-4: 2007+A1:2011 EN 55024: 2010+A1: 2015 EN 61000-6-2:2005 |
Remote IO Webinar
Remote IO product line demonstration and it's quick and simple integration into an existing system
User Friendly Configuration Software
Experience the freedom of configuring remote I/O without any cost.
Our free and user friendly configuration tool lets you easily design custom IO blocks by selecting digital and analog modules. With a straightforward interface, mapping them to your controller is seamless and stress-free. No hidden fees, no complicated steps—just simple setup to get your control systems up and running faster.
Documents
Manuals
- iR-AQ04-VI, iR-AM06-VI, iR-AI04-VI, User Manual
- iR-Axxx Series Quick-Start-Guide
- EasyRemoteIO User Guide
Certifications
- CE-iR-AI04-TR, iR-AQ04-VI, iR-AM06-VI, iR-AI04-VI, iR-ECAT, cMT-CTRL01, iR-PU01-P
- UL-cMT Series
- RoHS all series
- Trade Agreement Act
- Russian Iron and Steel Declaration
- Country of Origin Certification
CAD Files
When you order the IR-AQ04-VI the following items are included in the box:
- iR-AQ04-VI
- 2 x Clips
- Manual
