UL Certified, Compact Fanless Industrial PC with Intel® Atom® Quad-Core
$995.00
This compact, UL listed, wide-operating temperature (-40~70°C) industrial IPC2610A is ruggedly built, making it ideal for outdoor applications. With a Windows® Operating System, this PC supports 3rd party SCADA software like AVEVA® Edge, Ignition, SIMATIC, or FactoryTalk®.
- Compare IPC2610A to similar models
- Pair with one of our Industrial Monitors
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- Typically ships in 2 days.
- US-based technical support.
Share the product:
The base options are selected by default. Select the options to get the desired configuration.
System
| CPU | Intel® Quad-Core Atom® x7-E3950 @ 1.6 GHz |
| Memory (RAM) | 1 x DDR3L 204-pin SO-DIMM RAM (4, 8 GB) |
| System Chipset | SoC |
| Solid State Drive Type | mSATA |
| Solid State Drive Capacity | 128, 256, 512 GB, 1TB SSD |
| CPU Graphics | Intel® UHD Graphics |
| TPM Module | Yes (TPM 2.0) |
Storage
| Solid State Drive | 1 x mSATA 3D TLC (128, 256, 512 GB, 1TB SSD) |
| SD Card Slot | N/A |
Front I/O
| Ethernet/LAN | 2 x GbE RJ-45 |
| Power | 1 x 3-Pin Terminal Block Connector |
| USB 3.0 Type A | 4 |
| Power Switch | 1 x Momentary Pushbutton |
| Display Interface | 1 x DisplayPort (max. 4096 x 2160 pixels @60Hz); 1 x DVI-I Port (max. 2560 x 1600 pixels @60Hz) |
Side I/O
| Wireless LAN | 2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased) |
| Audio | 1 x 3.5 mm Line-out |
| Serial | 2 x RS-232/422/485 DE-9P: COM1, COM2 (default RS-232) |
Expansion I/O
| Expansion Option | Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support |
Electrical
| Input Power | 43.2 W Max |
| Input Voltage | 9~36 VDC +/- 10% |
| Input Current | 4.8 A Max |
Mechanical

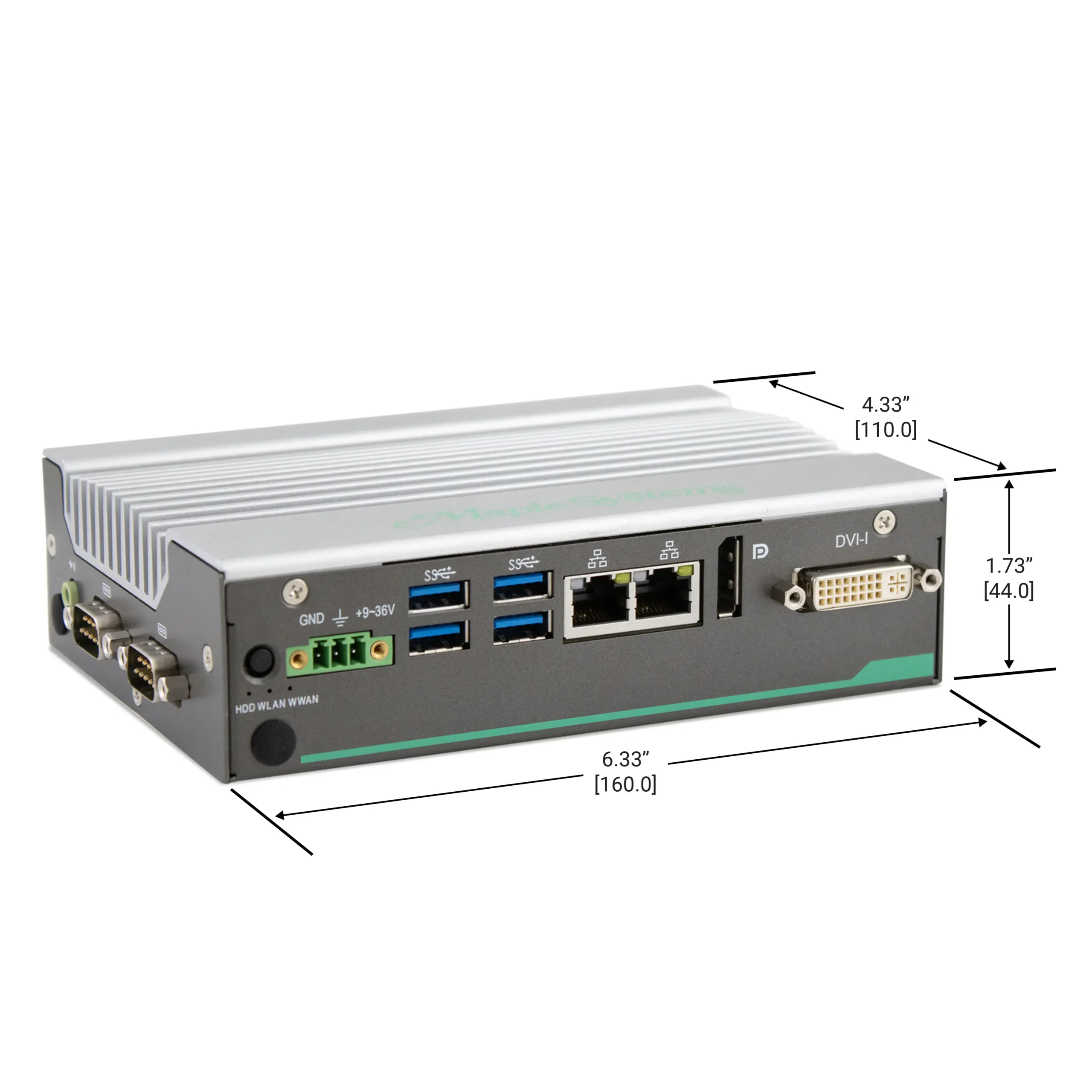

| Dimensions WxHxD | 6.30 x 4.33 x 1.73 inches [160 x 110 x 44 mm] |
| Weight | Approx. 2.2 lbs. [1.0 kg] |
| Mounting | Wall Mounting Kit Included; DIN-Rail Mounting Kit Included |
| Construction | Silver Anodized Aluminum Heatsink, Grey Steel Chassis |
Environmental
| Shock Resistance | Operating: 30G, 11ms duration (per MIL-STD-810G); Non-Operating: 40G, 11ms duration (per MIL-STD-810G) |
| Vibration Resistance | Operating: 2.0 Grms, 5~500Hz, random operation (per IEC 60068-2-64); Non-Operating: 3.0 Grms, 5~500Hz, random operation (per IEC 60068-2-64) |
| Operating Temperature | -40~158°F [-40~70°C] |
| Storage Temperature | -40°F~185°F (-40°C~85°C) |
| Storage Humidity | 5 to 90% @45°C, non-condensing |
Certification
| IP Rating | IP54 |
| CE | Yes |
| UL | Yes |
| RoHS | Yes |
| FCC | Class B |
Unboxing an IPC2610A
You'll see what accessories come in the box, the IPC and all its I/O ports, & pairing w/ a Monitor.
- Windows
- SCADA – AVEVA
When you order the IPC2610A the following items are included in the box:
- IPC2610A Series Industrial Box PC unit
- Wall Mounting Kit
- DIN-Rail Mounting Kit
- 3-Pin Terminal Block Power Connector
- Warranty Statement Insert
