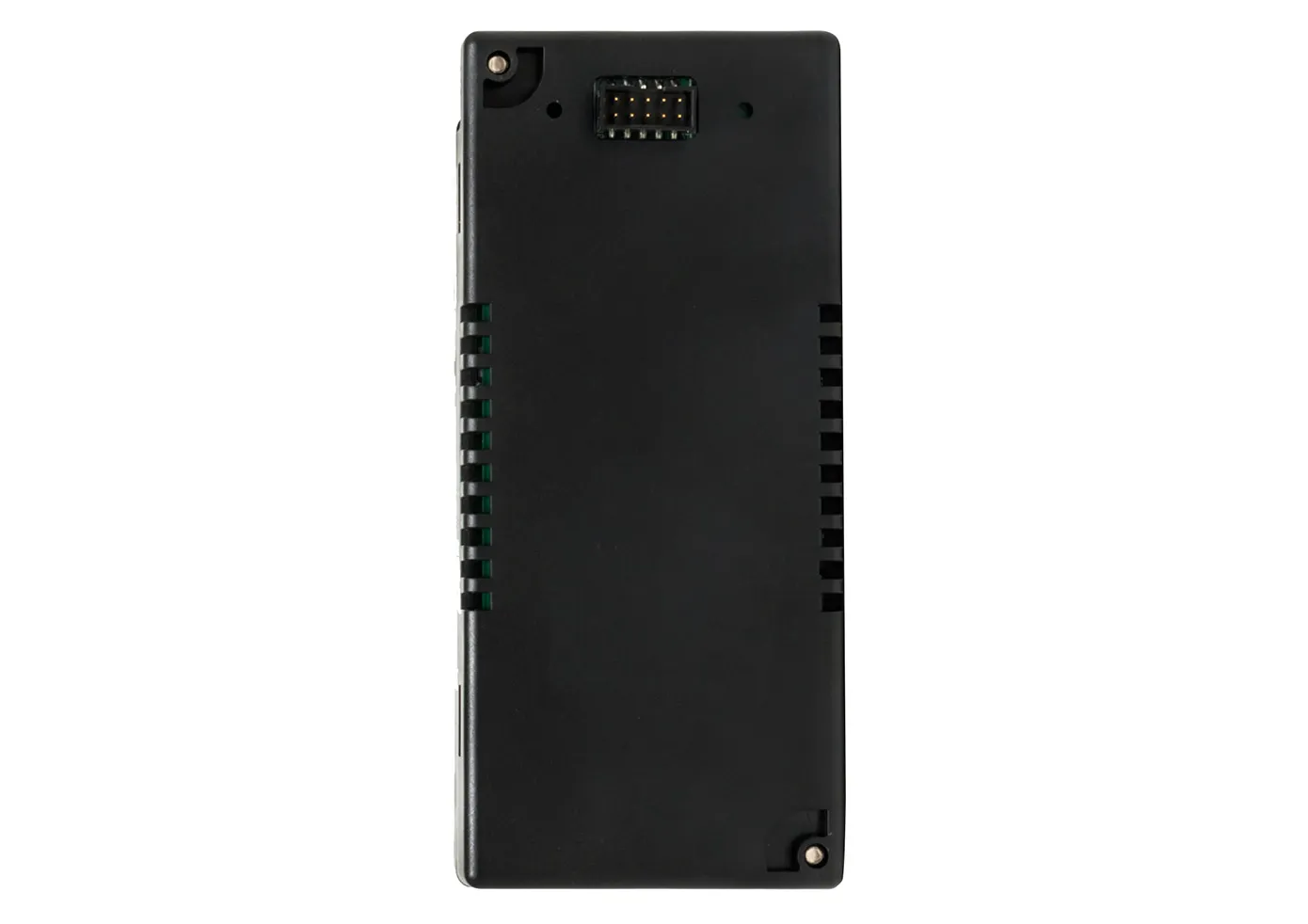

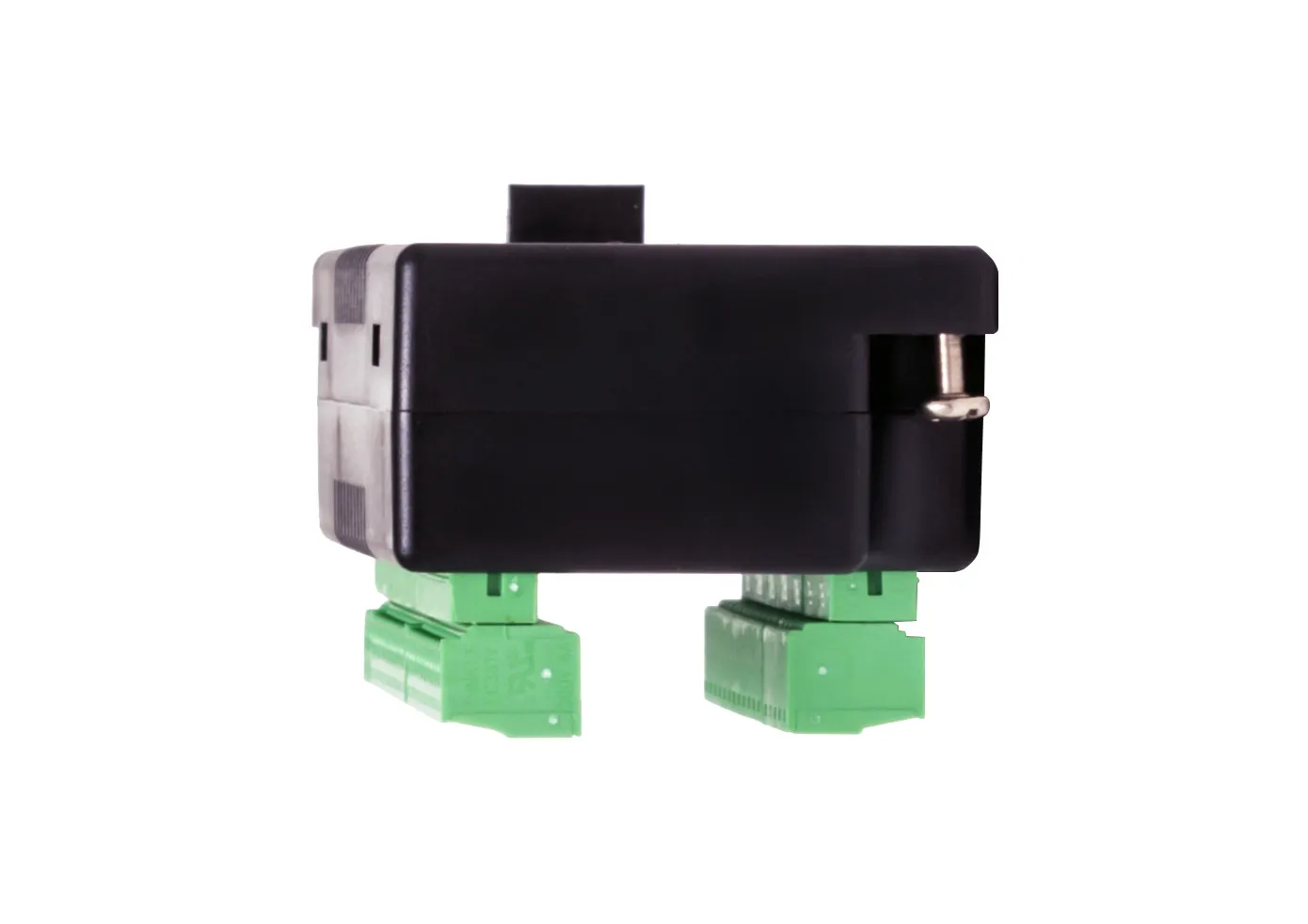

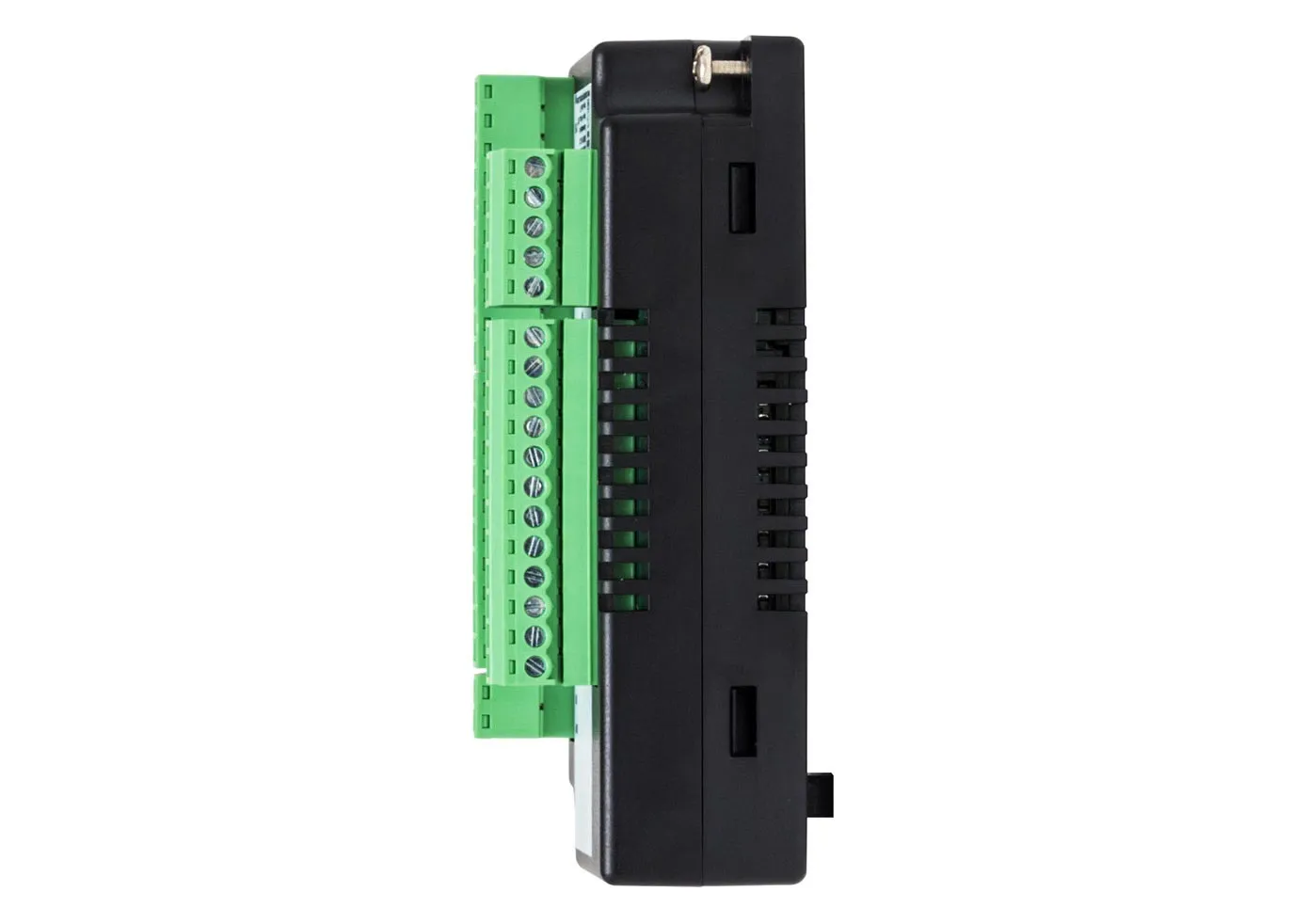

I/O Module | 16 Bi-Directional Digital Inputs, 16 PNP Digital Outputs

Name: I/O Module | 16 Bi-Directional Digital Inputs 16 PNP Digital Outputs HMC3-M1616P-V2
SKU: HMC3-M1616P-V2
Availability: InStock

$190.00

As part of the HMC2000 and HMC4000, this Digital I/O module expands the capabilities of the HMI for increased PLC functionality. Mix and match additional I/O modules to meet your unique project needs. 16 DI, 16 DO

Compare to similar Expansion Modules

HMI+PLC Training videos offering step by step instructions.
HMI+PLC Sample projects to jumpstart your familiarity with Mapware7000.
US-based technical support.

HMC3-M1616P-V2 Highlights

16 Bi-Directional Digital Inputs (2 High Speed (Quadrature, Standard))
16 PNP Digital Outputs (1 PWM (Normal, CW/CCW, Pulse/Direction and Fixed Pulse))
Class I, Division 2 Rated

View Datasheet Download Software

Datasheet 3D CAD File

Power Supply

Voltage Rating	24VDC (±15%), 12V from base
Power Rating	Input/channel: 24VDC, 5mA typical Output/Channel: 250mA @ 24VDC
Isolation	Optical Isolation for all I/O points. High isolation voltage (BV= Greater than 1.5 KV)

Digital I/O

High Speed Inputs (HSC)	2 pairs
Max Input Frequency (HSC)	200kHz
High Speed Output (PWM)	1
Max Output Frequency (PWM)	1kHz
Number of Inputs	16 Inputs Bi-directional Type
Input Design	According to EN 61131-2 Type 1
ON Voltage	Min.: 15VDC, Max.: 30VDC
OFF Voltage	Min.: -3VDC, Max.: 5VDC
Nominal Input Voltage	24VDC
Nominal Input Current	5mA typical
Input Response Time	ON: 10msec, OFF: 10msec
Input Impedance	4.8 KΩ
Number of Outputs	16 PNP type transistor outputs
ON Output Voltage	Min ON: 22VDC, Max. ON: 30VDC (Voltage across load)
Nominal Output Voltage	30VDC
Nominal Output Current	250mA type/channel
Output Response Time	ON: 10msec, OFF: 10msec
Accuracy	± 0.2% of full scale @ 25°C

Analog I/O

Analog Input Total Channels	N/A
Input Type	N/A
Analog Output Total Channels	N/A
Output Type	N/A
Accuracy	N/A

Environmental

Operating Temperature	0 to 60°C
Storage Temperature	-20 to 85°C
Humidity	10 to 90% (Non-Condensing)
Short Circuit Protection	Yes
Product Dimensions	48mm x 108mm x 35.7mm (W x H x D)

Certification

Class 1 Div 2	Yes
Approvals	CE, UL
