cMT3162XiV
- Secondary Display for cMT devices
- Built-in cMT Viewer
- Capacitive Touchscreen Technology
- Pair with our cMT Series HMIs or our Headless HMIs
- UL Listed, NEMA4 Rated
- IP66 Rated for Washdown Environments
- 1920 x 1080 Pixel Resolution
+
+
Total price: N/A
15.6" Secondary Display for cMT Devices
cMT3162XiV
$1,200.00
- Secondary Display for cMT Devices – Display Only
Our 15.6″ capacitive touch cMT3162XiV display only unit has a fanless cooling system, NEMA4/IP66 rating, and a PCB coating, making this an ideal secondary display for harsh environments.
- No project installation necessary
- Easy to connect

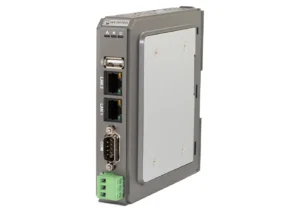

- Can be paired with any cMT Series HMI, including cMT-SVRX and cMT-FHDX headless models
- Up to 10 display only units can access the same project at once, further reducing programming and installation time
- Compatible with EasyAccess2.0 and cMT Viewer, enabling access from anywhere with an internet connection
Share the product:
Review this product
Share your thoughts with other customers about this product
System
| CPU | Quad-Core RISC |
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
I/O Ports
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | Built-in Mono Speaker |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
Display
| Display Size | 15.6" WVA LCD |
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 300 |
| Contrast Ratio | 800:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.2 M |
| Display Type | 15.6" WVA LCD |
| Viewing Angle (H°/V°) | 178/178 |
| Size (W x H) | 13.60 x 7.68 inches [345.6 x 195 mm] |
Touch Screen
| Type | Tempered Glass, Projected Capacitive, Vibrational Feedback |
| Touch Panel Hardness Scale | 7H |
Electrical
| Input Power | 31.2 W |
| Power Isolation | Built-in |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1.3 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Front bezel: Plastic, Rear Enclosure: Aluminum |
| PCB Coating | Yes |
| Dimensions WxHxD | 15.75 x 10.35 x 1.03 inches [400 x 263 x 26.1 mm] |
| Panel Cutout (inches) [mm] | 15.12 x 9.72 [384 x 247] |
| Weight | Approx. 3.53 lbs. [1.6 kg] |
| Mounting | Panel mount, VESA 100 x 100 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| CE UKCA | Yes |
| UL Type Rating | cULus |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| RoHS | Yes |
Unboxing a cMT3162XiV
We'll show you what comes in the box, the I/O ports, pair it with a headless HMI and show you how they can be used together
Customers who bought this product also bought:
-
Screen Protector, 15.6” (343mm x 193mm) 1 each.$35.00 -
5 Port Unmanaged Industrial Network Switch$100.00 -
EasyAccess 2.0 Activation Card for Remote Access$99.00 -
Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.$50.00 -
Input power connector$7.00 -
Mounting Clips Kit for cMT/HMI series (4 per set).$12.00
When you order the cMT3162XiV the following items are included in the box:
- cMT3162XiV
- Quick Start Guide
- Warranty Statement
- 1 x Power Connector
- 12 x Mounting Clips
