Getting Started

Unpacking the Unit

Carefully unpack the Industrial Box PC. Check all material in the container against the packing list. Maple Systems will not accept responsibility for shortages against the packing list unless notified within 30 days. The equipment and accessories were inspected and tested by Maple Systems before shipment.

Examine the equipment carefully; if any shipping damage is evident, notify the carrier immediately. Maple Systems is not responsible for claim negotiations with the carrier.

Save the shipping container and packing material in case the equipment needs to be stored, returned to Maple Systems, or transported for any reason.

Packing List
IPC2115A Series Industrial Box PC unit
VESA Mounting Kit (VESA plate, 4x standoffs, 4x 75mm VESA Screws)
24 VDC to 12 VDC Step Down Power Converter (Up to 10A, 120W)
DIN Rail Mounting Kit for Step Down Power Converter
DC Power Cable
12-Pin GPIO Terminal Connector & Remote Power Switch Connector
Warranty Statement Insert

Safety Precautions

Please observe the following precautions when installing the Industrial Box PC Series. Failure to comply with these restrictions could result in loss of life, serious personal injury, or equipment damage.

Warning icon showing an exclamation mark inside a triangle.

Warning: Disconnect this equipment from any power before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth.

Warning icon showing an exclamation mark inside a triangle.

Warning: Keep this equipment away from humidity.

Warning icon showing an exclamation mark inside a triangle.

Warning: Before applying power the unit make sure the voltage of the power source is within the input voltage rating of the unit (12 VDC).

Warning icon showing an exclamation mark inside a triangle.

Warning: Never open the equipment and do not operate equipment with its heatsink cover removed- there are dangerous high voltages present inside. For safety reasons, the equipment should be opened only by a qualified service technician.

Warning icon showing an exclamation mark inside a triangle.

Warning: This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction’s manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Warning icon showing an exclamation mark inside a triangle.

Warning: If any of the following situations arise, get the equipment checked by qualified service personnel.

  • The power cord or plug is damaged.
  • Liquid has penetrated into the equipment.
  • The equipment has been exposed to moisture.
  • The equipment does not work well, or you cannot get it to work according to this operations manual.
  • The equipment has been dropped and damaged.
  • The equipment has obvious signs of breakage.
Warning icon showing an exclamation mark inside a triangle.

Warning: Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.

Warning icon showing an exclamation mark inside a triangle.

Warning: Do not leave this equipment in an uncontrolled environment where the storage temperature is below -20°C (-4°F) or above 70°C (158°F). It may damage the equipment.

Overview of IPC2115A

The IPC2115A Series Industrial Box PC is powerful yet fanless, powered by the Intel® Quad-Core Alder Lake-N® N100 processors running up to 3.4GHz. Memory options include 8 GB to 16 GB of DDR5 SO-DIMM RAM. Solid State Drive options include sizes from 128 GB to 2 TB.

IPC2115A Series units feature I/O ports on both the front and rear panels. The front panel provides the power button, 2 DE-9P Serial ports (2x RS232/485 configurable),1 12 pin GPIO connector, 3 USB 2.0 ports, and 1 USB 3.0 ports.

Rear panels feature 3.5mm Headphone Out and Mic-in ports, 4 USB 2.0 ports, 2 Gigabit LAN ports, 4 DE-9P Serial ports (4x RS232), 2 HDMI 2.0 output ports, and a 12 VDC Power input jack.

All IPC2115A Series units can be equipped with an optional Wi-Fi kit, enabling access to existing 802.11a/b/g/n/ac/ax wireless networks and Bluetooth 5.2 support. Wireless antennas are mounted to the rear panel when the Wi-Fi option is chosen.

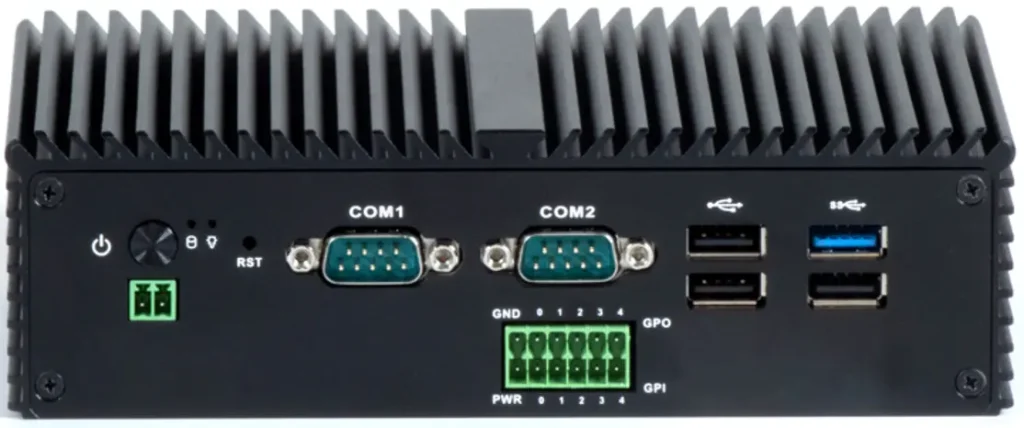

Front panel view of the IPC2115A Industrial Box PC showing the power button, COM1 and COM2 serial ports, GPIO connector, USB 2.0 ports, and USB 3.0 port.
Front Panel view of IPC2115A

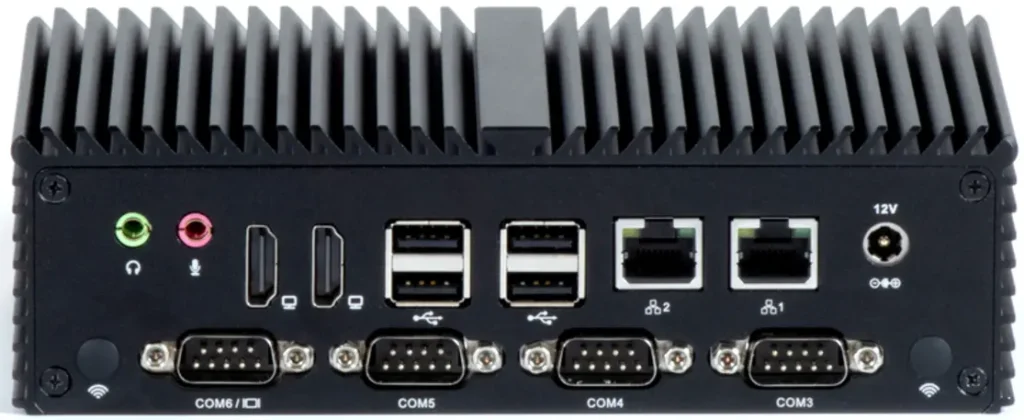

Rear panel view of the IPC2115A Industrial Box PC showing audio ports, USB ports, Ethernet ports, HDMI outputs, serial ports, power input, and optional wireless antenna connections.
Rear Panel view of IPC2115A

External Monitors & Mounting

External Monitors

IPC2115A Series units operate with an external display or touch-capable monitor via HDMI interface. This flexibility greatly enhances the options for usage in the field; the monitor (or monitors) can be in a completely different room than the Industrial Box PC if needed. Touch screen monitor functionality may require installation of drivers – consult your monitor’s documentation.

Since the Industrial Box PC units run the Microsoft Windows® family of Operating Systems (Linux® Ubuntu® OS options are also available – contact Maple Systems for more details), users will see a familiar operating environment and usage. Windows® allows for many customizable viewing options; multiple monitor functionality, duplicate desktop / desktop extension, desktop rotation and more.

Maple Systems offers several monitor options that seamlessly integrate with your Box PC – visit our website at www.maplesystems.com or contact your Maple Systems Sales Engineer for additional information.

Industrial Box PC Mounting

The Box PC can be VESA mounted using the four (4) threaded holes located on the unit’s bottom plate. Maple Systems provides four (4) threaded standoffs for attachment of the IPC2115A to the VESA mounting plate. Simply attach the threaded standoffs to the bottom plate of your unit, secure the VESA plate to your selected VESA-75 or VESA-100 mounting fixture, and then align the standoffs to the VESA plate and slide down to secure.

Please note that Maple Systems provides the mounting bracket and hardware. Use mounting hardware appropriate to and suitable for the application; Maple Systems is not responsible for damage to unit, mounting surface or any other components caused by improper mounting.

Mounting example shown below illustrates mounting your IPC2115A unit to the back side of a Monitor, but the same process applies to VESA stand mounts.

Step-by-step mounting illustration showing installation of the supplied threaded standoffs into the bottom plate of the IPC2110A. Arrows indicate the direction the standoffs are inserted and tightened into the threaded mounting holes.
Installing the standoffs to the bottom plate of the IPC2110A
Step-by-step mounting illustration showing installation of the supplied VESA plate. Arrows indicate the direction the screws are inserted and tightened to secure the plate to the VESA mounting scheme (75 or 100 mm) of the monitor
Installing the VESA plate to the back of a monitor
VESA mounting illustration showing the mounting plate attached to the rear of a monitor and the IPC2110A being aligned and slid into position on the mounting plate. The sequence demonstrates final installation of the Industrial Box PC onto the monitor-mounted VESA bracket.
Aligning the standoffs with the mounting plate

Please note that Maple Systems only provides the mounting bracket; hardware to mount the bracket to your selected VESA fixture is not included. Use mounting hardware appropriate to and suitable for the application; Maple Systems is not responsible for damage to unit, mounting surface or any other components caused by improper mounting.

I/O Ports

Front Panel

Two Stacks of two USB type A ports, illustrated black and white.

USB 2.0 x3 (Left Stack + Lower Right)
USB 3.0 x1 (Upper Right)

USB 2.0 Type A Host Ports – Maximum transfer speed 480Mbps

USB 3.0 Type A Host Ports – Maximum transfer speed 5.0GB/s

Black and white illustration of a DE-9 Serial Port connector showing the 9 pins.

SERIAL DE-9P
COM1 / COM2

Pinout Configuration RS-232 by default

Pin #COM1 / COM2
RS232 (Default)
RS485* (Optional)
1DCDData-
2RXDData+
3TXDNC
4DTRNC
5GNDGND
6DSRNC
7RTSNC
8CTSNC
9RINC

* Refer to “Setting Serial COM Function” section to set the communication mode.

Black and white illustration of the General Purpose Input/Output (GPIO) connector on the IPC2115A

General-Purpose Input/Output (GPIO)

4 general-purpose output (GPO) and 4 general-purpose input (GPI)

Rear Panel

Illustration of the headphone (green) and microphone input (pink) 3.5mm audio jacks.

HEADPHONE OUT / MIC IN

3.5mm Audio Jacks

Two Stacks of two USB type A ports, illustrated black and white.

USB 2.0 x4

USB 2.0 Type A Host Ports – Maximum transfer speed 480Mbps

IPC2110A features 2 x Gigabit (10/100/1000 Mbps) LAN ports, standard RJ45 connector

LAN1 AND LAN2

Standard Gigabit RJ-45 Ethernet ports

Illustration of HDMI 1.4 connector with pin diagram, showing the outline of the connector and the location of pins 1,2, 18 and 19

HDMI® 2.0 x2

High Definition 4K resolution output – Maximum resolution of 4096 x 2160 pixels @60Hz

Black and white illustration of a DE-9 Serial Port connector showing the 9 pins.

SERIAL DE-9P
COM3 / COM4 / COM5 / COM6

Pinout Configuration RS-232 by default

Pin #COM3 / COM4 / COM5 / COM6
RS232
1DCD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI

Setting Serial COM Function

The IPC2115A Series’ COM1 and COM2 Serial Ports are configured by default for RS232 operation, but can be configured for RS485 (2-wire) operation if so desired. COM port configuration is managed through the BIOS; see the below table for instructions on changing COM port mode.

Note: COM3, COM4, COM5, and COM6 are exclusively configured for RS232 operation, COM1 and COM2 are the only ports that can be configured for RS485 operation.

How to change Serial Port COM Mode

Follow these steps to change COM1 and COM2 mode between RS232 and RS485 if desired.

Instructions: How to change Serial Port COM Mode
  1. Enter BIOS menu

    Boot the PC up and press the [DEL] or [F2] key to enter the BIOS Main Menu.
  2. Go to Advanced submenu

    At the BIOS Main Menu, press the right arrow key for the Advanced submenu.
    BIOS Setup Utility screen with the Advanced tab selected, showing system configuration options including IT8786 Super IO Configuration, CPU Configuration, and USB Configuration. A red oval highlights the Advanced tab.
  3. Open the Super IO Configuration Menu

    Select the IT8786 Super IO Configuration menu.
    BIOS Setup Utility screen with IT8786 Super IO Configuration highlighted under the Advanced tab. A red oval identifies the selected menu option.
  4. Select UART Configuration

    Select the UART 1 or 2 Configuration menu option and press the Enter key.
    We have UART 1 Configuration currently highlighted
    BIOS IT8786 Super IO Configuration screen with UART 3 Configuration highlighted. A red oval identifies the selected menu option for configuring COM3 serial port settings.
  5. COM Control

    Select the COM Control Option that corresponds with the COM port
  6. Choose RS232 or RS485

    Select the [RS232] or [RS485] option, depending on your desired port configuration and press the Enter key.
    COM3 is RS232 by default.
    BIOS COM3 Control menu showing the available communication mode options: RS232 and RS485. The selection menu is open for configuring the COM3 serial port.
  7. Save and Exit BIOS

    Press the F10 key to save and exit.
    Make sure to SAVE changes before exiting the BIOS. The F10 key brings up the save option.
    BIOS Save & Exit screen showing a confirmation dialog asking "Save & reset?" with Yes selected. The screen is used to save configuration changes and restart the system.

Operating System Options

Windows® 10 IoT Enterprise LTSC

Windows® IoT Enterprise LTSC is a full Professional version of Windows® 10 available on all Industrial Box PC models. This powerful operating system delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long-Term Servicing Channel (LTSC) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps with all Windows OS options:

  • Microsoft Edge Web Browser
  • LibreOffice Suite (Compatible with the following document types:)
    • MS Word
    • MS Excel
    • MS PowerPoint
    • Adobe PDF
  • Media Player

Windows® 11 IoT Enterprise LTSC

Windows® IoT Enterprise LTSC is a full Professional version of Windows® 11 available on all Industrial Box PC models. This powerful operating system delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long-Term Servicing Channel (LTSC) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps with all Windows OS options:

  • Microsoft Edge Web Browser
  • LibreOffice Suite (Compatible with the following document types:)
    • MS Word
    • MS Excel
    • MS PowerPoint
    • Adobe PDF
  • Media Player

LINUX® UBUNTU® SERVER / DESKTOP

Linux® Ubuntu® Server is perfect for web interface and other server type application; this option saves hard drive space by skipping the desktop.

Linux® Ubuntu® Desktop includes the intuitive Gnome desktop environment and is great for display panels, kiosk applications, or for those that prefer the ease of use of a desktop interface.

For a Quick Setup Guide outlining the initial setup process of the Ubuntu® OS equipped Box PCs, see the Linux® / Ubuntu® Quick Start section below.

LINUX® / UBUNTU® Quick Start

This section is not meant as a detailed guide to the intricacies of the Linux® Operating System. The scope of this section is for initial setup purposes of your new Maple Systems Industrial Box PC unit.

Initial Setup

To complete the setup requires the following:

  • Monitor (HDMI or DisplayPort connection)
  • USB Keyboard
  • (Server OS Only: TCP/IP network with a DHCP server)
  • (Server OS Only: An external computer on the same subnet of the box pc with SSH enabled terminal emulator)

Server OS

It is recommended to create a regular user account with access to the sudo command to perform administrative tasks. Maple Systems STRONGLY RECOMMENDS at minimum changing the password from the default.

Power up and log in:

Connect the monitor, USB Keyboard, Ethernet Cable and power supply to the Box PC. Once the login prompt is displayed enter the following credentials:

Username: root

Password: 111111

This will log you in as the root user. The root user has complete access to the system. To change the root user’s password, enter:

# passwdCode language: PHP (php)

Follow the prompts to complete the password change process.

Add New User:

Use the adduser command:

# adduser <username>Code language: HTML, XML (xml)

Follow the prompts to give the new user a password and other information. To grant the new user sudo privileges enter:

# usermod -aG sudo <username>Code language: HTML, XML (xml)

Now logout (# logout) and enter the credentials for the new user. Make sure that the new user can execute commands with sudo. Try:

$ sudo ls -la

This should prompt for the password and then print the contents of the new user’s home directory.

Access and Password Management for Root User:

For security and better tracking, disabling direct login for the root user is recommended. To do this enter:

$ sudo passwd -l root

To retain (or re-enable) access to the root login, run:

$ sudo passwd

Follow the prompts to set a new password for root. You can then logout and login as root using the new password.

Localization

By default, the system is set to Pacific Time (America/Los_Angeles). To change to a different time zone, enter:

$ sudo timedatectl set-timezone <time zone>Code language: HTML, XML (xml)

Where <time zone> is the zone to use. To get a list of available zones use:

$ timedatectl list-timezonesCode language: PHP (php)

After updating, the current settings can be printed with:

$ timedatectl

Setting the PC Hostname

The hostname is set to bpc, to update this run:

$ sudo hostnamectl set-hostname
<new hostname>Code language: HTML, XML (xml)

To print the updated hostname run:

$ hostnamectl

You will need to logout and back in to see the new name on the terminal.

Software Updates

To install any software updates, enter:

$ sudo apt update && sudo apt upgrade

Use:

$ sudo apt install <package name>Code language: HTML, XML (xml)

to install new software.

SSH Access

Accessing the server can be done over the network using the preinstalled Open SSH Daemon. You will need to know what IP address has been assigned to the PC to access it. Print the network settings with:

$ ip a

Note the ipv4 address (inet) for the interface you are going to use. You can then log in via SSH from any networked computer that has a terminal emulator and SSH client. Simply enter:

$ ssh <username>@<ip address>Code language: HTML, XML (xml)

Where <username> is for the user created above. The system will ask for the password, display a login message and provide another prompt. Commands can be entered on the networked device as if being run locally on the server.

Desktop OS

Initial Setup

Connect the monitor, USB Keyboard, and power supply to the Industrial Box PC. The Ubuntu® Automatic Setup Wizard will begin. Follow the on-screen prompts to complete the setup process.

Display Configuration

  • Right-click on the desktop and select Display Settings.
  • Select Display Mode in this new window, and select the Single Display tab.
  • There are two display options on this tab; select the display the PC is physically connected to and ensure the resolution settings match the monitor’s optimal settings.
  • Click Apply, the screen will flicker and adjust to the new settings.

Serial Port Names

See the below table to cross reference the names of the DE-9 Serial Ports on your PC:

PC Chassis LabelIPC2115A
COM1:Ttys0
COM2:Ttys1
COM3:Ttys2
COM4:Ttys3

Touchscreen

  • Capacitive touchscreen monitors are supported by Ubuntu® in single-touch configuration.
  • Resistive touchscreen monitors may require touch calibration to be performed on system startup.

Troubleshooting

Driver Installation (Windows OS Only)

Your Box PC comes with all necessary drivers pre-installed. As such, driver installation is not normally needed. However, there may be times when a driver requires re-installation. If a driver re-installation is required, please visit the Support Center of the Maple Systems website for driver download instructions.

Windows® Operating System Updates or Reinstallation

In the event that you wish to update your Windows Operating System (Non-Embedded Operating Systems only), simply connect the Box PC to the Internet and run the Windows Update utility.

In the unlikely event of a system failure requiring reinstallation of the Windows Operating System, you can reinstall Windows as it arrived to you from Maple Systems. For OS recovery installation media, please contact your Maple Systems Sales Engineer.

After OS reinstallation, you will need to re-activate Windows using the Product Key located on the bottom panel of your PC, adjacent to the product label.

Embedded Operating Systems do not allow for OS reinstallation; in the extremely unlikely event the Windows OS needs to be reinstalled, contact your Maple Systems Sales Engineer for instructions on obtaining a Return Material Authorization (RMA) form.
